product 3 color automatic screen printing press machine with all stuff-0

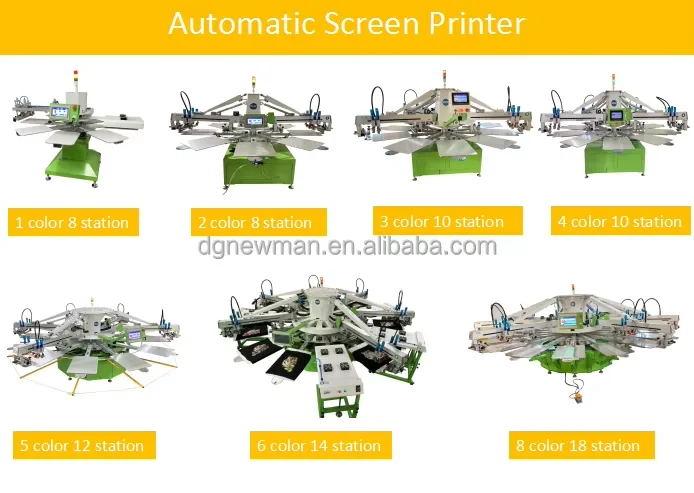

Automatic Screen Printer

Home >  Products >  Automatic Screen Printer

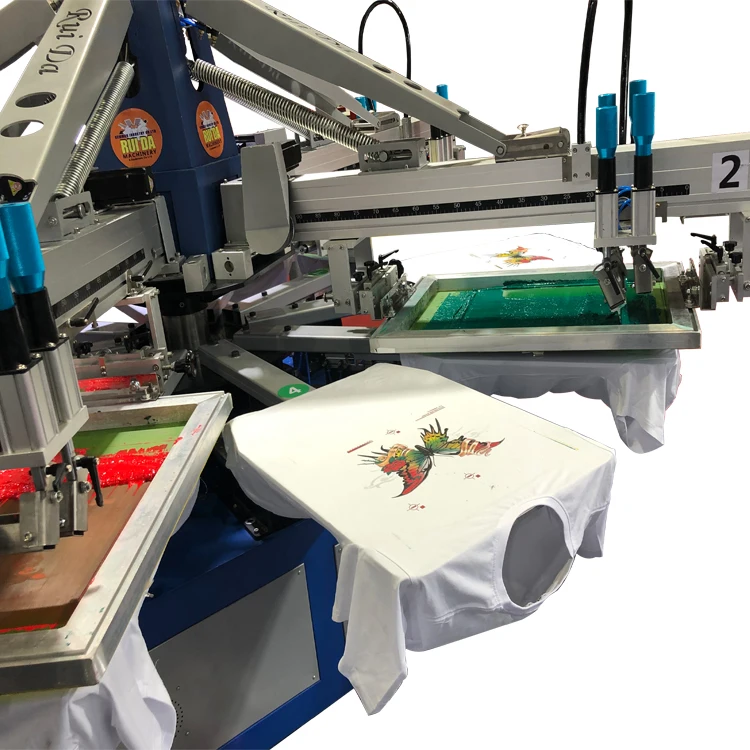

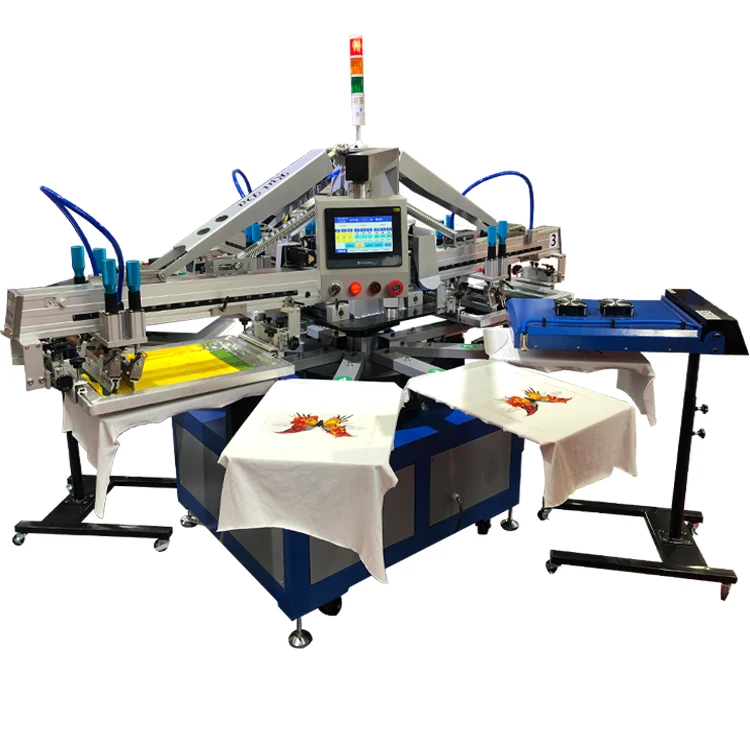

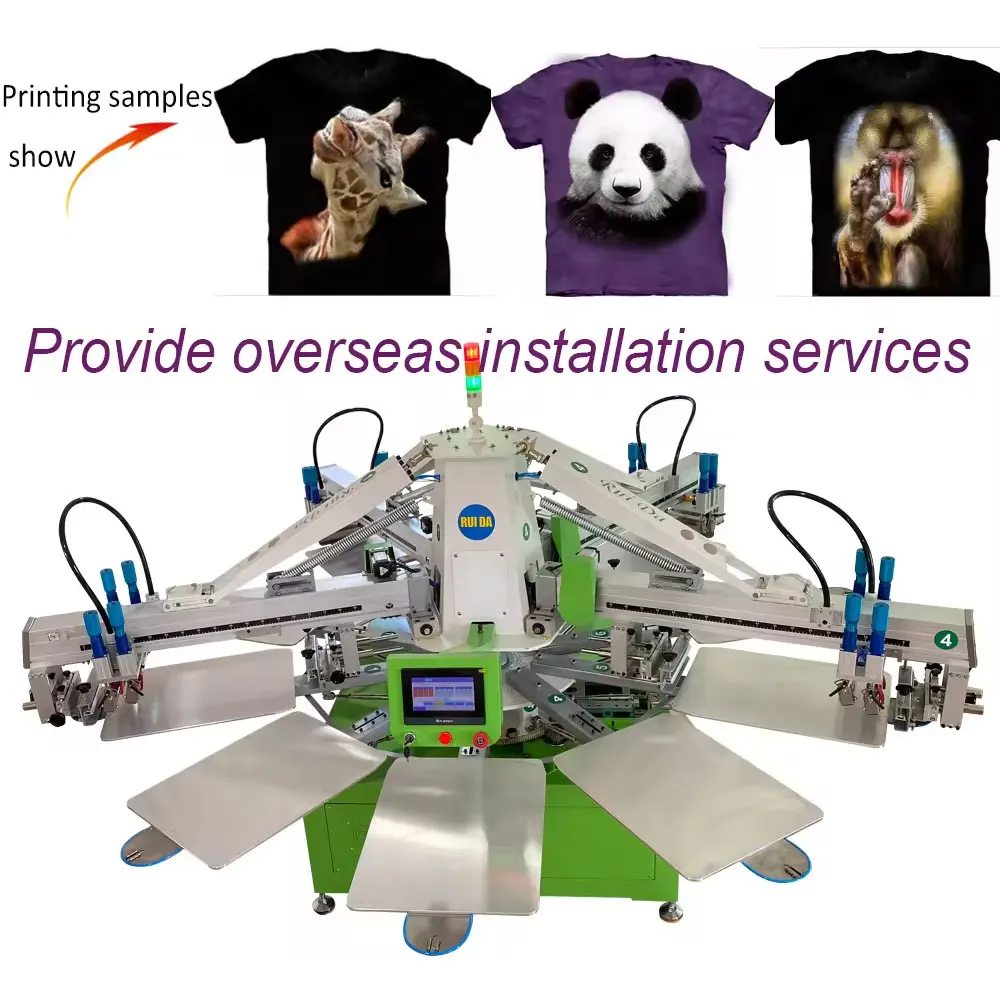

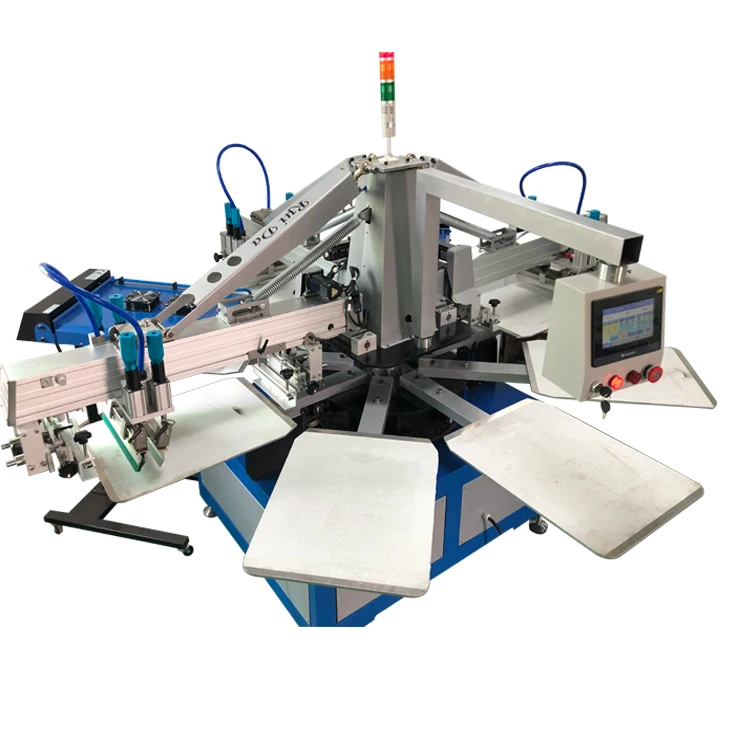

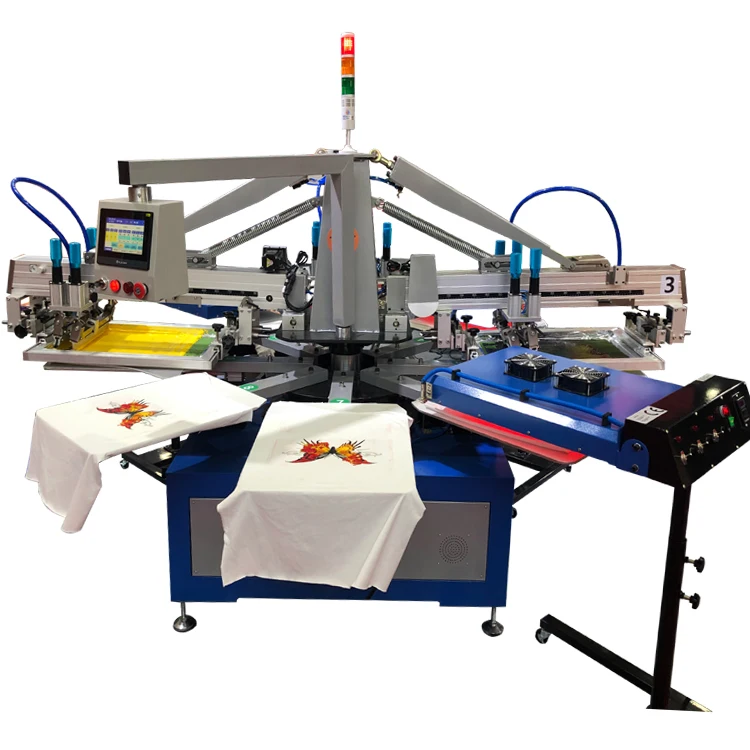

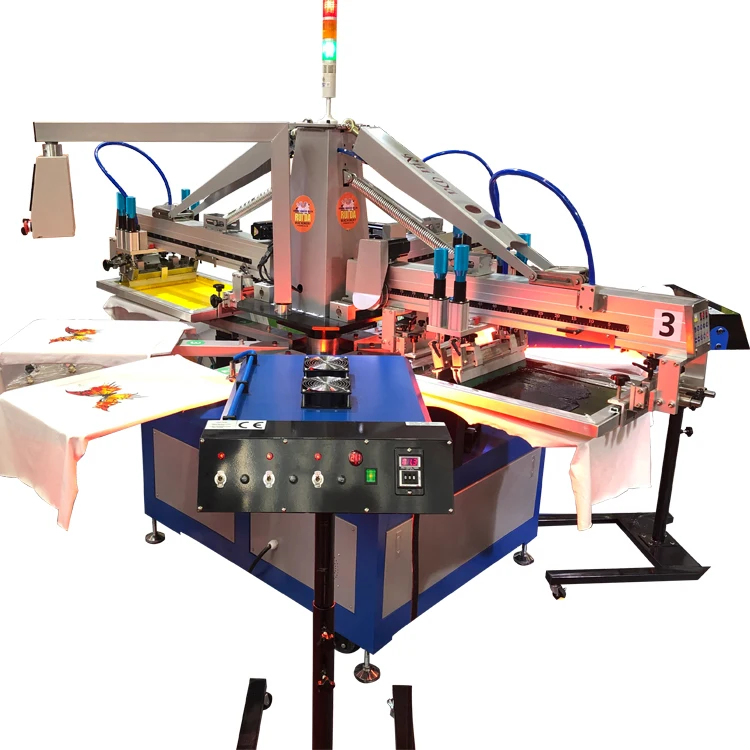

3 Color Automatic Screen Printing Press Machine With All Stuff

Take your printing business to the next level with this professional-grade 3 Color Automatic Screen Printing Press Machine.  Perfect for printing on t-shirts, garments, textiles, and various flat surfaces, this machine delivers precise color registration and exceptional print clarity.  Ideal for both small printing shops looking to expand and established businesses seeking to boost productivity.

  • Overview
  • Related Products
Product Description
product 3 color automatic screen printing press machine with all stuff-1
product 3 color automatic screen printing press machine with all stuff-2
product 3 color automatic screen printing press machine with all stuff-3
product 3 color automatic screen printing press machine with all stuff-4
product 3 color automatic screen printing press machine with all stuff-5
product 3 color automatic screen printing press machine with all stuff-6
product 3 color automatic screen printing press machine with all stuff-7
product 3 color automatic screen printing press machine with all stuff-8
product 3 color automatic screen printing press machine with all stuff-4
Model
NM-3010
Color
3 color
Pallet area
10 station
Power
2.2KW
Voltage
220V
Phase
3PH/2PH
Pallet size
450x600mm
Max frame size
500x700mm
Packing Size
2100*2700*1800mm
Weight
1000kg
product 3 color automatic screen printing press machine with all stuff-10
product 3 color automatic screen printing press machine with all stuff-11
product 3 color automatic screen printing press machine with all stuff-12

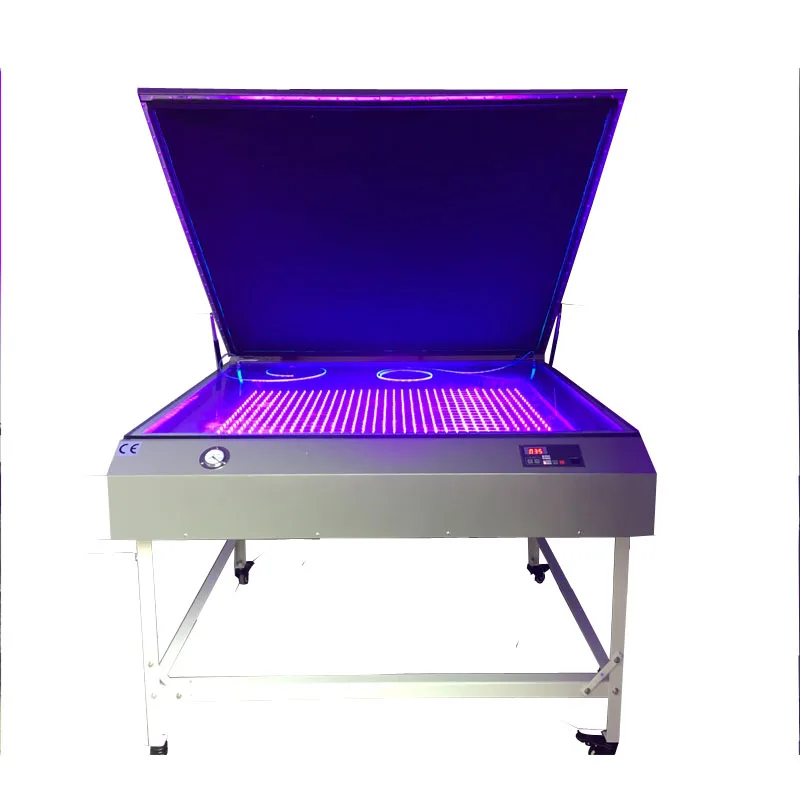

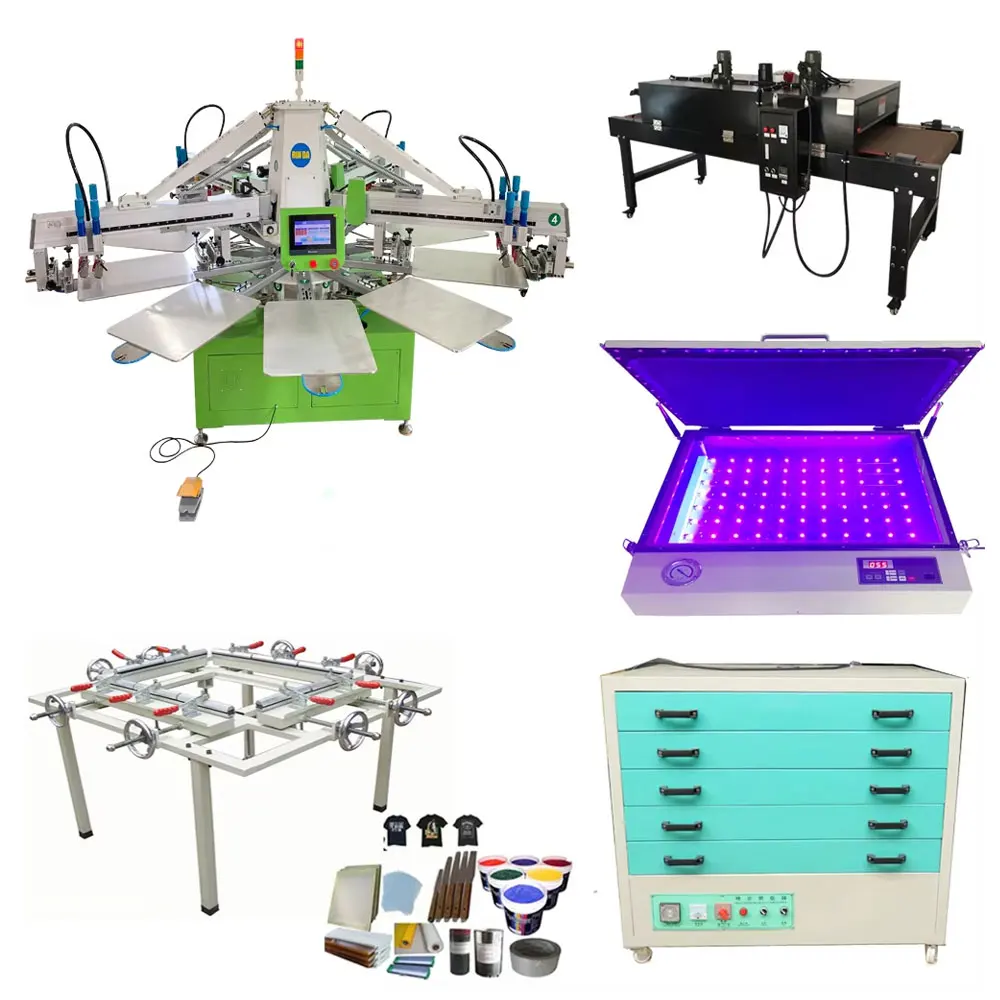

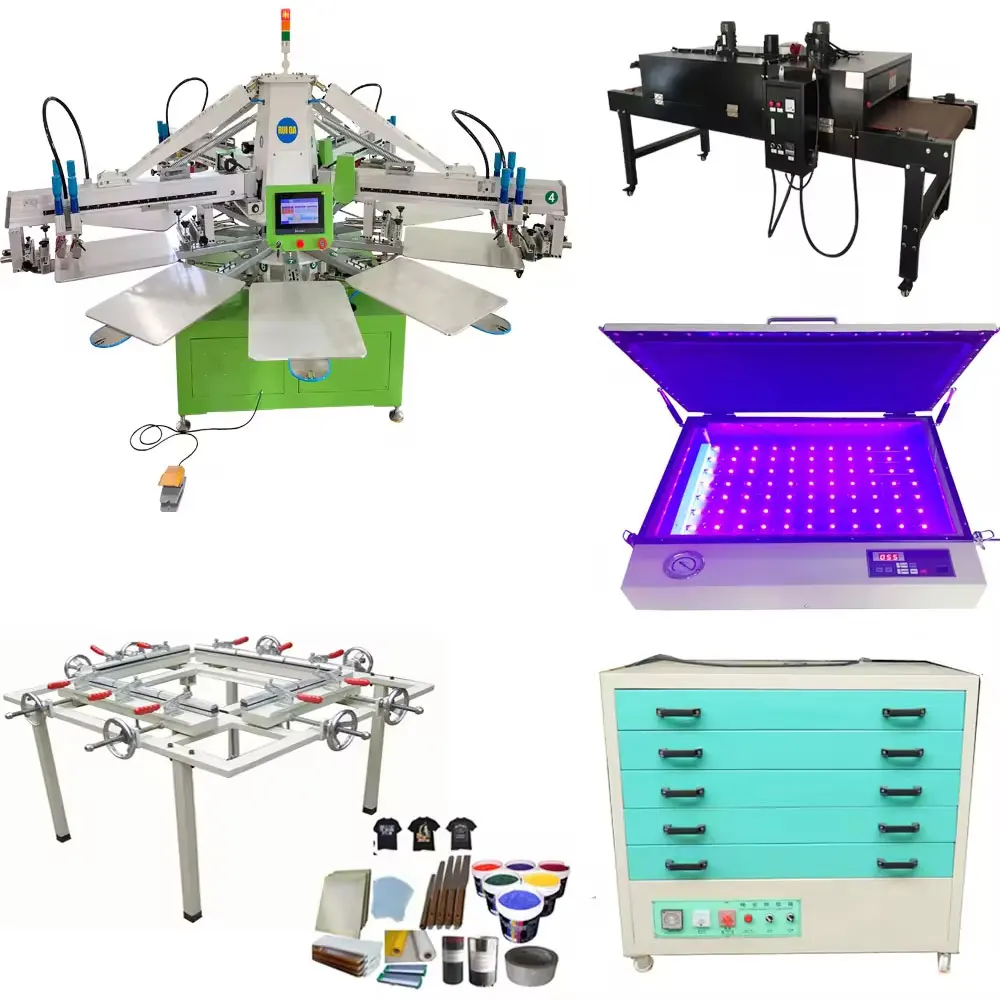

MD800 LED Vacuum Silk Screen Exposure UnitPower : 110V/220V/450WLight :LED lightMax Frame dimension : 600*900mmGross Weight : 115KGPacking : 1 plywood box (L119 x W94x H44cm)
product 3 color automatic screen printing press machine with all stuff-13

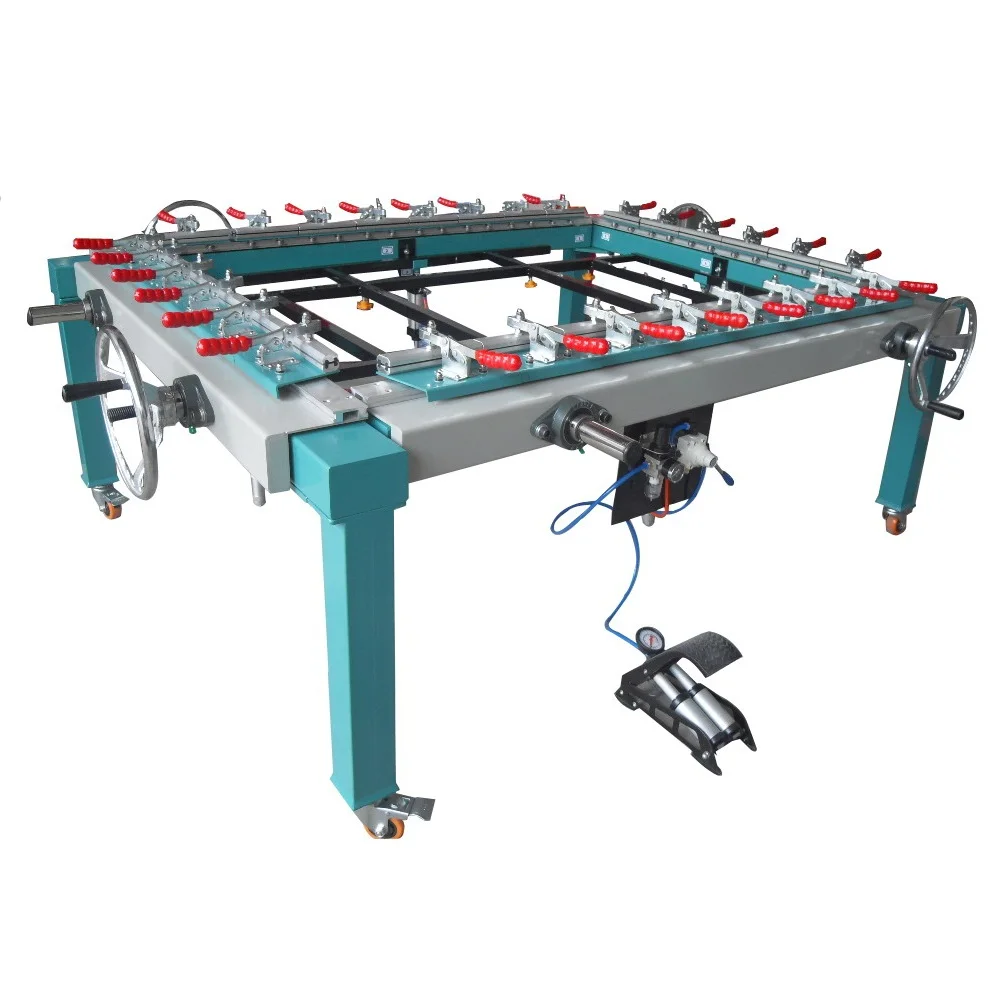

NA108 pneumatic screen stretcher Max area:1200*1500mm,net weight:150KGS, gross weight:195kgs,package:plywood case
product 3 color automatic screen printing press machine with all stuff-14

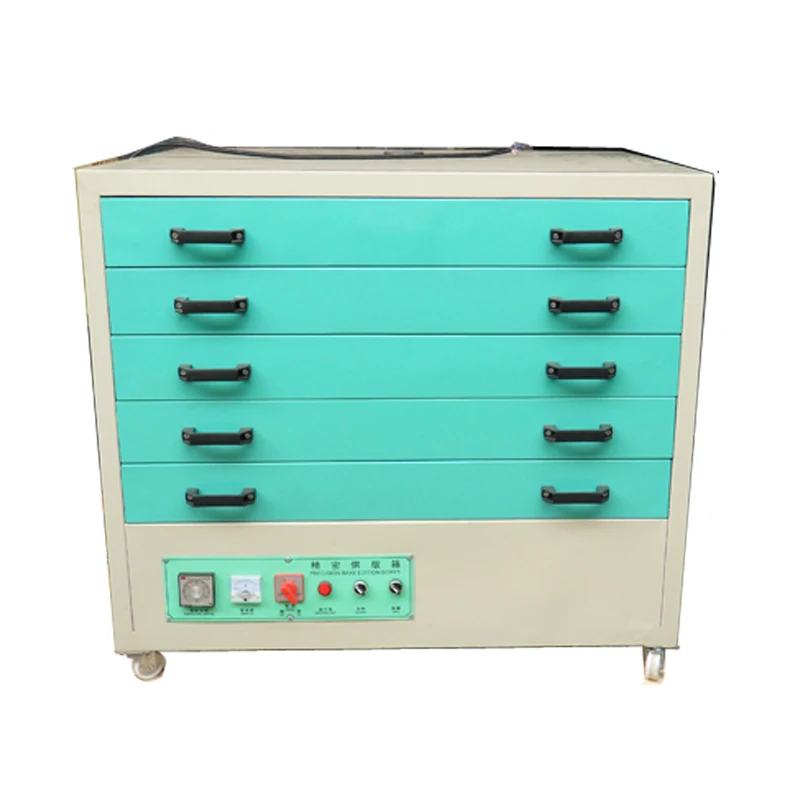

Big Drying CabinetPower : 220V, 2000WMax.screen plate drying quantity : 5pcsMax.frame size : 700*1000MM
product 3 color automatic screen printing press machine with all stuff-15
Description Automatic disc printing machine for all kinds of printing materials ,Glue,pulp,thick board,ink ,foaming , hot solid ink,rotten flowers,four color dot.Fabric fit pure cotton ,knitted cloth ,rainproof cloth,nylon cloth ,leather shoe material ,film,PVC,acrylic,foam board and so on.
Save labor and flower quality compared to manual printing quantity is more stable,and multi-color one-time completion can be achieved without affecting the output;the operation is more flexible ,increase the output and improve your competitiveness ,this machine only needs 2 people to operable.

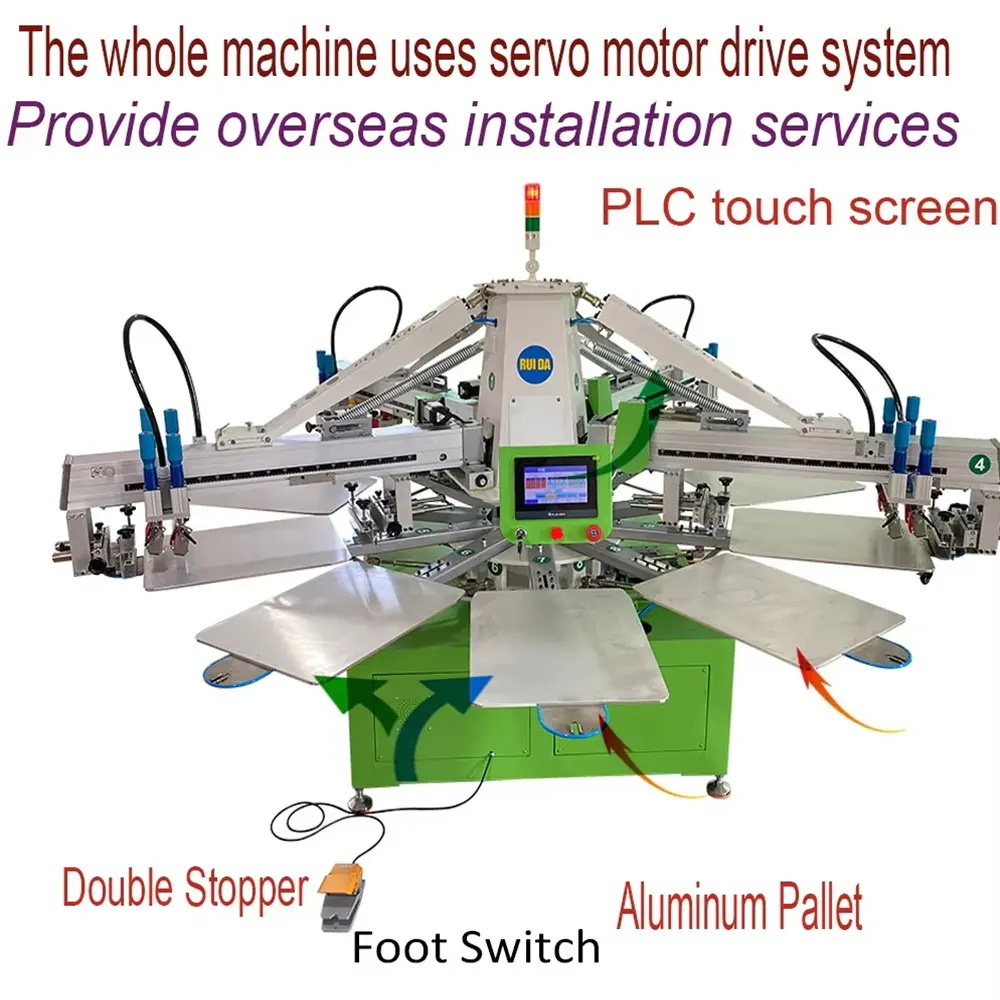

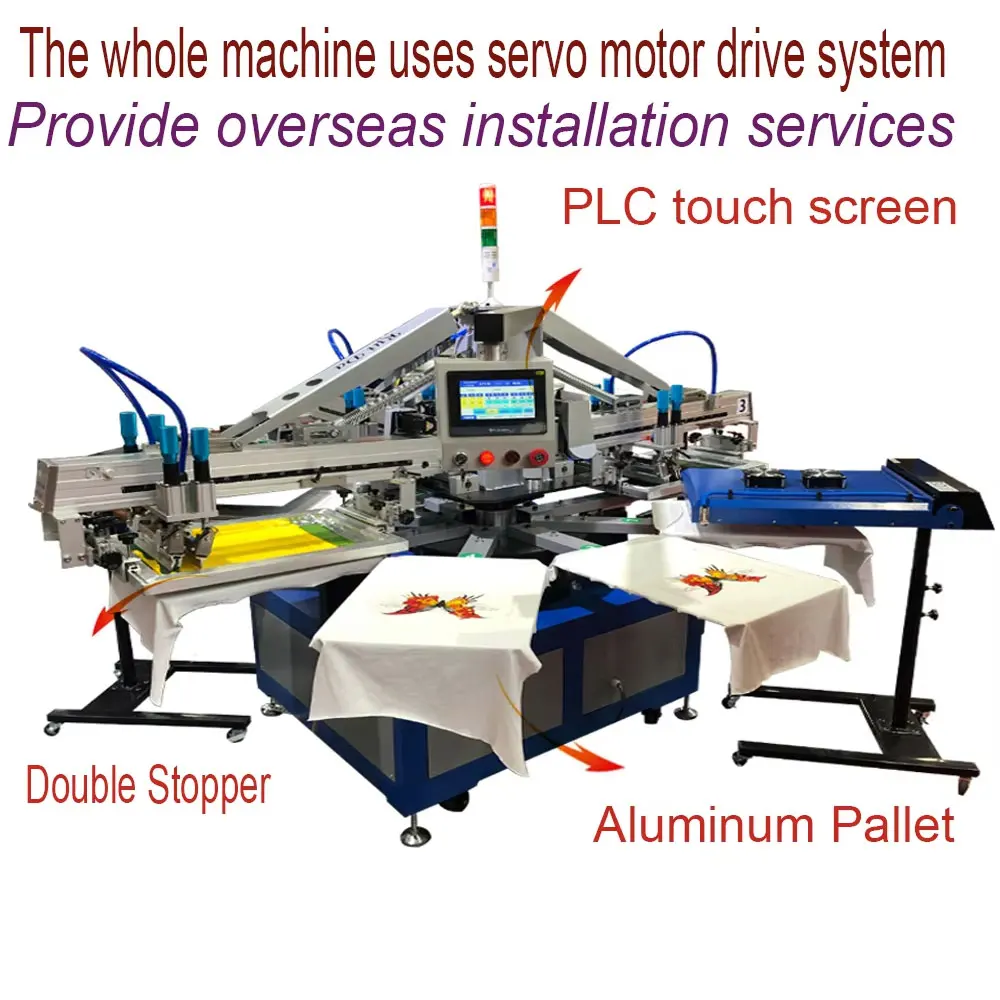

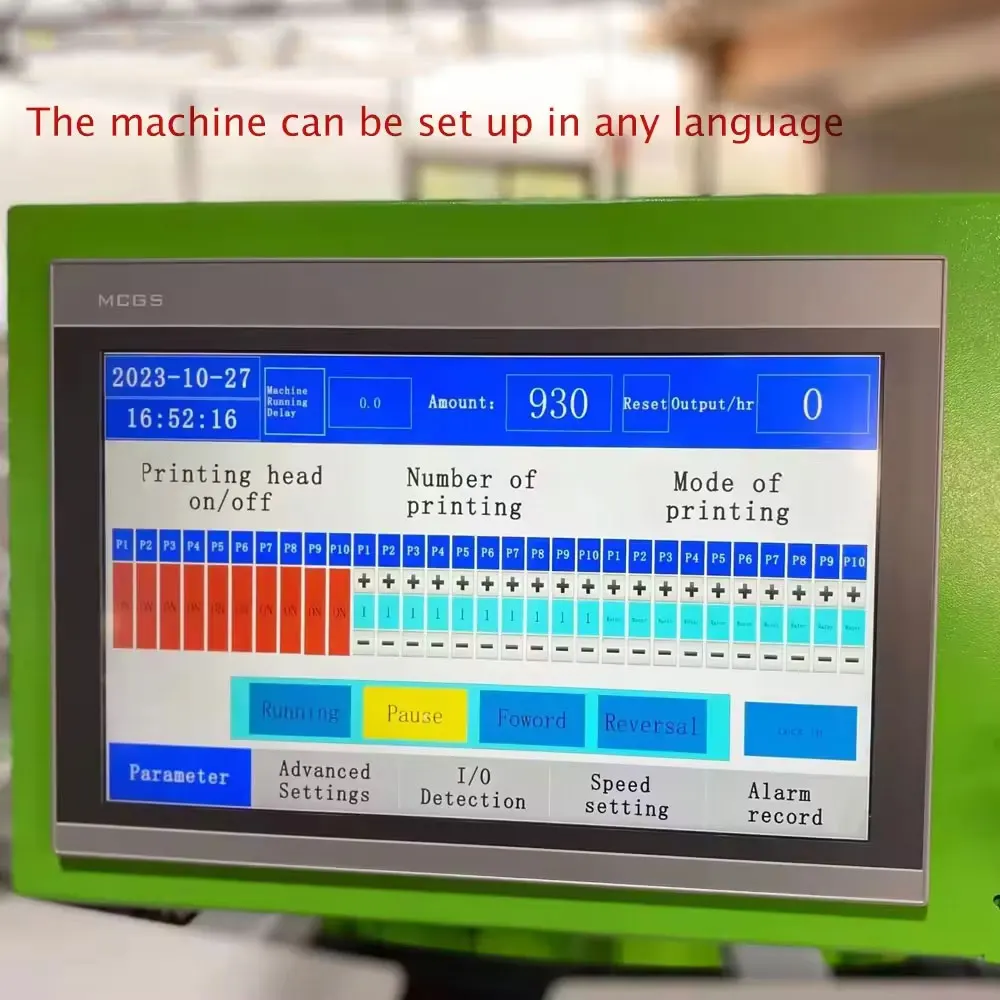

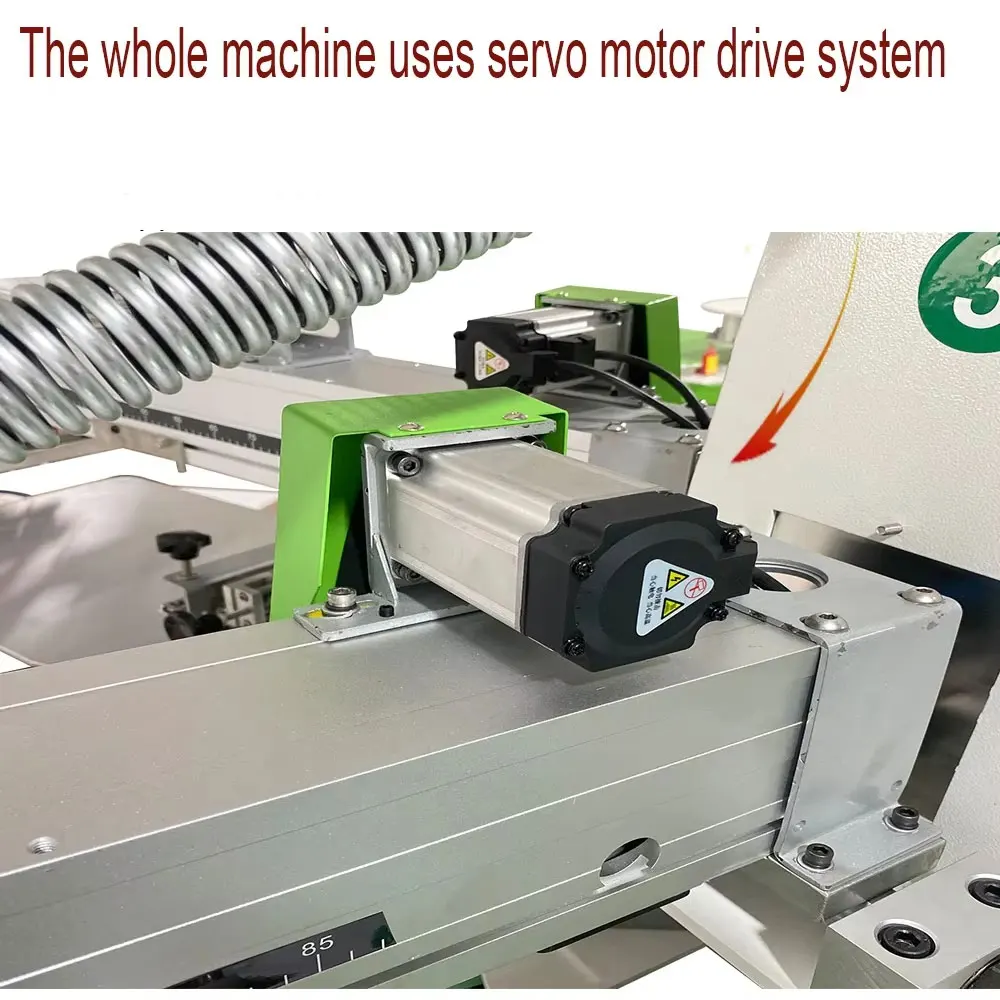

Feature: 1、Aluminum pallets, the size can customized;2、Squeegees and flood bar can be set up to 7 times,which with electric movement with ac variator ;3、Independent control panel on all print heads;4、Print head central elevation ,it can adjustable the printing height;5、Frequency drive rotation system for a quick and smooth index;6、Print heads with high-lift position for quick and easy screen cleaning;7、Central control panel with polycromatic LCD touch screen, it support several languages, operation easy and conveniently ;8、Micro registration screen system with vernier scale,Pin positioning plate with high precision,the accuracy error of the machine sleeve is between ±0.05 9、Individual controls for managing print and flood speed, height and angle of the squeegees and stroke length.10、servo motor system to ensure stable and smooth operation .11、the output of this machine can be 600-900pcs, you only need two workers to work for it,one to put the shirt onto platen, and other to take it off. it is very effecient.12、Alarm system and record,it will alarm ahd show where's wrong when occuar problem ,which will make quickly revise and work normally.13、 automatic sensor flash dryer and laser locator.


product 3 color automatic screen printing press machine with all stuff-16
product 3 color automatic screen printing press machine with all stuff-17
product 3 color automatic screen printing press machine with all stuff-18
product 3 color automatic screen printing press machine with all stuff-19
product 3 color automatic screen printing press machine with all stuff-20
product 3 color automatic screen printing press machine with all stuff-21
product 3 color automatic screen printing press machine with all stuff-10
product 3 color automatic screen printing press machine with all stuff-23
product 3 color automatic screen printing press machine with all stuff-24
Packing & Delivery
product 3 color automatic screen printing press machine with all stuff-25
Company Profile
product 3 color automatic screen printing press machine with all stuff-26
FAQ
product 3 color automatic screen printing press machine with all stuff-27
product 3 color automatic screen printing press machine with all stuff-28
product 3 color automatic screen printing press machine with all stuff-29
product 3 color automatic screen printing press machine with all stuff-30
