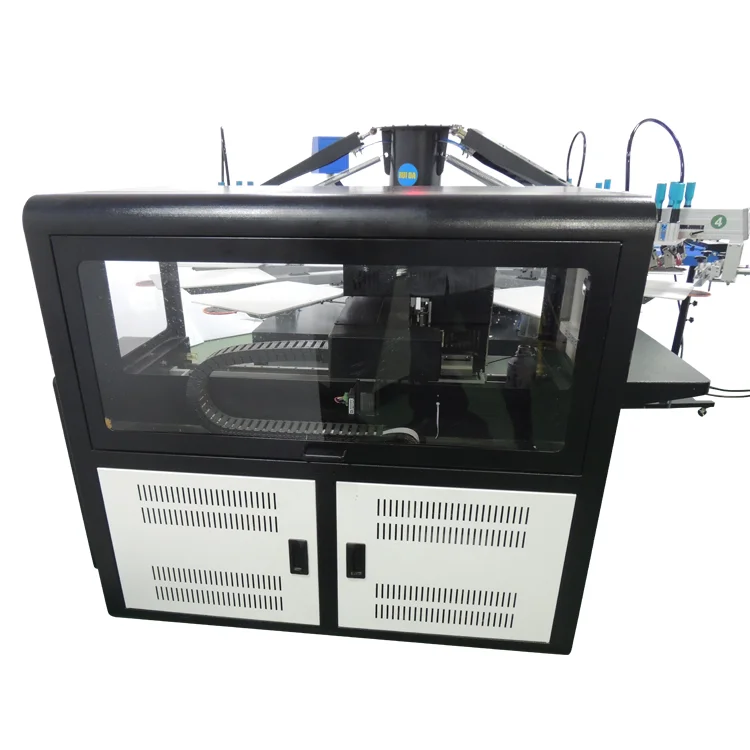

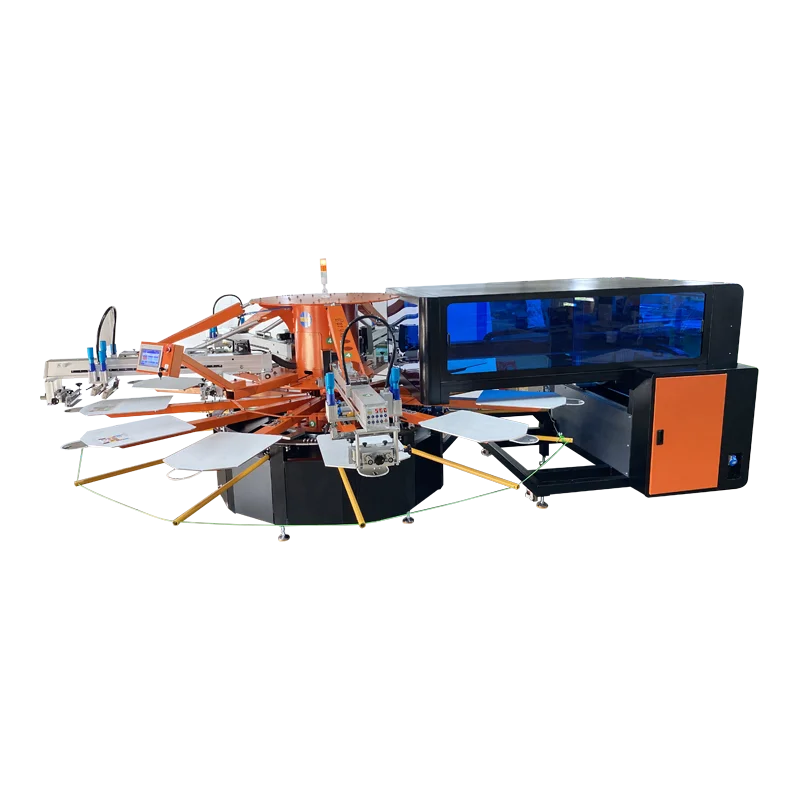

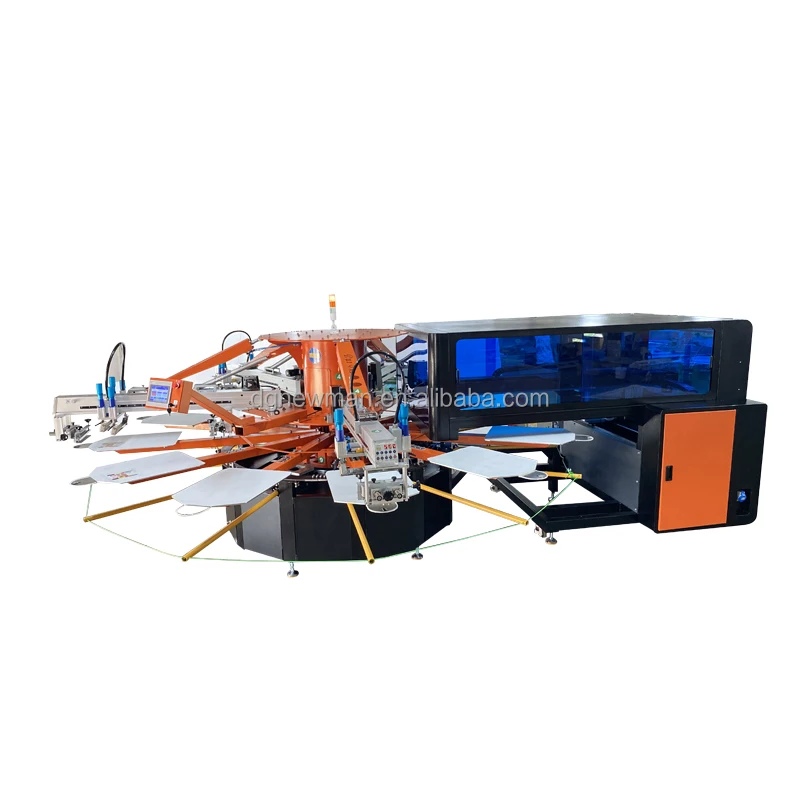

4 Color 12 Station Hybrid Digital Automatic T-shirt Silk Screen Printer With 4pcs Auto IR Flash Dryer With Sensor

The advanced 4 Color 12 Station Hybrid Digital Screen Printer combines traditional silk screening with cutting-edge digital technology for superior t-shirt printing efficiency.  Perfect for medium to large-scale garment printing businesses, this machine delivers precise color registration, professional results, and significantly reduced labor costs.  The automated flash dryer system automatically adjusts temperature and drying time based on sensor feedback, preventing scorching while ensuring thorough ink curing for durable, wash-resistant prints.

  • Overview
  • Related Products
Product Description
Main Feature
Hybrid Digital Printing Machine Equipment model:Digital Printing Machine Working environment :Temperature:20°C~28°C Print Heads: 4 heads / Epson I3200
Working environmen :Humidity40%~60%
Ink colors: Cyan, Magenta, Yellow, Black
Print mode:Unidirectional and wave form bidirectional
Max. print area: 500 mm x 700 mm
Applicable fabrics:Cotton, linen, nylon, terylene
Production speed:± 200pcs per hour
RIPsoftware :Photo Print/Wasatch/Neostampa special/ printing RIP software
Maximum thickness of medium: 25 mm
Printheadmaintenance: Automatic moisturizing, automatic cleaning, automatic scraping system
Dimension (LxWxH):1820 mm x 1560 mm x1300 mm
Input format:JPEG/TIFF file format RGB/CMYK color mode
Machine Weight:1500 kg
Printing resolution:720 x 720 DPI;720 x 1080 DPI;360 x 1080 DPI
Power requirement:AC220V/single-phase;/50/60HZ
Ink type / capacity:Textile pigment ink;5L
Power consumption:0~400 W
Ink supply system :Automatic negative pressure ink supply system 200 to 250pcs/hour


NS4012-A Automatic 4 colors 12 stations with 4 flashdryerPallet size : 500x700mm• Max frame size: 530X800mm• Max printing area: 400x500• Machine diameter: 4100mm• Voltage:220v• Phase:3PH/1PH• Automatic Grade: Automatic• Gross Weight : 2000KG• Gross Power: 24KW with 4pcs flash dryer ND606 max heating area50x60cm , machine power is 2.6kw

product 4 color 12 station hybrid digital automatic t shirt silk screen printer with 4pcs auto ir flash dryer with sensor-1
product 4 color 12 station hybrid digital automatic t shirt silk screen printer with 4pcs auto ir flash dryer with sensor-2
product 4 color 12 station hybrid digital automatic t shirt silk screen printer with 4pcs auto ir flash dryer with sensor-3
product 4 color 12 station hybrid digital automatic t shirt silk screen printer with 4pcs auto ir flash dryer with sensor-4
product 4 color 12 station hybrid digital automatic t shirt silk screen printer with 4pcs auto ir flash dryer with sensor-5

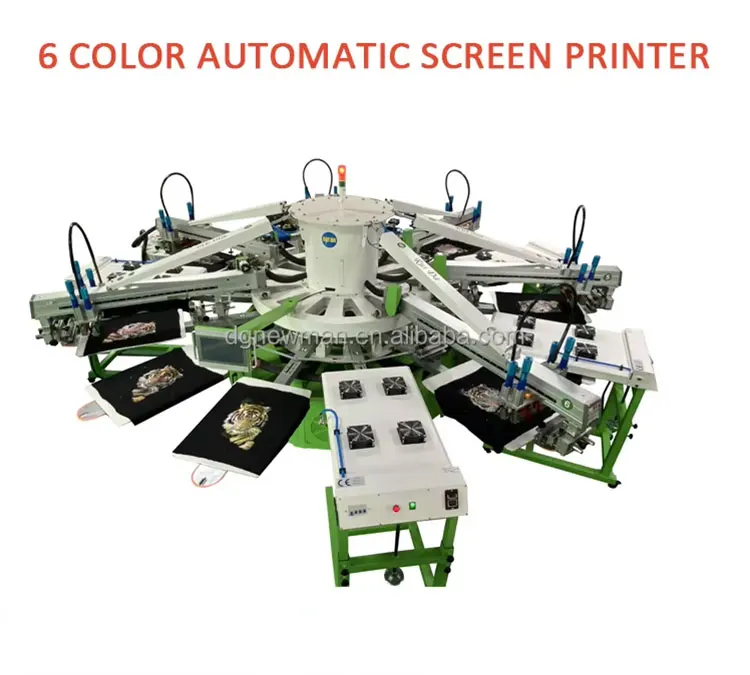

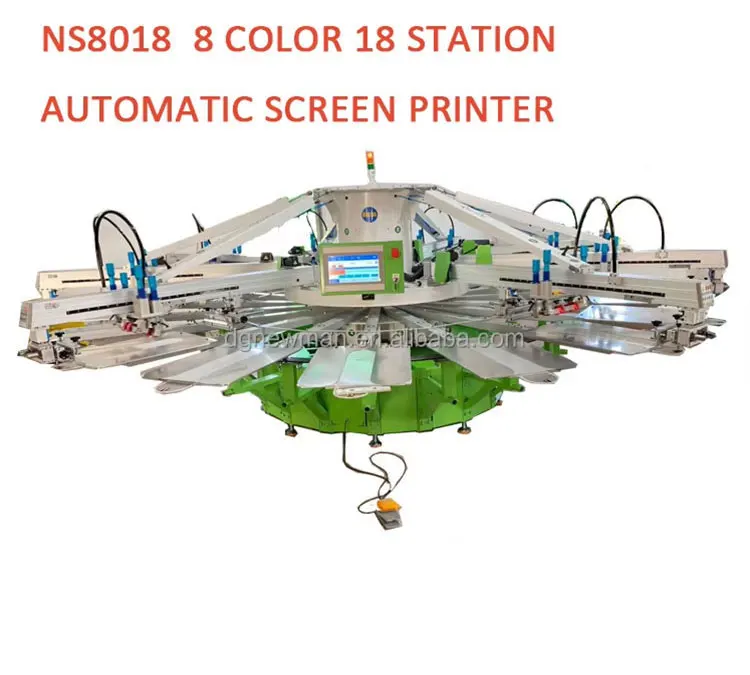

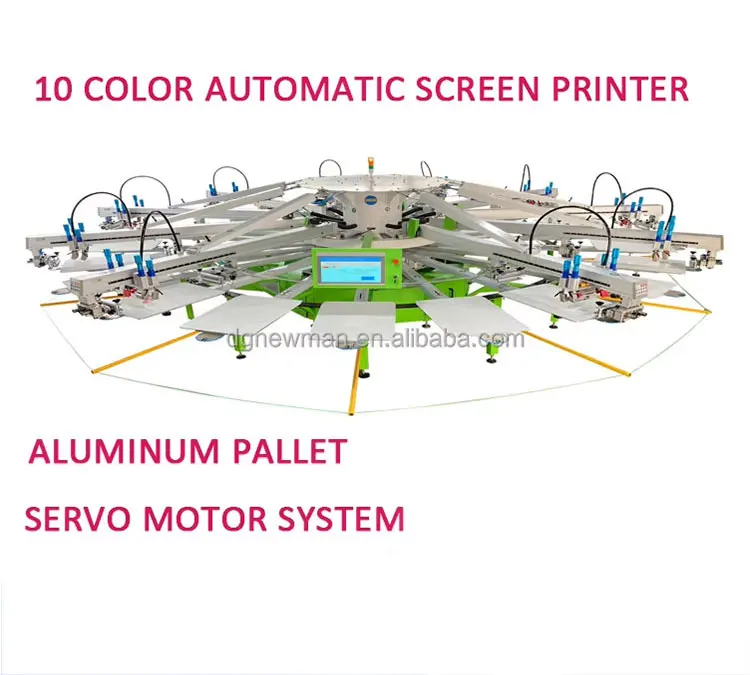

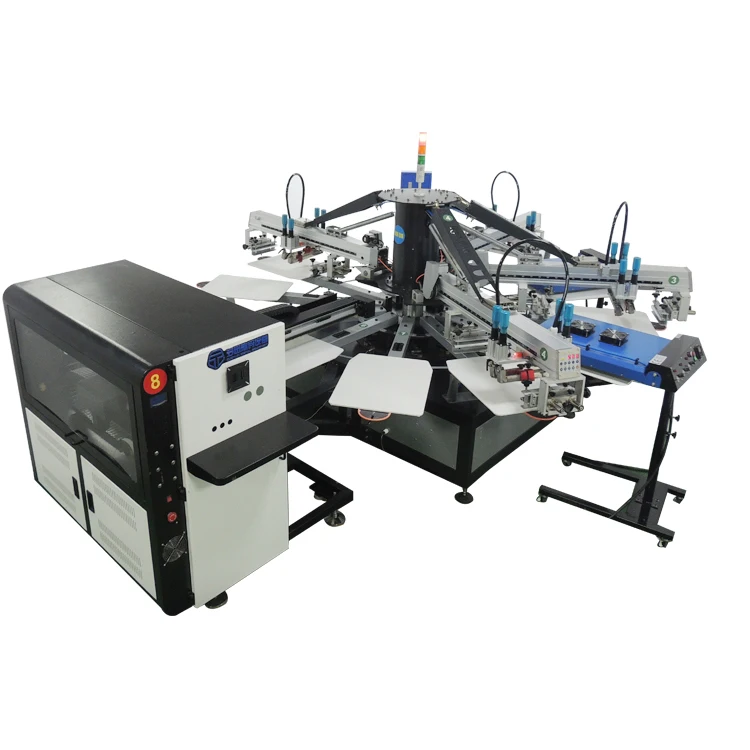

Except the digital printer with 4 color automatic screen printer, other automatic scree printer also viable
product 4 color 12 station hybrid digital automatic t shirt silk screen printer with 4pcs auto ir flash dryer with sensor-6
product 4 color 12 station hybrid digital automatic t shirt silk screen printer with 4pcs auto ir flash dryer with sensor-7
product 4 color 12 station hybrid digital automatic t shirt silk screen printer with 4pcs auto ir flash dryer with sensor-8
product 4 color 12 station hybrid digital automatic t shirt silk screen printer with 4pcs auto ir flash dryer with sensor-9
product 4 color 12 station hybrid digital automatic t shirt silk screen printer with 4pcs auto ir flash dryer with sensor-10

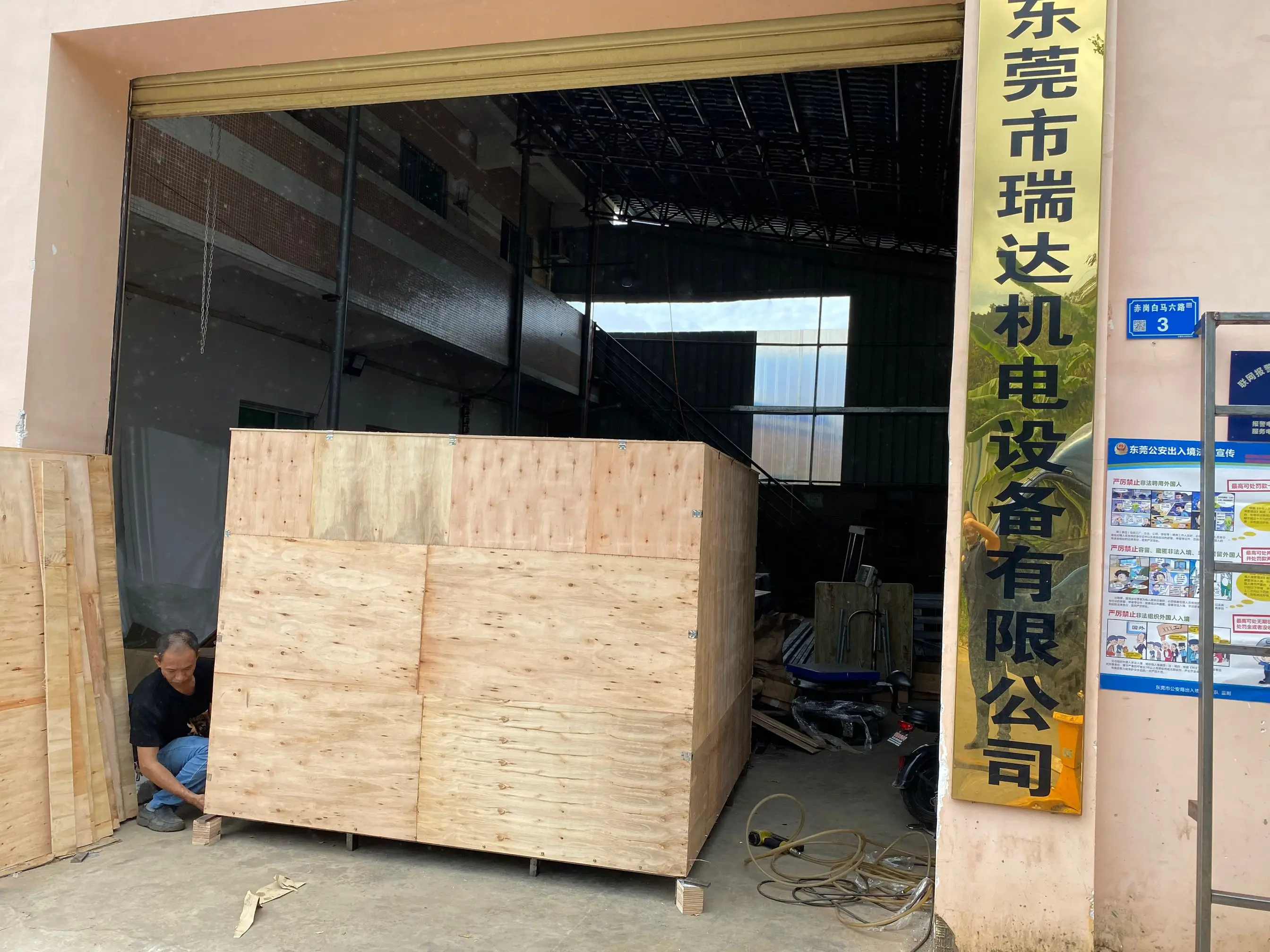

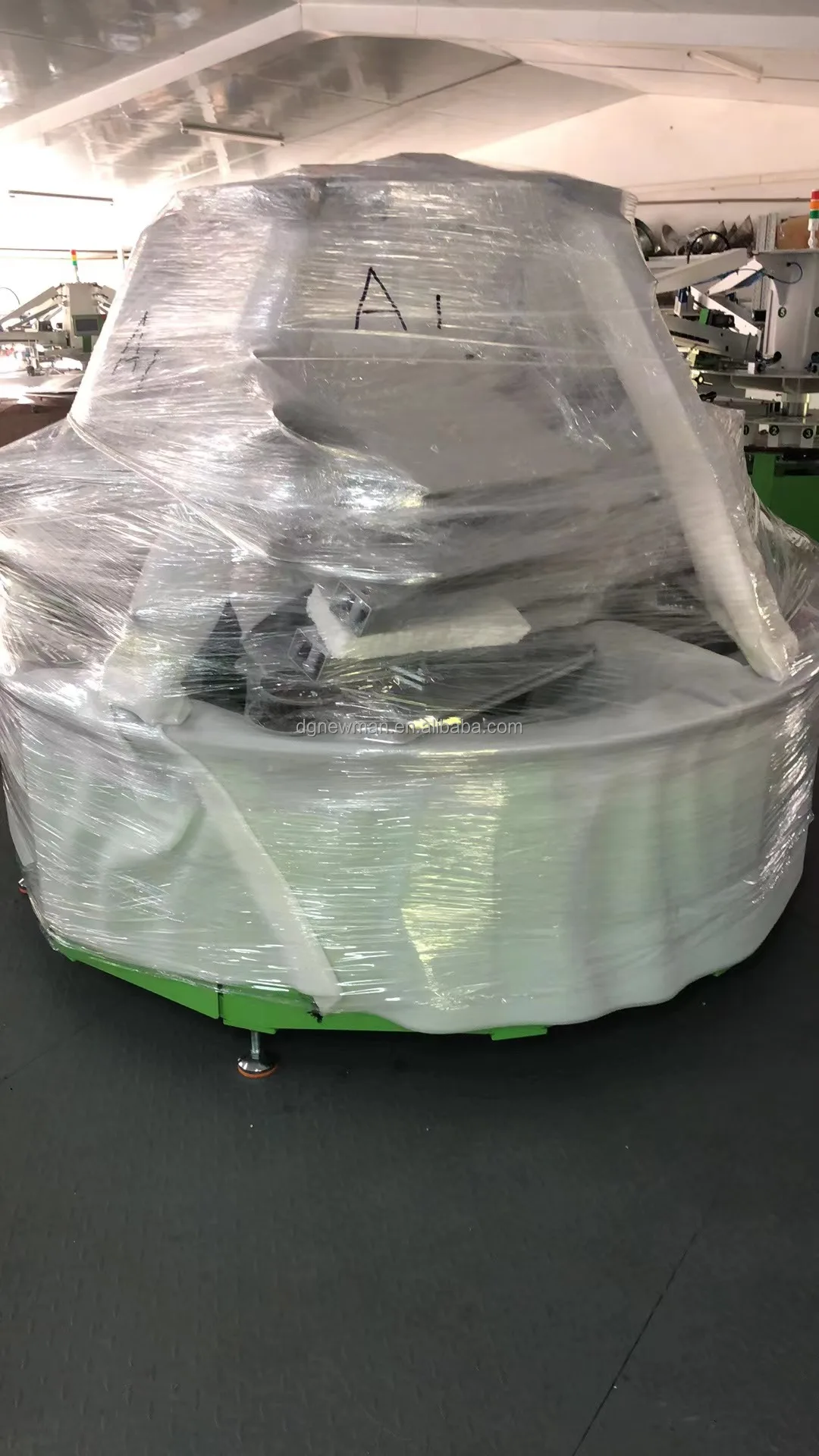

Packing & Delivery
