DGRUIDA NA105 Screen Printing Hand Mesh Stretcher Screen Printing Equipment Consumables Screen Stretcher
The DGRUIDA NA105 Hand Mesh Stretcher is an essential tool for professional screen printing workshops and DIY enthusiasts alike. This robust screen stretcher ensures precise and uniform tension across your mesh, creating the perfect foundation for high-quality prints. Its user-friendly mechanism makes it easy to achieve professional-grade screen preparation, whether you're working with small formats or larger screens.
- Overview
- Related Products

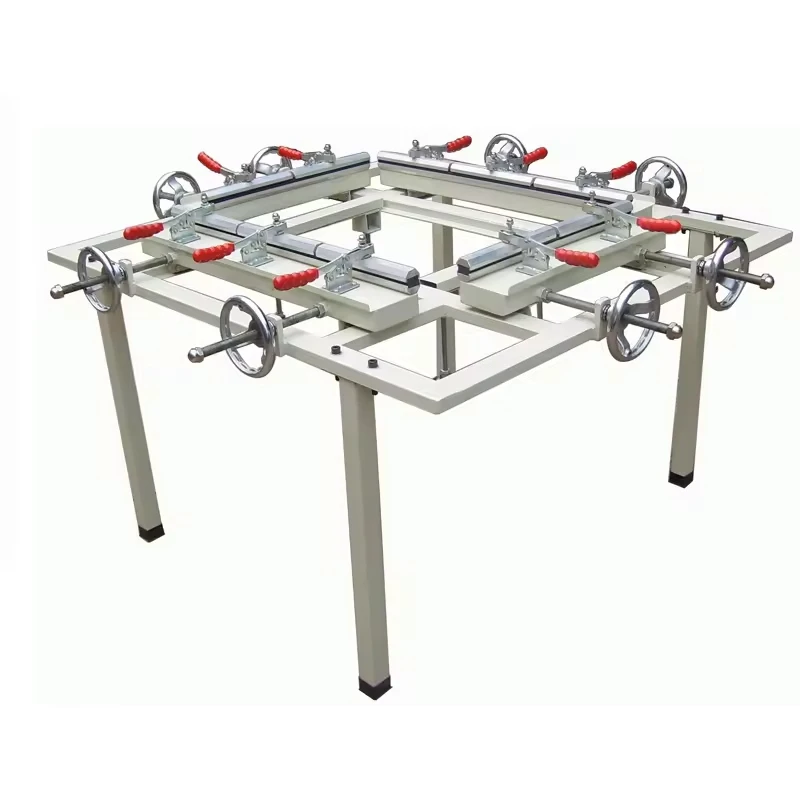

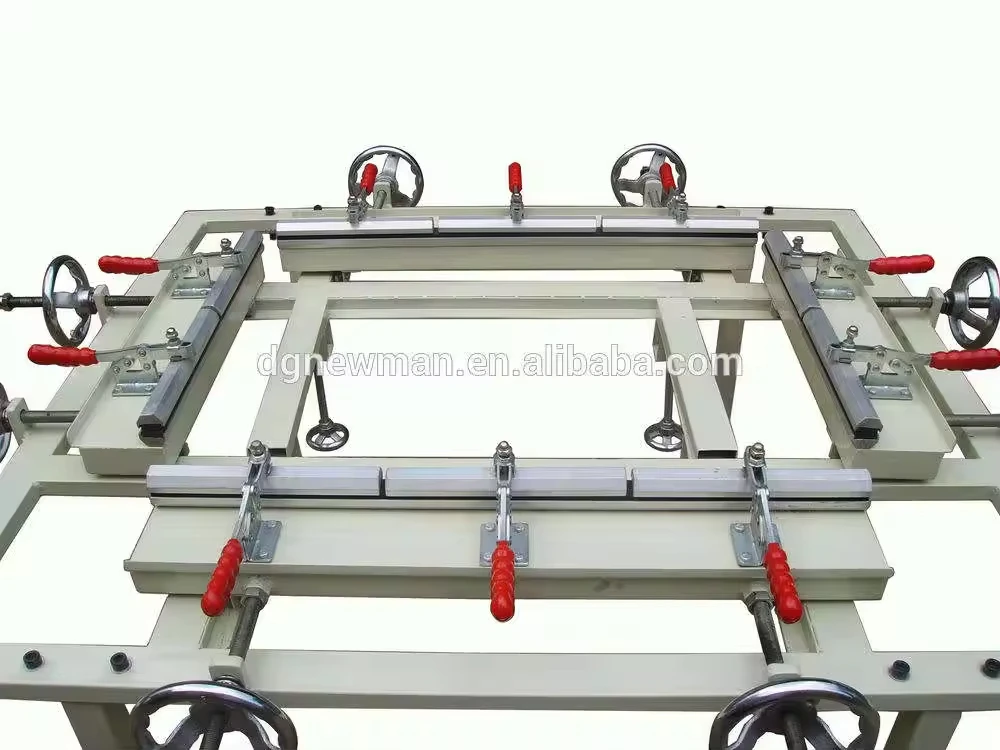

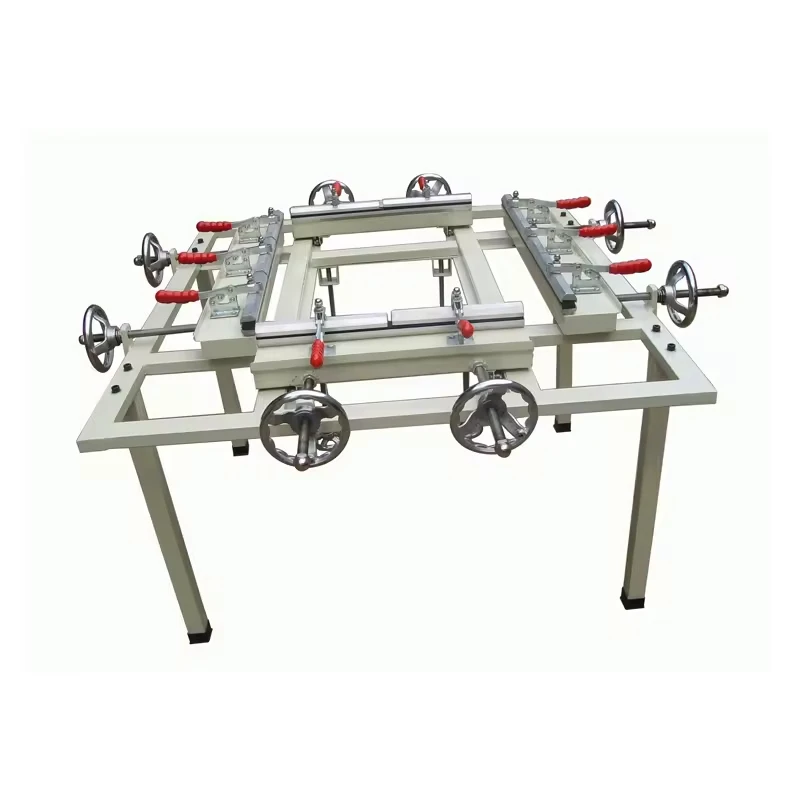

NA105 Manual Screen Stretcher Mesh Stretching Silk Screen Printing Equipments
Max area: 90*120cm
Gross weight: 88kg
Packing size: 165*52*44cm
Screen stretching is the most important procedure to make screen. Stretching tool and technical define the quality of emulsion coating ,screen stretching and screen printing.Our company R&D this manual screen stretcher, it is professional design, exquisite craft, brief and utility structure, easy and swift operation ,enormously improves efficiency and quality. It is exposed of four parts with the same appearances, structures and applications.
Operations
1. Put the screen frame on it, the upside must be the ragged face.
2. Adjust the height of the frame, 0.04"-0.08"(1-2mm) higher than the baffle.
3. Keeping the hand-wheel in the inside of the screw rod will assure better stretching effects.
4. Coat screen adhesive, not to thin and not to thick.
5. Stretch when the adhesive sticks hand a bit.
6. Coat the adhesive again after well stretched.
7. When the adhesive solidifies completely, then the screen stretching appliance can be dismantled
