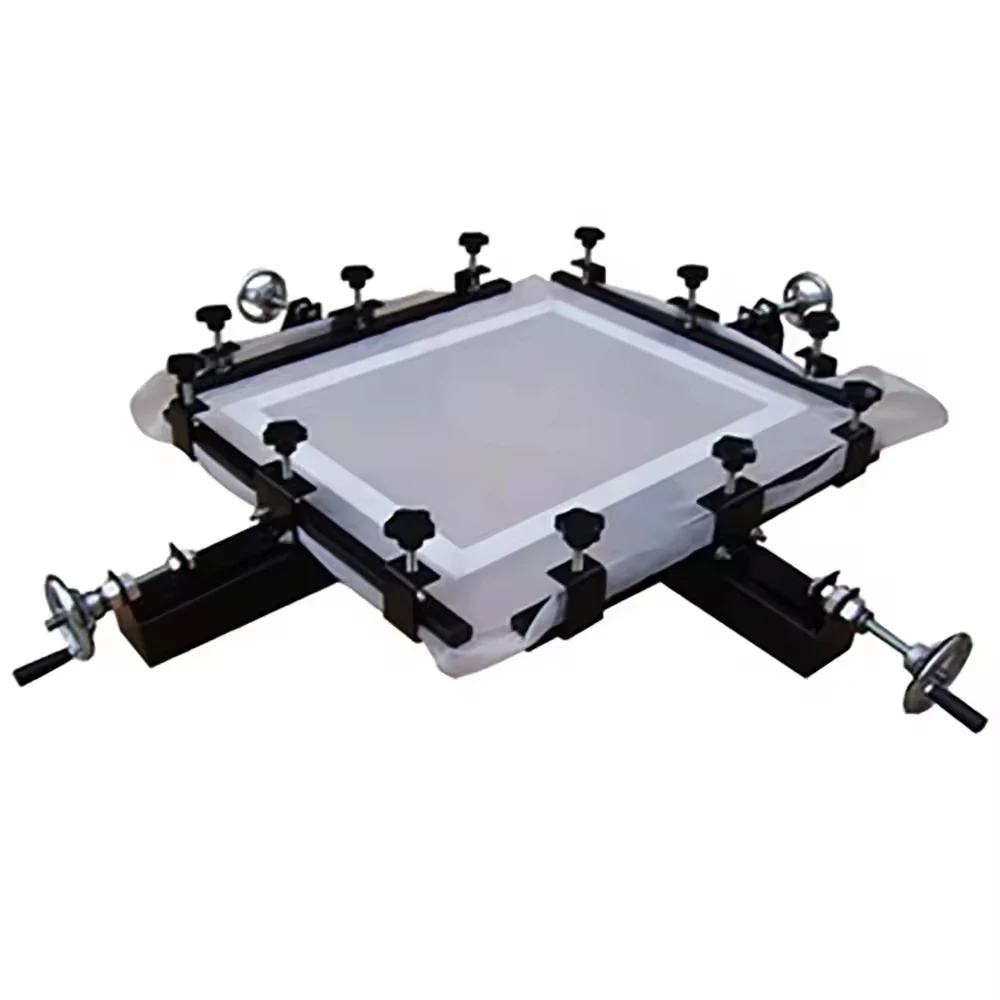

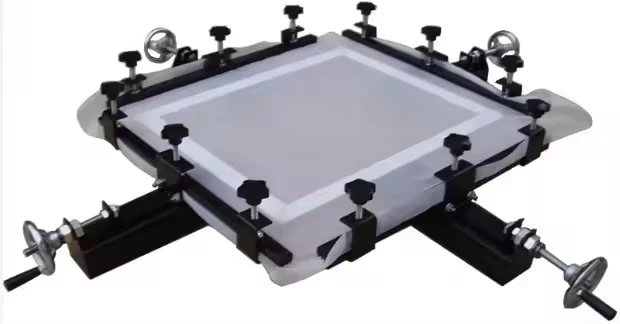

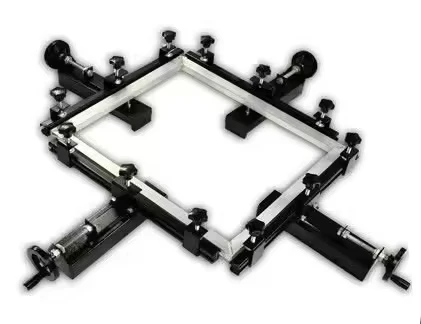

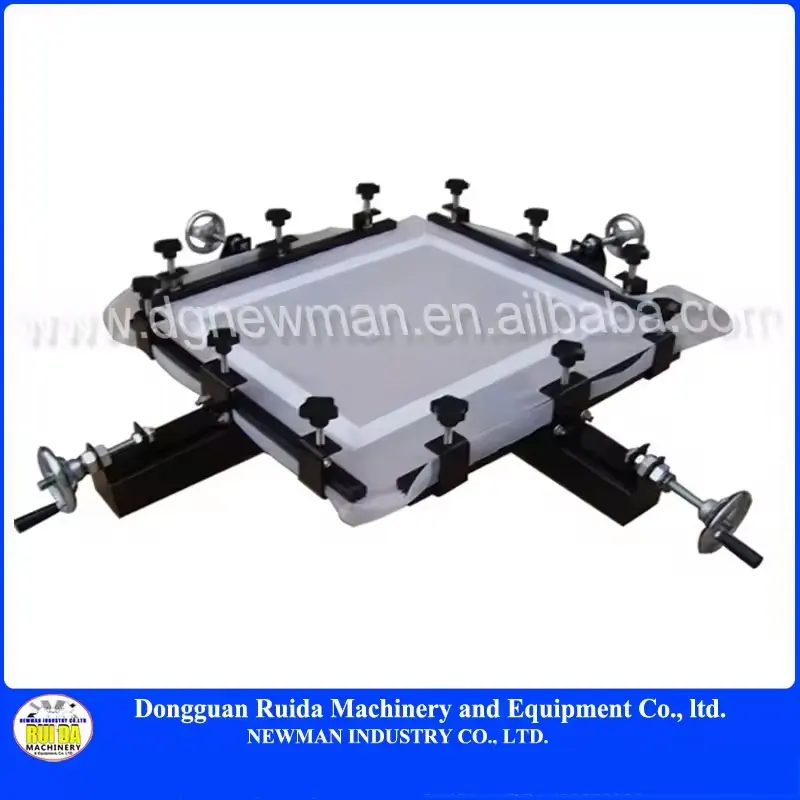

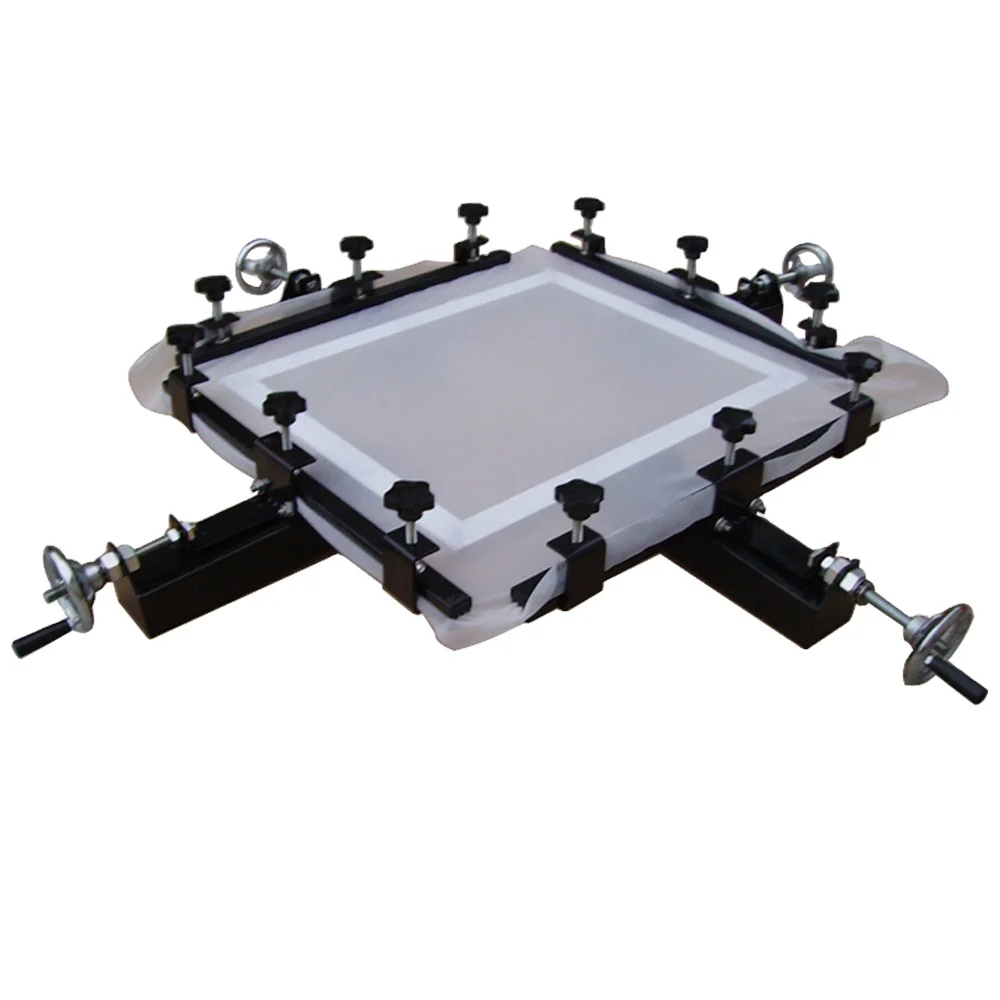

NA104 60x60CM Screen Printing Manual Hand Pneumatic Mesh Stretcher Making Machine
The NA104 Manual Pneumatic Mesh Stretcher is an essential tool for screen printing professionals seeking precise mesh tensioning. The robust construction ensures stable performance and long-term durability, while the pneumatic system provides smooth, controlled stretching to prevent mesh damage. Suitable for various mesh types and counts, this versatile machine helps create high-quality screens for textile printing, graphic arts, and industrial applications.
- Overview
- Related Products
Product Description
Operations
1. Put the screen frame on it, the upside must be the ragged face.
2. Adjust the height of the frame, 0.04"-0.08"(1-2mm) higher than the baffle.
3. Keeping the hand-wheel in the inside of the screw rod will assure better stretching effects.
4. Coat screen adhesive, not to thin and not to thick.
5. Stretch when the adhesive sticks hand a bit.
6. Coat the adhesive again after well stretched.
7. When the adhesive solidifies completely, then the screen stretching appliance can be dismantled
Main Features
* Consisted by four 24"(60CM) wide collets. One single set can apply to any screen frames below 24"x24"(60x60CM )(external
dimension), two sets combination can be done all size screen frames below 48"x48"(120x120CM)
* Wide locking bars for compressing screen are critical parts, directly influencing the quality of stretching. We specially
exploit concave and convex locking bars made of rubber with proper rigidity,24" width, no joints
* Suits for any frames below 2” thickness (common thickness is 1"-1.2").Adjusting position bolt can meet your different
requirement
* Considering machine structure, only some components needs to endure force, we bring in 0.12" thickness steel plate to make
normal components and 0.2" thickness plate to make forced parts.Made of steel,advanced electrostatic spraying
2. Adjust the height of the frame, 0.04"-0.08"(1-2mm) higher than the baffle.
3. Keeping the hand-wheel in the inside of the screw rod will assure better stretching effects.
4. Coat screen adhesive, not to thin and not to thick.
5. Stretch when the adhesive sticks hand a bit.
6. Coat the adhesive again after well stretched.
7. When the adhesive solidifies completely, then the screen stretching appliance can be dismantled
Main Features
* Consisted by four 24"(60CM) wide collets. One single set can apply to any screen frames below 24"x24"(60x60CM )(external
dimension), two sets combination can be done all size screen frames below 48"x48"(120x120CM)
* Wide locking bars for compressing screen are critical parts, directly influencing the quality of stretching. We specially
exploit concave and convex locking bars made of rubber with proper rigidity,24" width, no joints
* Suits for any frames below 2” thickness (common thickness is 1"-1.2").Adjusting position bolt can meet your different
requirement
* Considering machine structure, only some components needs to endure force, we bring in 0.12" thickness steel plate to make
normal components and 0.2" thickness plate to make forced parts.Made of steel,advanced electrostatic spraying
