Ruida NS103 1 Color 3 Station Simple Manual Micro-Adjustable Desktop Silk Screen Printing Machine for Cloths
The Ruida NS103 is a compact and efficient desktop screen printing machine designed for small-scale textile printing operations. The micro-adjustable mechanism ensures precise registration and alignment for professional results on various cloth materials. Perfect for start-up businesses, small print shops, or DIY enthusiasts, this user-friendly machine combines simplicity with accuracy.
- Overview
- Related Products

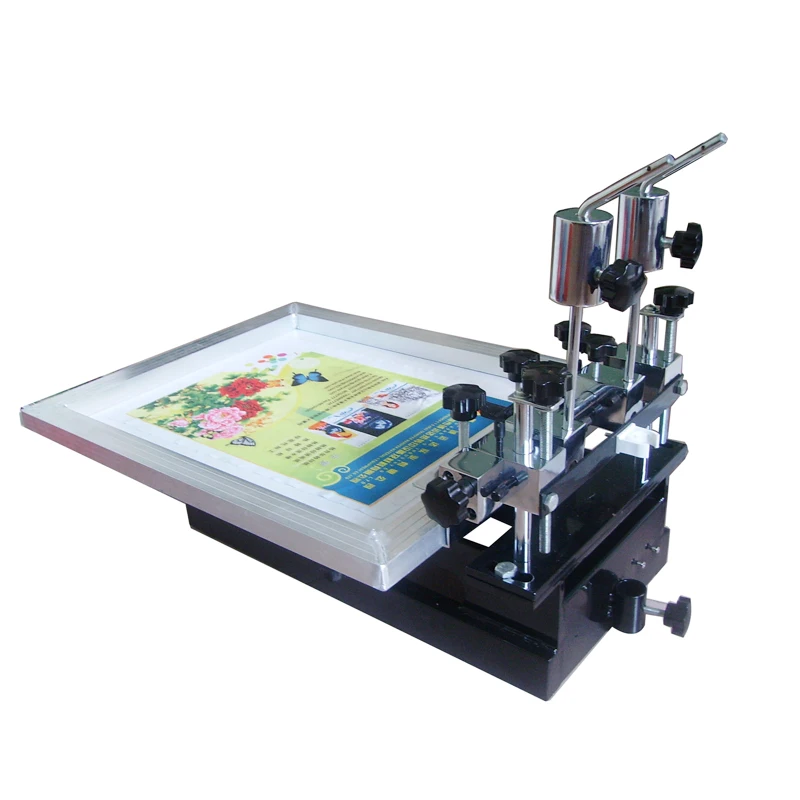

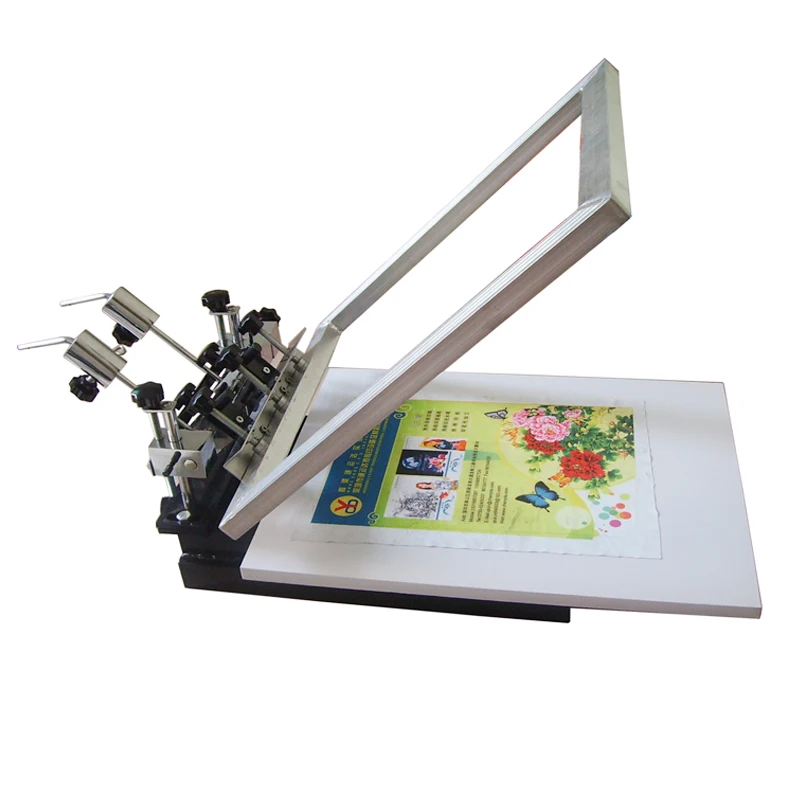

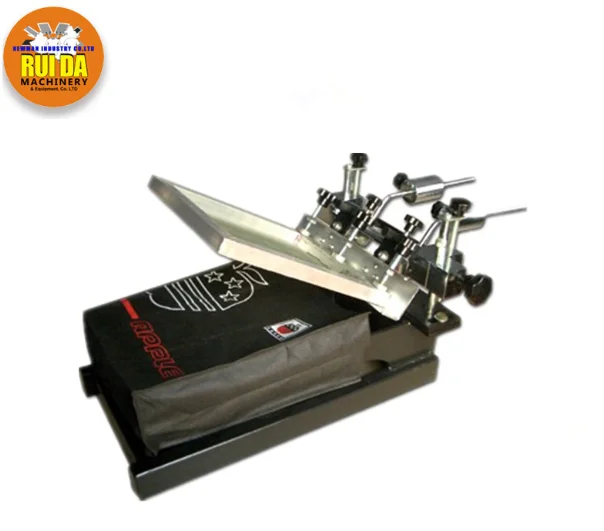

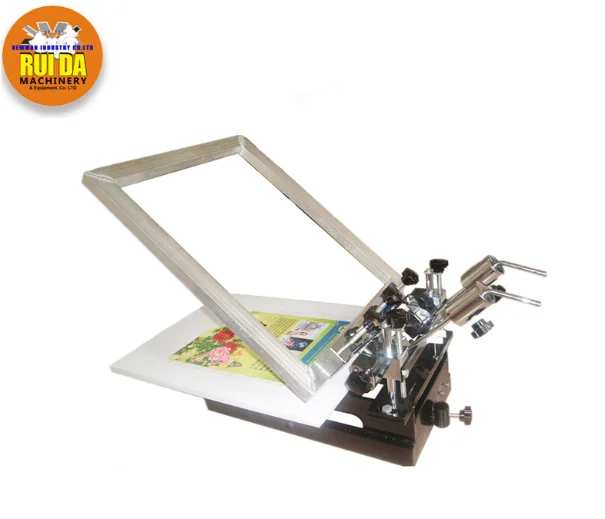

NS103 1 Color 3 station Micro-Adjustable Screen Printing Machine
Based on the need of customers and market, our company R&D the 1-1 screen printer, which overcomes shortages of traditional press, such as without micro-devices, only one fixed platen and can not put on the T-shirt, pillow, bag and so on. It is especially suitable for printing non-woven environment-friendly shopping bags.

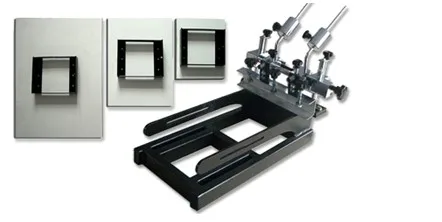

This equipment includes the main printing device and three platens with different sizes.
Main Features :
This equipment includes the main printing device and three platens with different sizes.Screwing two bolts, users can replace the shirt board easily to overprint different substrates.
Overprint is a significant feature
The significant feature brings it wide applications, such as T-shirts, pillowcases, non-woven bags, etc.
All-around micro-devices and lock device
Micro-device makes screen and shirt board joint evenly, micro-device up and down with different substrates, also for left and right, back and forth, which ensures the precision of printing.
The lock devices can make every part stable and it also ensures the precision of printing.
The best application for these 1-1 flatbed screen press is to get halftone effect.
Using this micro device, professional printer also can use these press to apply multi-color printing.
With two assistive hammers
Adjusting the position of hammers facilitates rising and falling for screen with different sizes and weights.
Utilizing electrostatic spraying and electroplating, durable, easy clear, no rust.
Parameters:
Shipping weight:70LB(32KG)
Package size:30"x20"x14"(76x51x36cm)
Printing Head Weight: 22Lb (9.7kg)
|
Pallet Sizes: 23.6”x17.7” (60x45cm) 17.3"X12.6"(44x32cm) 11.8”x9.4” (30x24cm) |
| Packing: 2 box |
Installation and Operation
Attention:You should loose the lock devices before installing and then tighten them after your installations.
1. Install the Machine Head.Remove the bolts, put the machine head on to the base support, adjust the proper position and then screw the bolts tightly.
2. Install the Gravity Hammers.
3. Install the Stretched Screen Frame to check whether you have well installed it or not.
4. Adjust the screen plate with its micro adjusting functions, then apply it into printing process.
