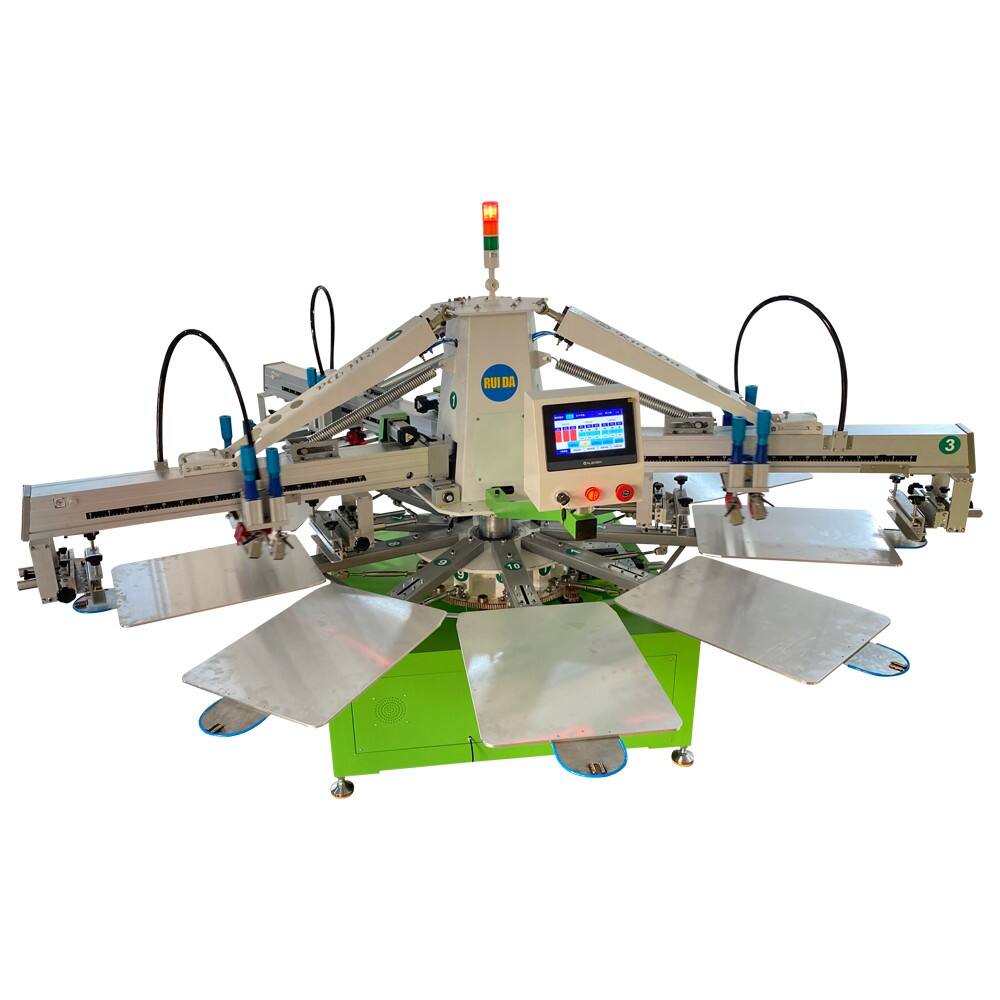

3 Color 10 Station Automatic Non-Woven Flexo Screen Printing Machine for T-Shirt Cloth Printing
Are you looking for a high-performance, reliable, and efficient screen printing machine for textiles? The 3 Color 10 Station Automatic Non-Woven Flexo Screen Printing Machine is your ultimate solution for high-quality, multicolor printing on T-shirts, bags, towels, leather, and more. Designed for precision and speed, this machine is perfect for businesses aiming to achieve professional results with minimal effort.
- Overview
- Related Products
Key Features
● Durable Aluminum Pallets: Ensures stability and longevity during high-volume printing.
● Electric Squeegee Movement with AC Variator: Provides precise control over printing pressure and speed.
● Independent Control Panel on All Print Heads: Allows for easy adjustments and customization.
● Pneumatic Screen Holder Options: Choose between “U” clamp or pin system for flexible screen mounting.
● Print Head Central Elevation: Simplifies screen cleaning and maintenance.
● Frequency Drive Rotation System: Delivers quick and smooth indexing for seamless operation.

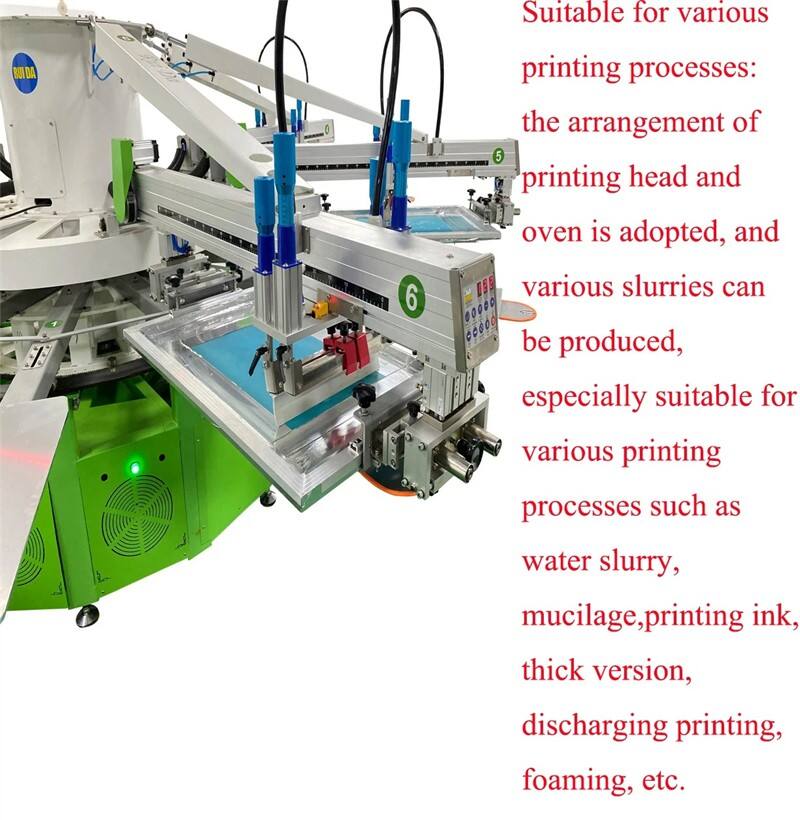

● High-Lift Print Heads: Enables easy access for screen cleaning and setup.

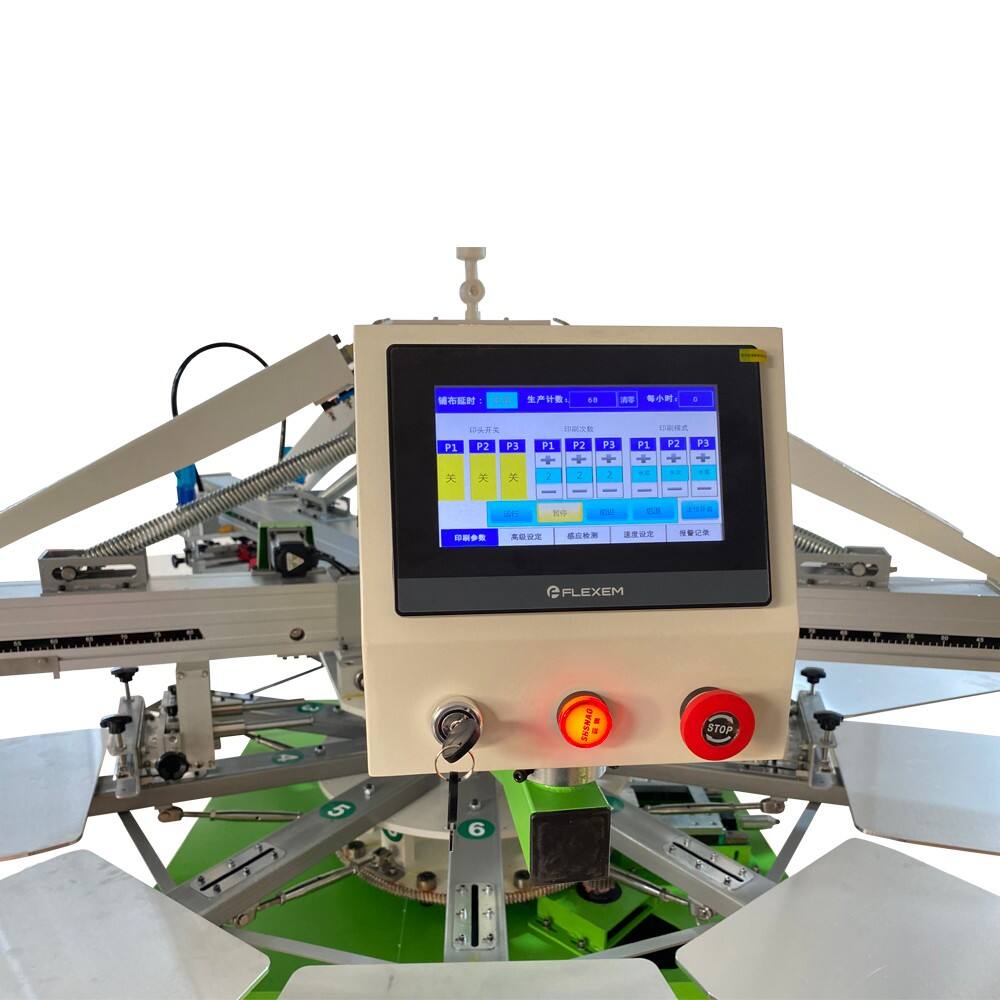

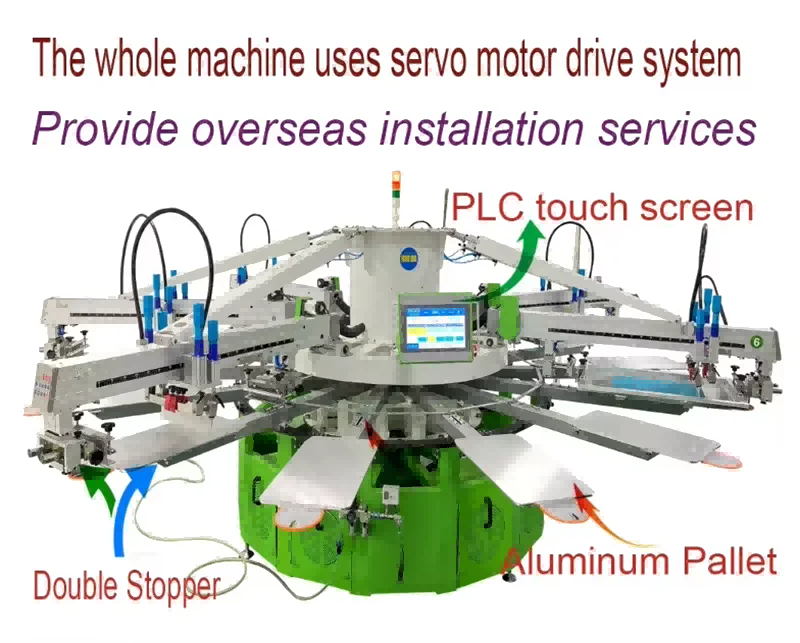

● Central Control Panel with Polycromatic LCD Touch Screen: User-friendly interface for effortless operation.

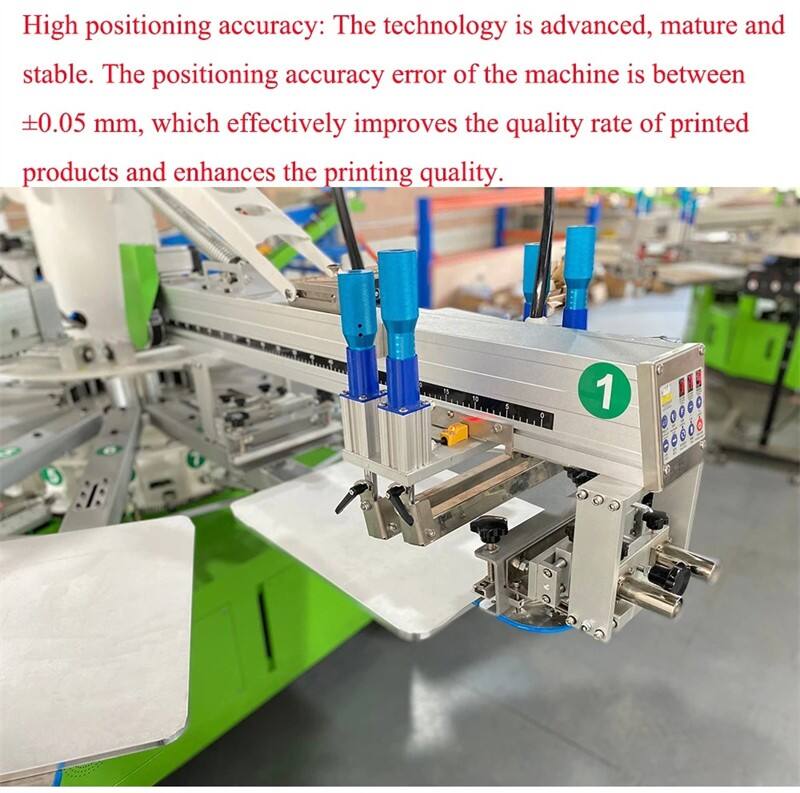

● Micro Registration Screen System with Vernier Scale: Ensures accurate alignment for perfect overprinting.
● Individual Controls for Print and Flood Speed, Squeegee Height, Angle, and Stroke Length: Full customization for optimal print quality.

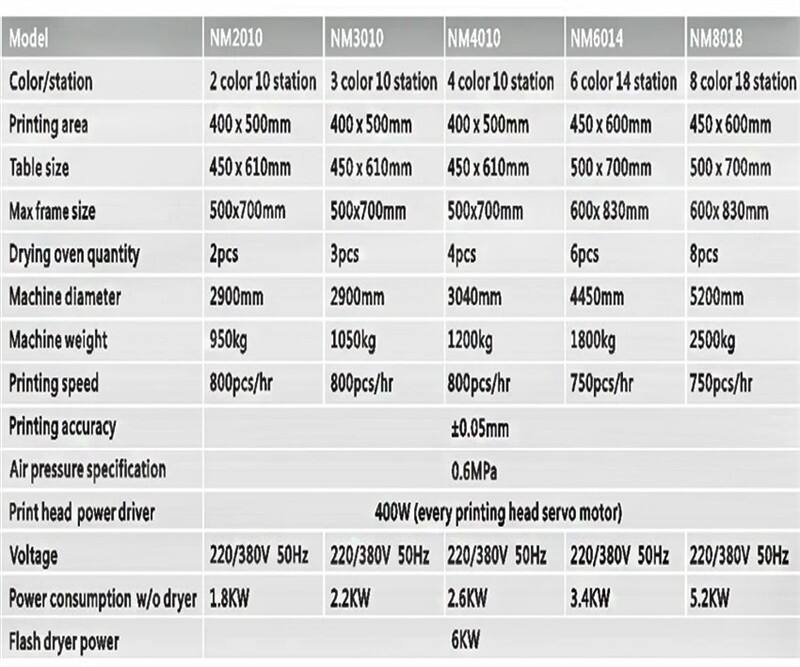

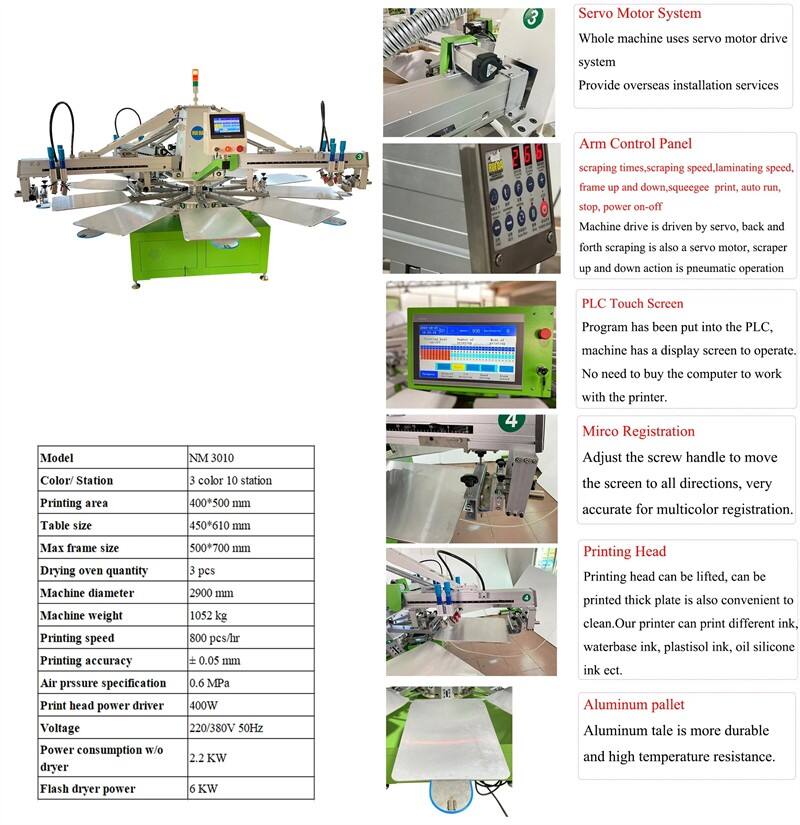

Technical Specifications
| Plate Type | Screen Printer |
| Max. Print Area | 400 x 500mm |

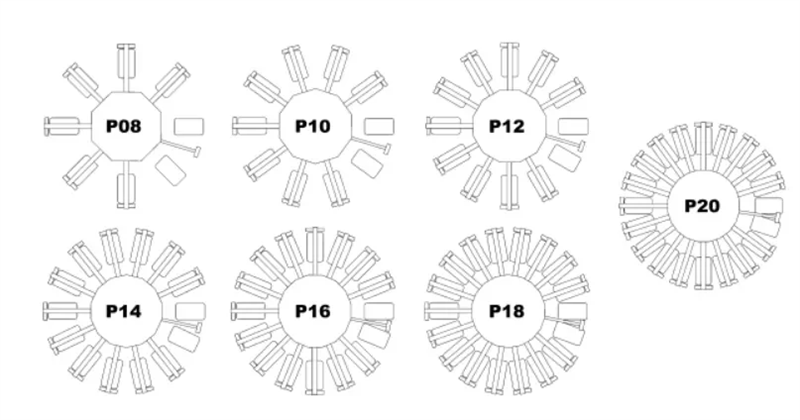

| Stations | 10 stations |
| Automatic Grade | Fully Automatic |
| Color & Page | Multicolor |
| Condition | Brand New |
| Place of Origin | Guangdong, China |
| Brand Name | RUIDA |
| Usage | Cloth Printing |
| Voltage | 220V |
| Dimensions (L x W x H) | 3 x 3 x 1.5 meters |
| Weight | 1040 kg |
| Warranty | 1 Year |
| Pallet Material | Aluminum |
| Pallet Size | 450 x 600mm |
| Color Station | 3 Color, 10 Station |
| Flash Dryer | 3 Pieces Included |
| Max Print Speed | 750 pieces/hour |
| Application | Screen Printing on Textiles, Leather, and More |
Why Choose This Machine?
● Precision Overprinting: The rotating stencil system allows fine-tuning for front, rear, left, and right alignment, ensuring accurate multicolor overprinting.
● Versatile Application: Ideal for T-shirts, bags, backpacks, towels, leather, and other materials prone to shrinkage or deformation.

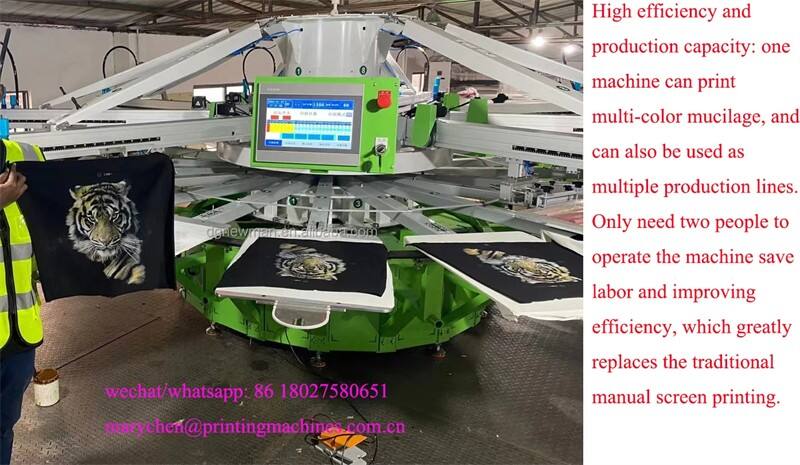

● High-Speed Production: With a maximum speed of 750 pieces/hour, this machine is perfect for large-scale production.
● User-Friendly Design: The central control panel and independent print head controls make operation intuitive and efficient.
● Durable Construction: Built with high-quality materials, including aluminum pallets, for long-lasting performance.

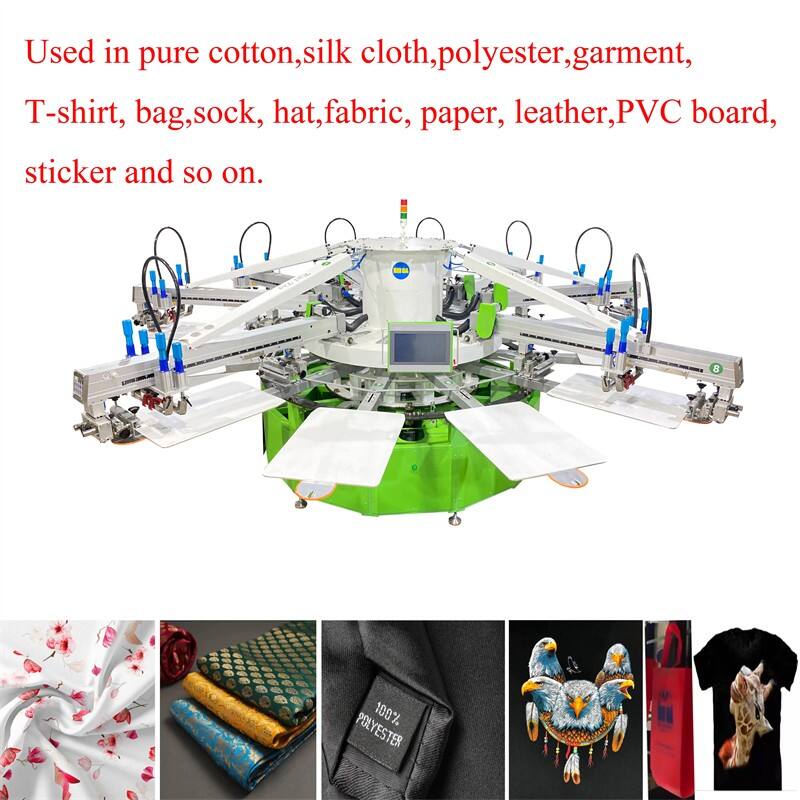

Applications
● This screen printing machine is widely used in the textile industry for printing on:
● T-shirts
● Bags and backpacks
● Towels and cloth
● Leather goods
● And more!
