10-10 Screen Printer & Kit

Home >  Products >  Manual Screen Printer >  10-10 Screen Printer & Kit

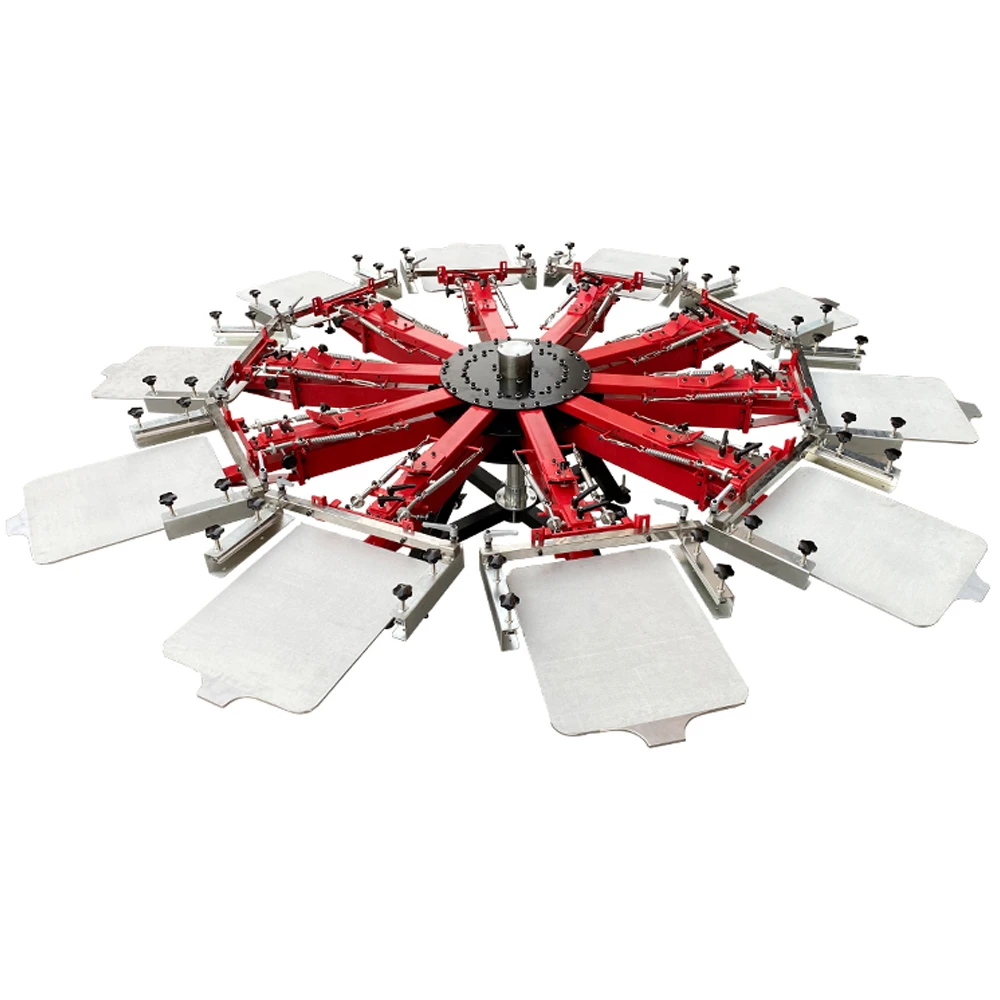

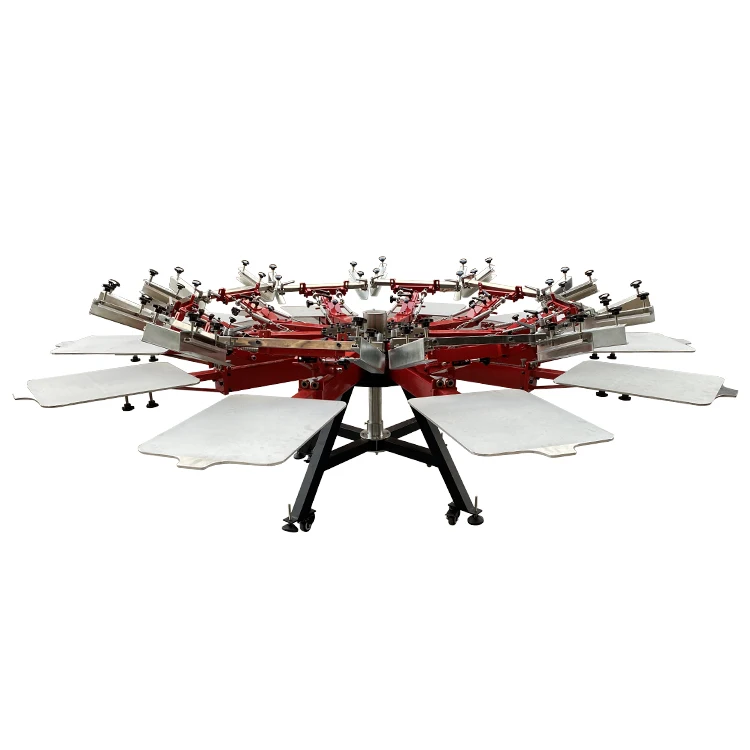

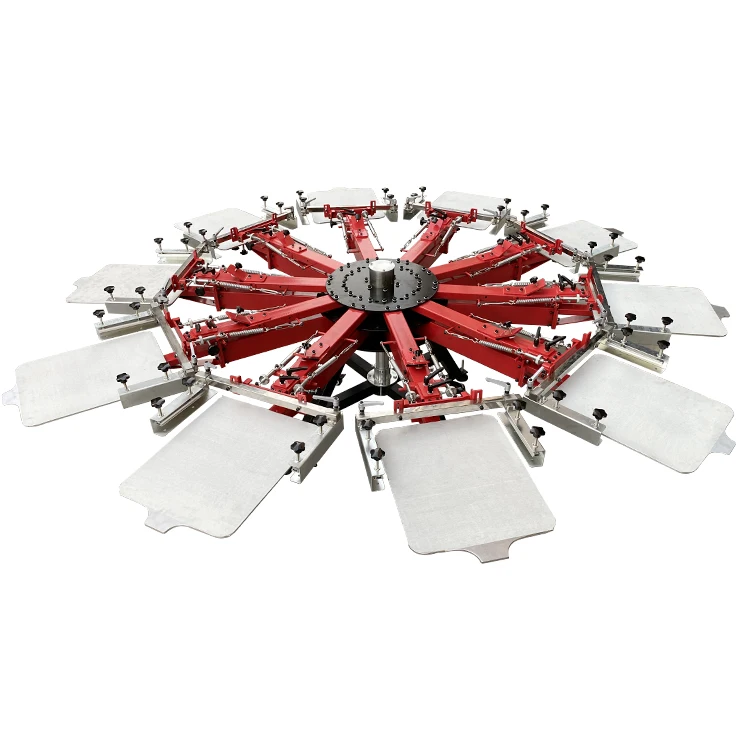

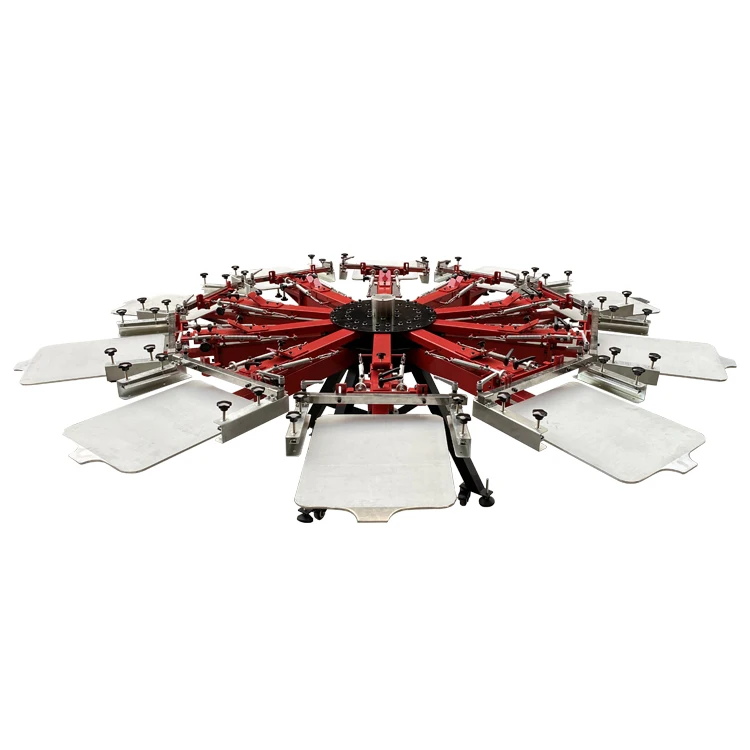

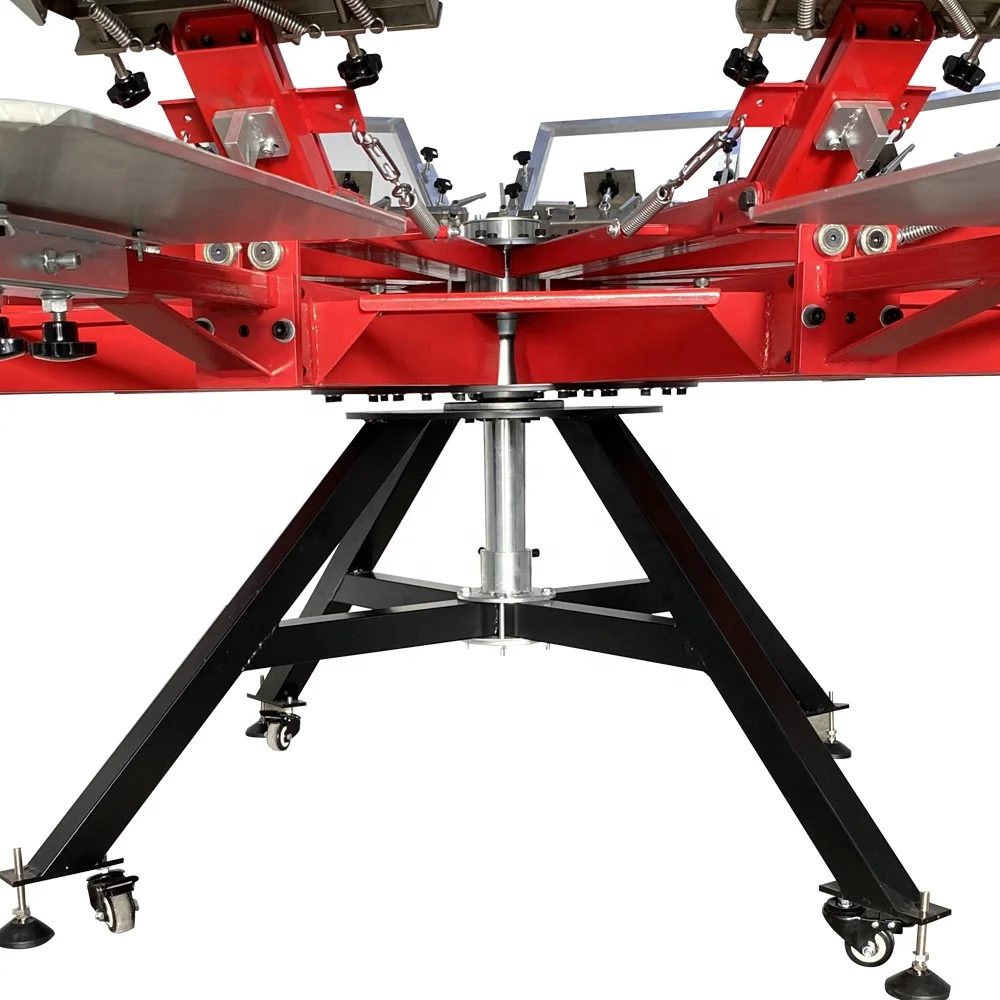

10 Color 10 Station Heavy Duty Double Clamp Manual t Shirt Rotary Screen Printing Machine With Micro Registration

This heavy-duty manual rotary screen printing machine offers exceptional versatility and precision for your textile printing needs.  The double clamp system ensures stable substrate positioning, while micro-registration capability delivers precise color alignment every time.  Perfect for screen printing businesses, custom apparel shops, and textile manufacturers, this machine combines reliability with accurate color reproduction.

  • Overview
  • Related Products
Product Description

Product Application

Its countertops and stencils can rotate the stencil to fine-tune front and rear, left and right, overprint bit accurate and convenient. The machine is widely applied to T-shirts, bags, backpacks, cloth, towel, leather shrinkage deformation of a large quantity of items multicolor accurate overprint.

NS1010-HD Heavy Duty 10 Color 10 Station Screen Printer with Micro Registration

Main performance parameters
Pallet materials
Aluminium

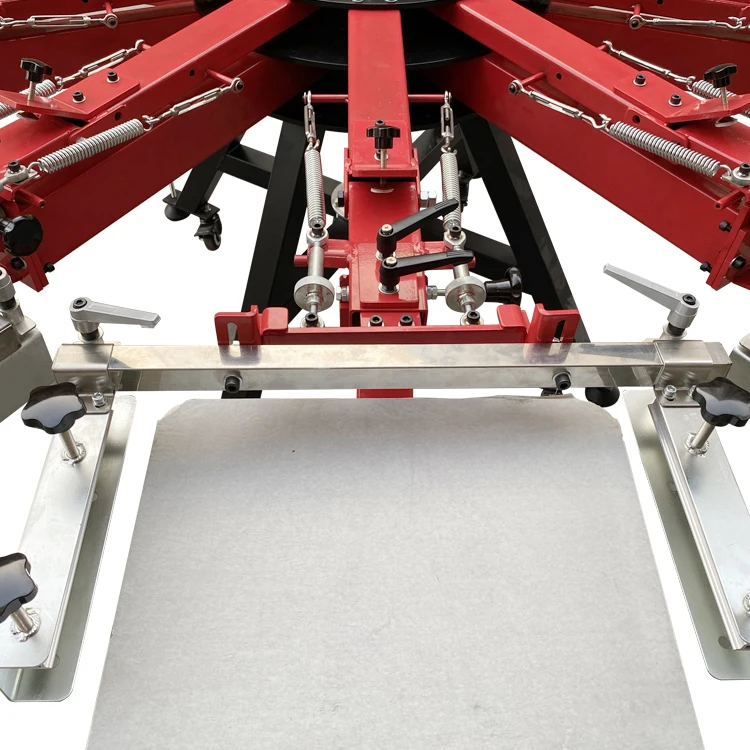

The HD design uses a micro-registration system that adjusts the screw handle to move the screen in all directions, not only for very accurate multi-color registration, but also saves time. Its heavy duty and Self stopper double clamps can keep the machine more stable. 4 color 4 station and 8 color 8 station are all available
Frame size
550*600mm
Max. printing area
540*592mm

Other parameters
Gross weight
600kg
Dimensions(L*W*H)
3110*3110*850mm

Automatic Grade
manual
product 10 color 10 station heavy duty double clamp manual t shirt rotary screen printing machine with micro registration-1
product 10 color 10 station heavy duty double clamp manual t shirt rotary screen printing machine with micro registration-2
product 10 color 10 station heavy duty double clamp manual t shirt rotary screen printing machine with micro registration-3
product 10 color 10 station heavy duty double clamp manual t shirt rotary screen printing machine with micro registration-4
product 10 color 10 station heavy duty double clamp manual t shirt rotary screen printing machine with micro registration-5

Main Features

1) The textiles color printing machine occupy the space is small, involving fewer manpower, and it's easy to print color.

2) The printing base and screen can be rotated, and screen plate can turn backward and forward, left and right, which makes the operation easier and postitioning more accurate.

3) Widely suitable for screen printing t-shirts, garments, towels, lethers, umbrellas and backpacks, etc.

4) Used for printing with heat set ink, rubber cement and other printing inks

5) Location lock that helps lock the arm in place while in the printing position.

6) Heavy weight to keep the machine steady in printing time.

Packing & Delivery
product 10 color 10 station heavy duty double clamp manual t shirt rotary screen printing machine with micro registration-6
product 10 color 10 station heavy duty double clamp manual t shirt rotary screen printing machine with micro registration-7
Certifications
product 10 color 10 station heavy duty double clamp manual t shirt rotary screen printing machine with micro registration-8
product 10 color 10 station heavy duty double clamp manual t shirt rotary screen printing machine with micro registration-9
product 10 color 10 station heavy duty double clamp manual t shirt rotary screen printing machine with micro registration-10
Our Service
product 10 color 10 station heavy duty double clamp manual t shirt rotary screen printing machine with micro registration-11

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

product 10 color 10 station heavy duty double clamp manual t shirt rotary screen printing machine with micro registration-12

After-Sales Service

* Sharing the video to teach how to instal the machine and how to use the machine.

* Engineers available to service machinery overseas.
