Name: Alum table
Brand: RUIDa
Original: China(mainland)
Aluminium table is more durable and high temperature resistance.

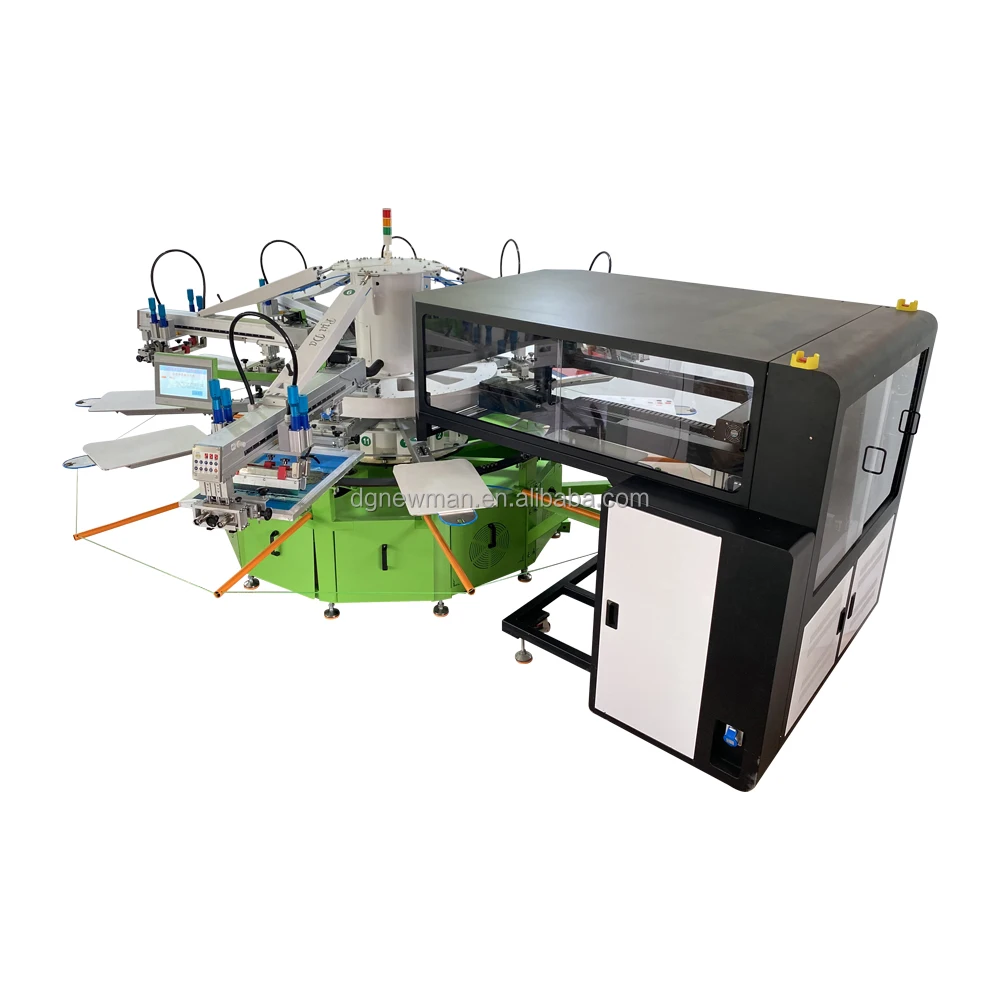

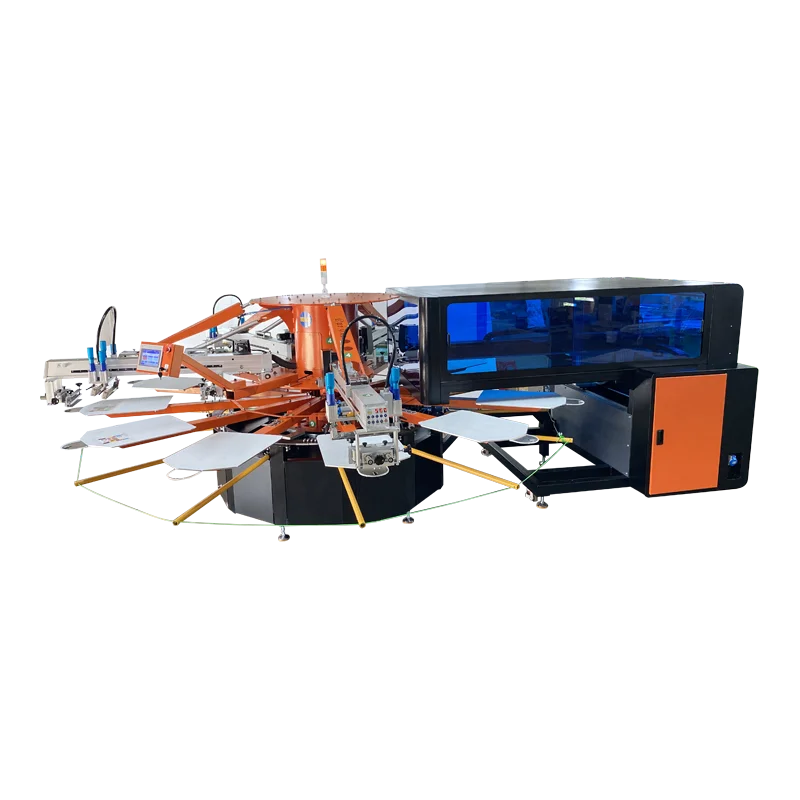

Automatic 4 Color 12 Stations Screen Printing Machine With Hybrid Digital Printing Machine
This advanced hybrid printing solution combines the efficiency of automatic screen printing with the versatility of digital printing technology. The automatic screen printing component ensures consistent, precise results across multiple substrates, while the integrated digital printing system allows for intricate designs and variable data printing. Perfect for commercial printing operations, garment manufacturers, and industrial applications, this hybrid machine offers the best of both worlds - the durability and cost-effectiveness of screen printing with the flexibility and detail of digital printing.
- Overview
- Related Products
Product Description
Product Application

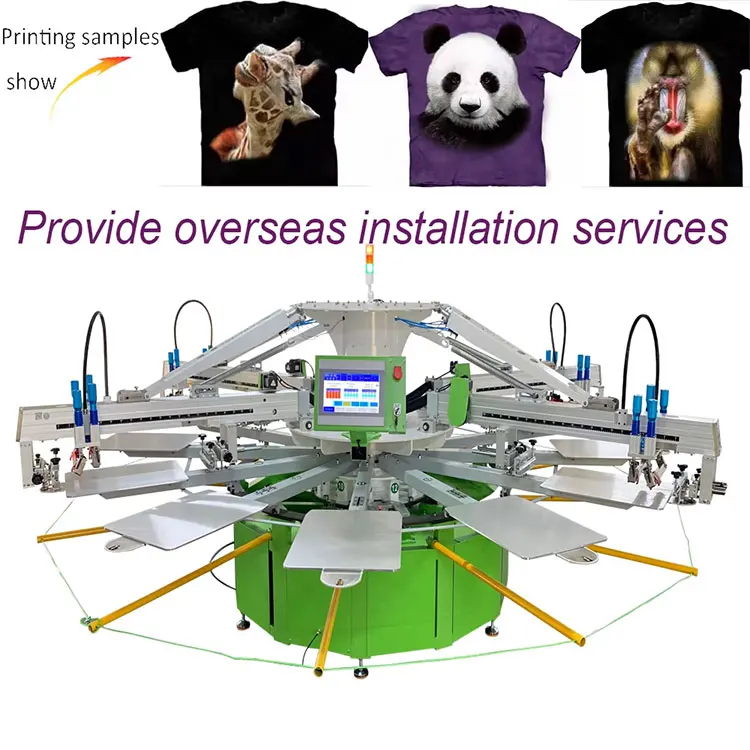

• 4 color 12 stations automatic T shirt silk screen printing machine • Pallet size : 450x600mm
• Max frame size: 500X700mm
• Max printing area: 400x500
• Machine diameter: 3000mm• Voltage：220v• Phase：3PH/2PH• Automatic Grade: Automatic• Gross Weight : 1100KG• Gross Power: 16KW with 4pcs flash dryer ND606 max heating area 50x60cm• Packing : 3 strong plywood box(143*138*170CM 3.355CBM) (105*128*80CM 1.075CBM )(116*52*70CM 0.422CBM) total 5.047cbm
Main Features
Hybrid Digital Printing MachineEquipment model:Digital Printing Machine Working environment :Temperature:20°C~28°C Print Heads: 4 heads / Epson I3200 Working environmen :Humidity40%~60% Ink colors: Cyan, Magenta, Yellow, BlackPrint mode:Unidirectional and waveform bidirectionalMax. print area: 500 mm x 700 mm Applicable fabrics:Cotton, linen, nylon, terylene Production speed:± 200 pcs per hourRIPsoftware :Photo Print/Wasatch/Neostampa special/ printing RIP softwareMaximum thickness of medium: 25 mmPrintheadmaintenance: Automatic moisturizing, automatic cleaning, automatic scraping system Dimension (LxWxH):1820 mm x 1560 mm x 1300 mm Input format:JPEG/TIFF file format RGB/CMYK color modeMachine Weight:1500 kg Printing resolution:720 x 720 DPI;720 x 1080 DPI;360 x 1080DPI Power requirement:AC220V/single-phase；/50/60HZ Ink type / capacity:Textile pigment ink；5L Power consumption:0~ 400 W Ink supply system :Automatic negative pressure ink supply system200 to 250pcs/hour
Automatic T shirt silk screen printing machine

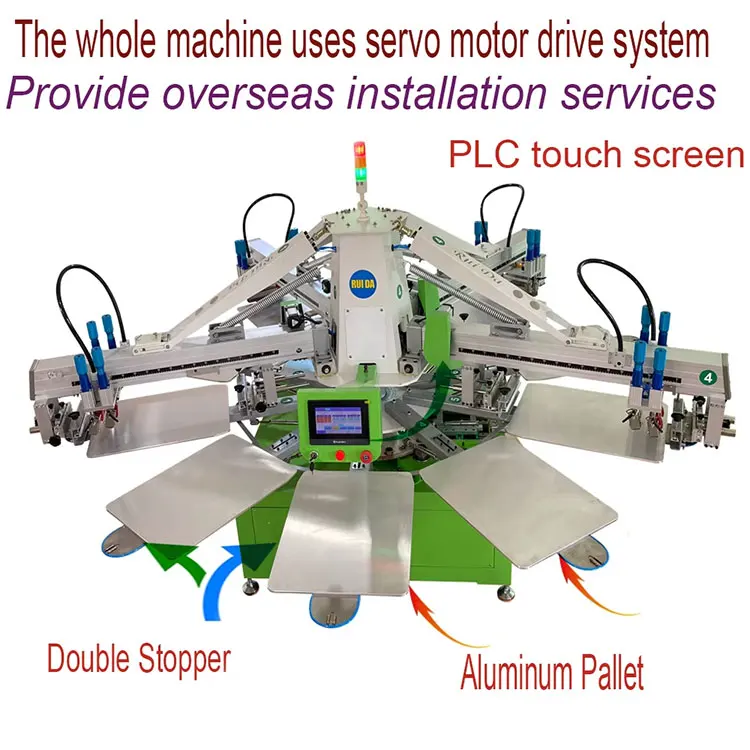

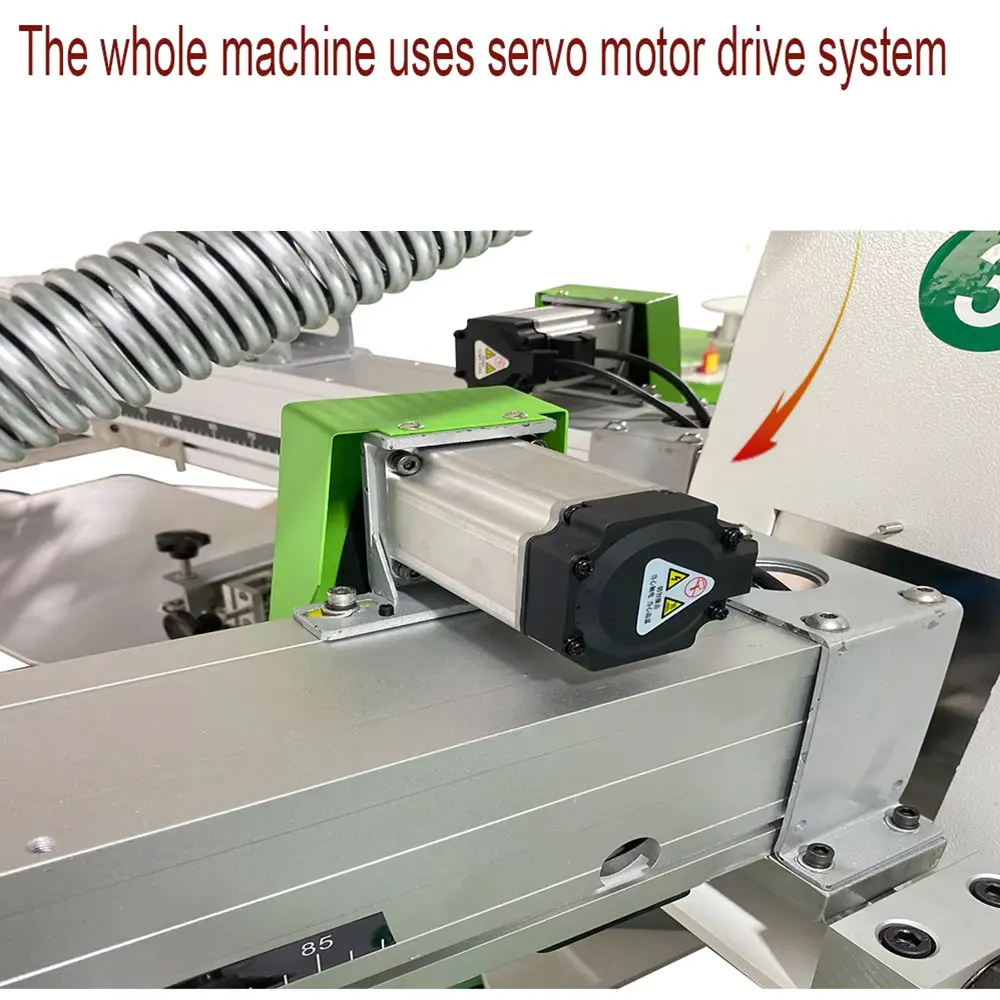

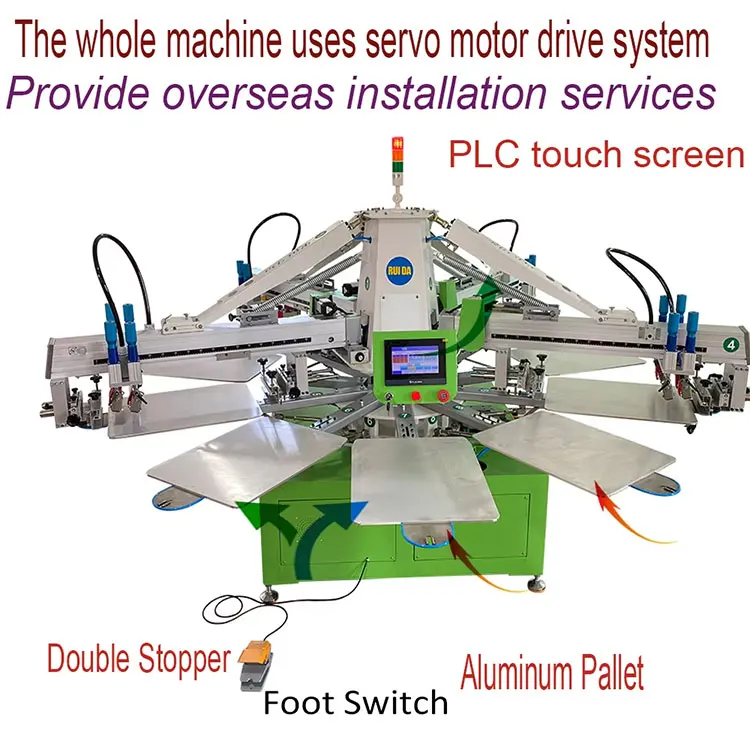

1、Aluminum pallets， the size can customized;2、Squeegees and flood bar can be set up to 7 times,which with electric movement with ac variator ;3、Independent control panel on all print heads;4、Print head central elevation ,it can adjustable the printing height;5、Frequency drive rotation system for a quick and smooth index;6、Print heads with high-lift position for quick and easy screen cleaning;7、Central control panel with polycromatic LCD touch screen, it support several languages, operation easy and conveniently ;8、Micro registration screen system with vernier scale，Pin positioning plate with high precision，the accuracy error of the machine sleeve is between ±0.05 9、Individual controls for managing print and flood speed, height and angle of the squeegees and stroke length.10、servo motor system to ensure stable and smooth operation .11、the output of this machine can be 600-900pcs, you only need two workers to work for it,one to put the shirt onto platen, and other to take it off. it is very effecient.12、Alarm system and record，it will alarm ahd show where's wrong when occuar problem ,which will make quickly revise and work normally 。13、 automatic sensor flash dryer and laser locator. 14、Printing color number can be customized from 1 to 10 as per customer’s need.
Feature:
1、Aluminum pallets， the size can customized;2、Squeegees and flood bar can be set up to 7 times,which with electric movement with ac variator ;3、Independent control panel on all print heads;4、Print head central elevation ,it can adjustable the printing height;5、Frequency drive rotation system for a quick and smooth index;6、Print heads with high-lift position for quick and easy screen cleaning;7、Central control panel with polycromatic LCD touch screen, it support several languages, operation easy and conveniently ;8、Micro registration screen system with vernier scale，Pin positioning plate with high precision，the accuracy error of the machine sleeve is between ±0.05 9、Individual controls for managing print and flood speed, height and angle of the squeegees and stroke length.10、servo motor system to ensure stable and smooth operation .11、the output of this machine can be 600-900pcs, you only need two workers to work for it,one to put the shirt onto platen, and other to take it off. it is very effecient.12、Alarm system and record，it will alarm ahd show where's wrong when occuar problem ,which will make quickly revise and work normally.13、 automatic sensor flash dryer and laser locator.
Certifications
Detailed Images
Automatic 4 Color 10 Station Screen Printer with Micro Registration
Automatic 4 Color10 Station Screen Printer with Micro Registration
Name: Strong rotary type
Brand: RUIDA
Original: China(mainland)
12.9 level high strength screw, very strong materials
Automatic 4 Color 10 Station Screen Printer with Micro Registration
Name: Micro Registration System and double clamps
Brand:RUIDA
Original: China(mainland)
With micro- registration handpiece, it can adjust very accurately for multicolor registration, very easy to operate
Double clamps system can keep the frames more stable.
Automatic 4 Color 10 Station Screen Printer with Micro Registration
Name: Strong base & screen plate
Brand: RUIDA
Original: China(mainland)
Strong base with caster to move freely.
Automatic 4 Color 10 Station Screen Printer with Micro Registration
Name: Drying oven and cooling fan Brand: RUIDA
Original: China(mainland)
Drying oven and cooling fan can be added separately, according your needs.
The size of the pallets can be customized!
For more information, pls kindly contact Jenny:
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service

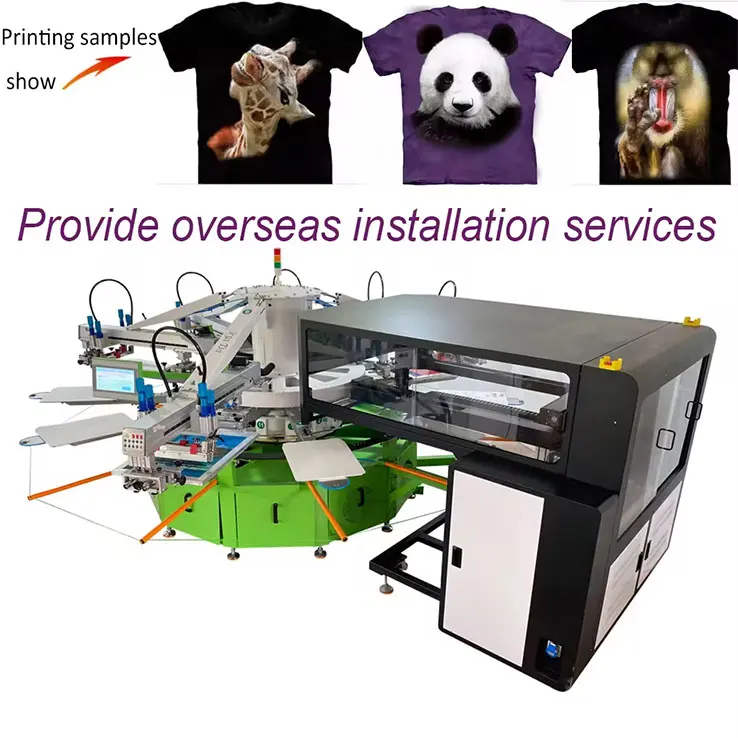

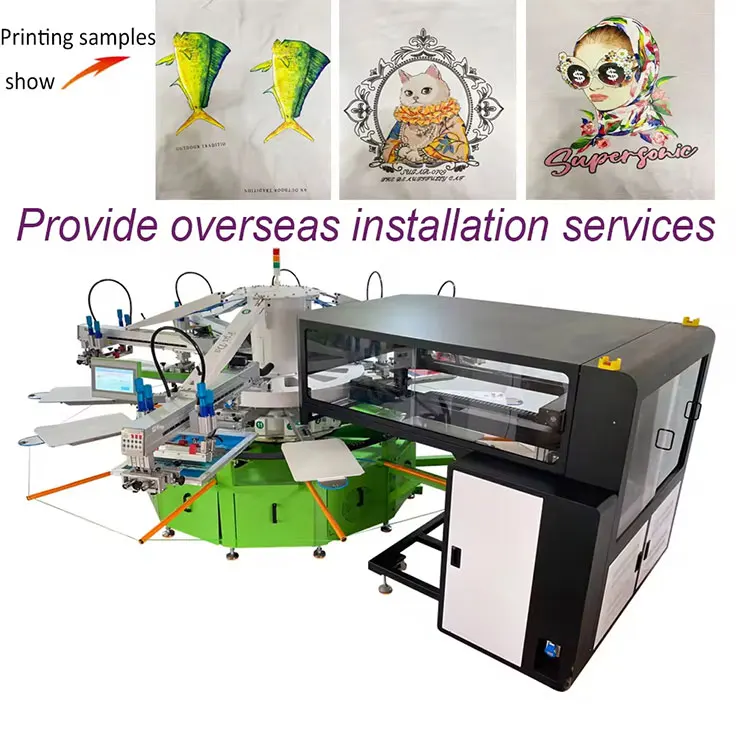

* Sharing the video to teach how to instal the machine and how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging |
||
Size |
2200*2700*1800mm |
|
Weight |
1100kg |
|
Packaging Details
|
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
|
