Automatic High Speed 3 Color 10 Stations Screen Printing Machine with Everything

Automatic High Speed 3 Color 10 Stations Screen Printing Machine with Everything

This high-performance automatic screen printing machine combines efficiency and precision with its advanced 3-color, 10-station configuration. Designed for industrial-scale production, it delivers exceptional print quality at high speeds while maintaining consistent results. Perfect for textile printing facilities, the machine features automatic registration, quick color changes, and minimal maintenance requirements.

Overview
Related Products

Product Description

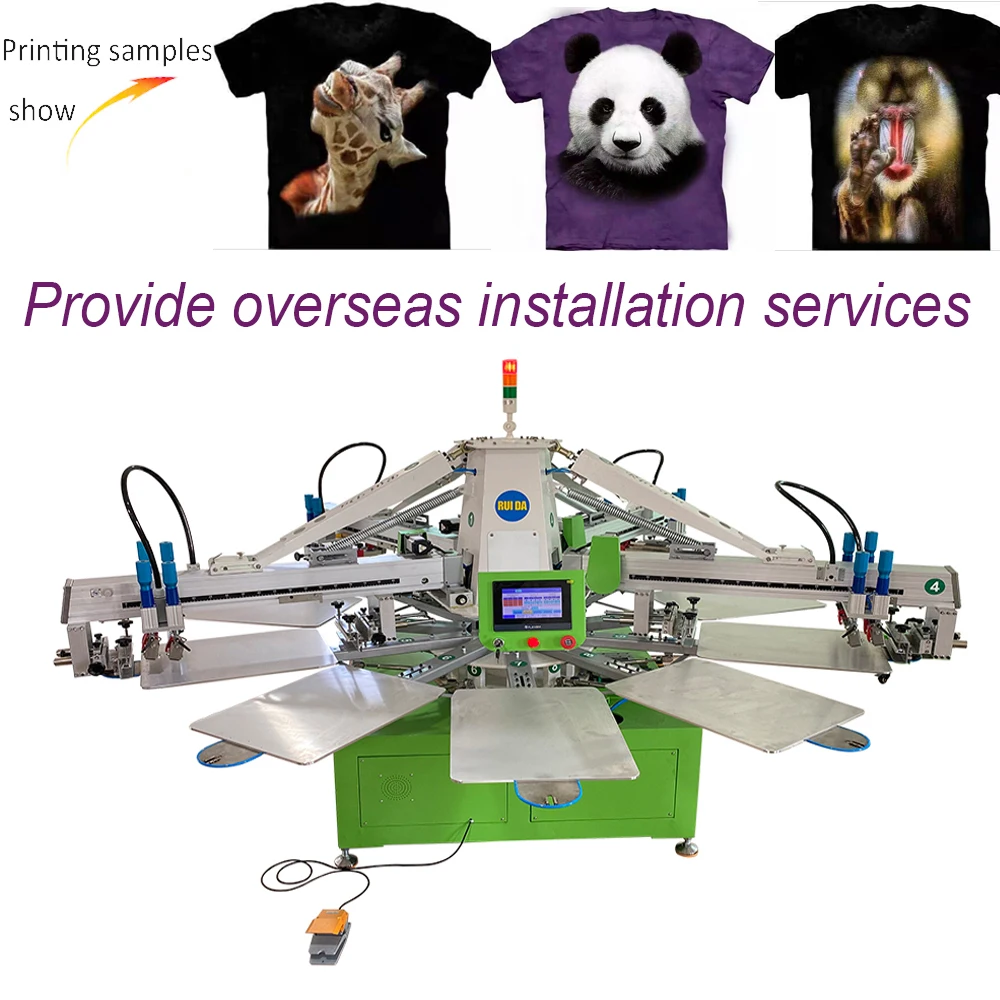

product automatic high speed 3 color 10 stations screen printing machine with everything-1

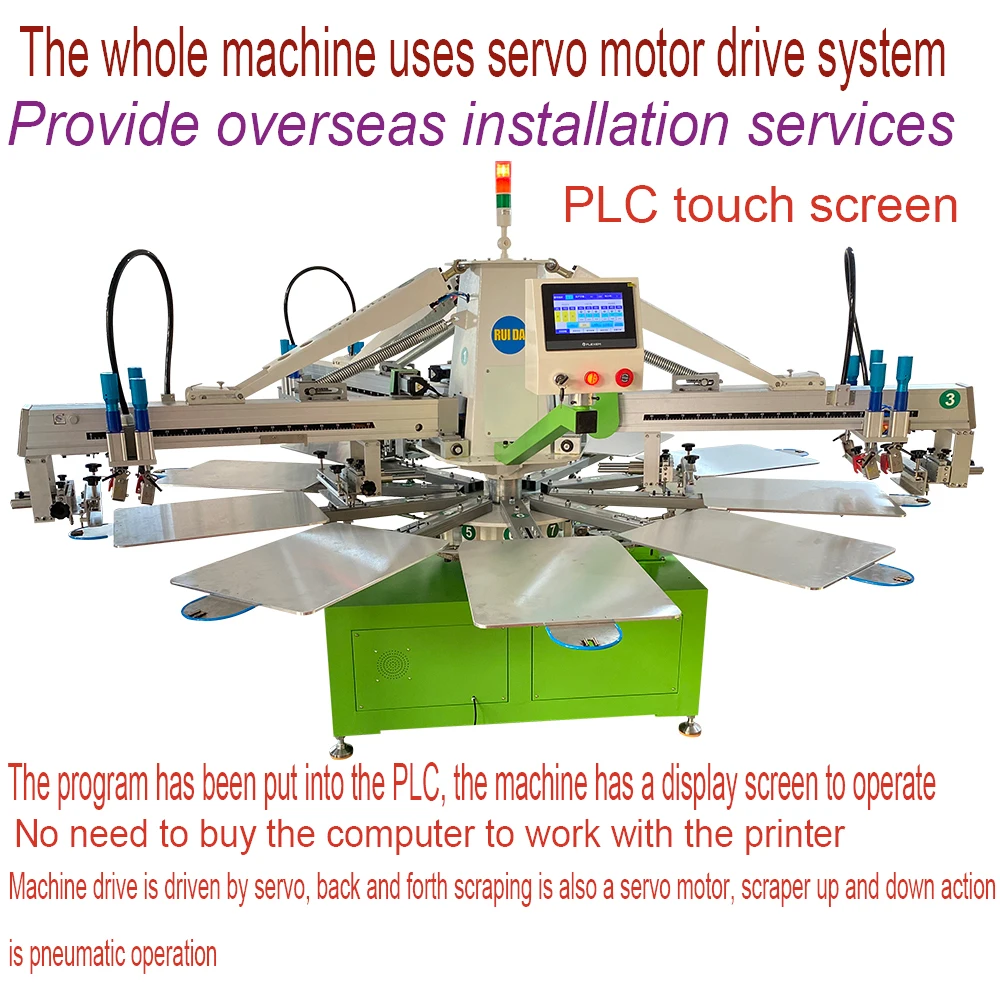

product automatic high speed 3 color 10 stations screen printing machine with everything-2

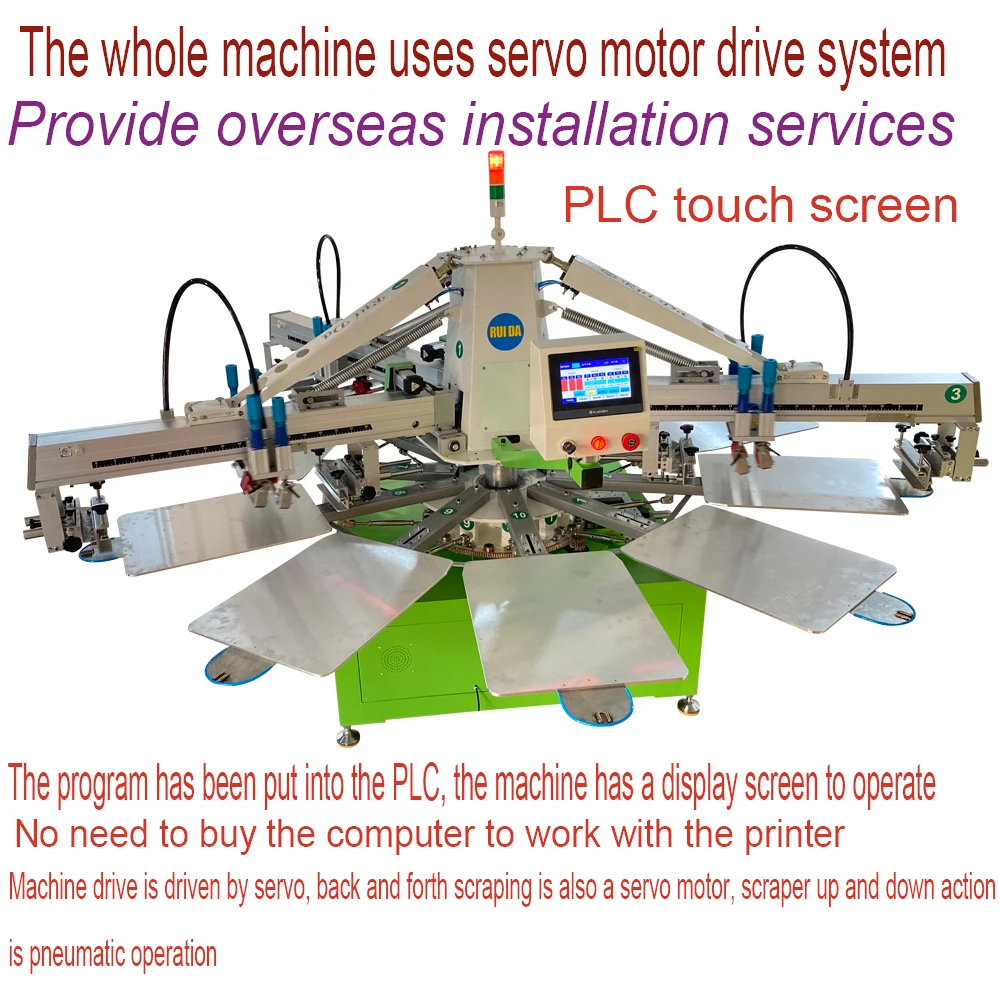

product automatic high speed 3 color 10 stations screen printing machine with everything-3

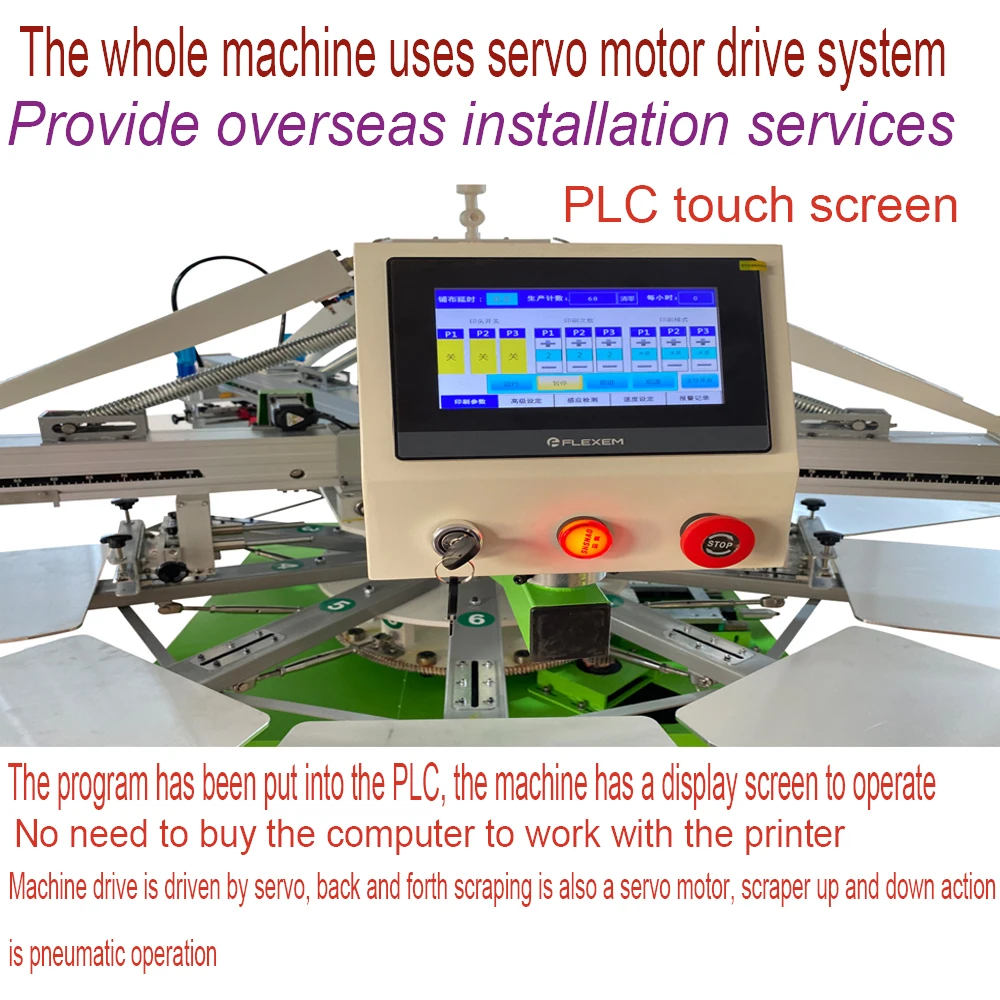

product automatic high speed 3 color 10 stations screen printing machine with everything-4

product automatic high speed 3 color 10 stations screen printing machine with everything-5

product automatic high speed 3 color 10 stations screen printing machine with everything-6

product automatic high speed 3 color 10 stations screen printing machine with everything-7

product automatic high speed 3 color 10 stations screen printing machine with everything-8

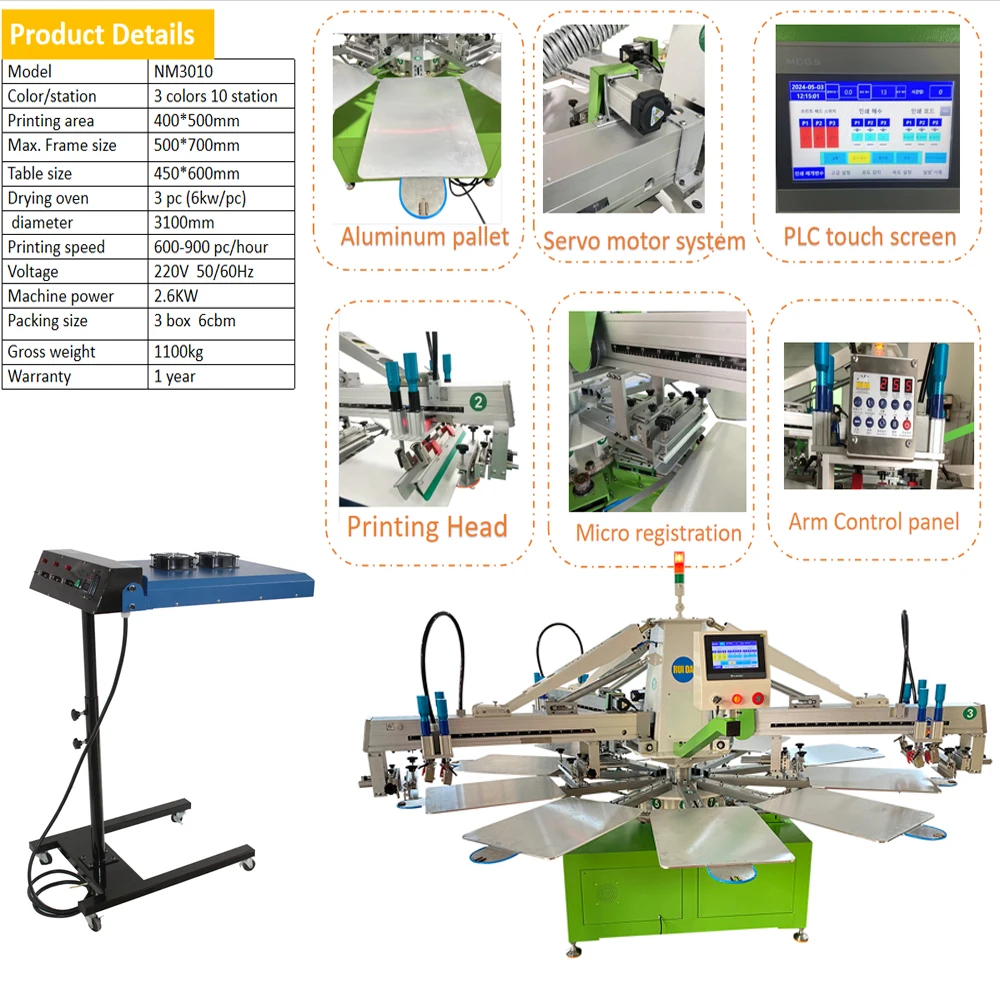

Model	NM-3010
Color	3 color
Pallet area	10 station
Power	2.2KW
Voltage	220V
Phase	3PH/2PH
Pallet size	450x600mm
Max frame size	500x700mm
Packing Size	210027001800mm
Weight	1000kg

product automatic high speed 3 color 10 stations screen printing machine with everything-10

product automatic high speed 3 color 10 stations screen printing machine with everything-11

product automatic high speed 3 color 10 stations screen printing machine with everything-12

MD800 LED Vacuum Silk Screen Exposure UnitPower : 110V/220V/450WLight :LED lightMax Frame dimension : 600*900mmGross Weight : 115KGPacking : 1 plywood box (L119 x W94x H44cm)

product automatic high speed 3 color 10 stations screen printing machine with everything-13

NA108 pneumatic screen stretcher Max area:1200*1500mm，net weight:150KGS, gross weight:195kgs,package:plywood case

product automatic high speed 3 color 10 stations screen printing machine with everything-14

Big Drying CabinetPower : 220V, 2000WMax.screen plate drying quantity : 5pcsMax.frame size : 700*1000MM

product automatic high speed 3 color 10 stations screen printing machine with everything-15

Description Automatic disc printing machine for all kinds of printing materials ,Glue,pulp,thick board,ink ,foaming , hot solid ink,rotten flowers,four color dot.Fabric fit pure cotton ,knitted cloth ,rainproof cloth,nylon cloth ,leather shoe material ,film,PVC,acrylic,foam board and so on.

Save labor and flower quality compared to manual printing quantity is more stable,and multi-color one-time completion can be achieved without affecting the output;the operation is more flexible ,increase the output and improve your competitiveness ,this machine only needs 2 people to operable.

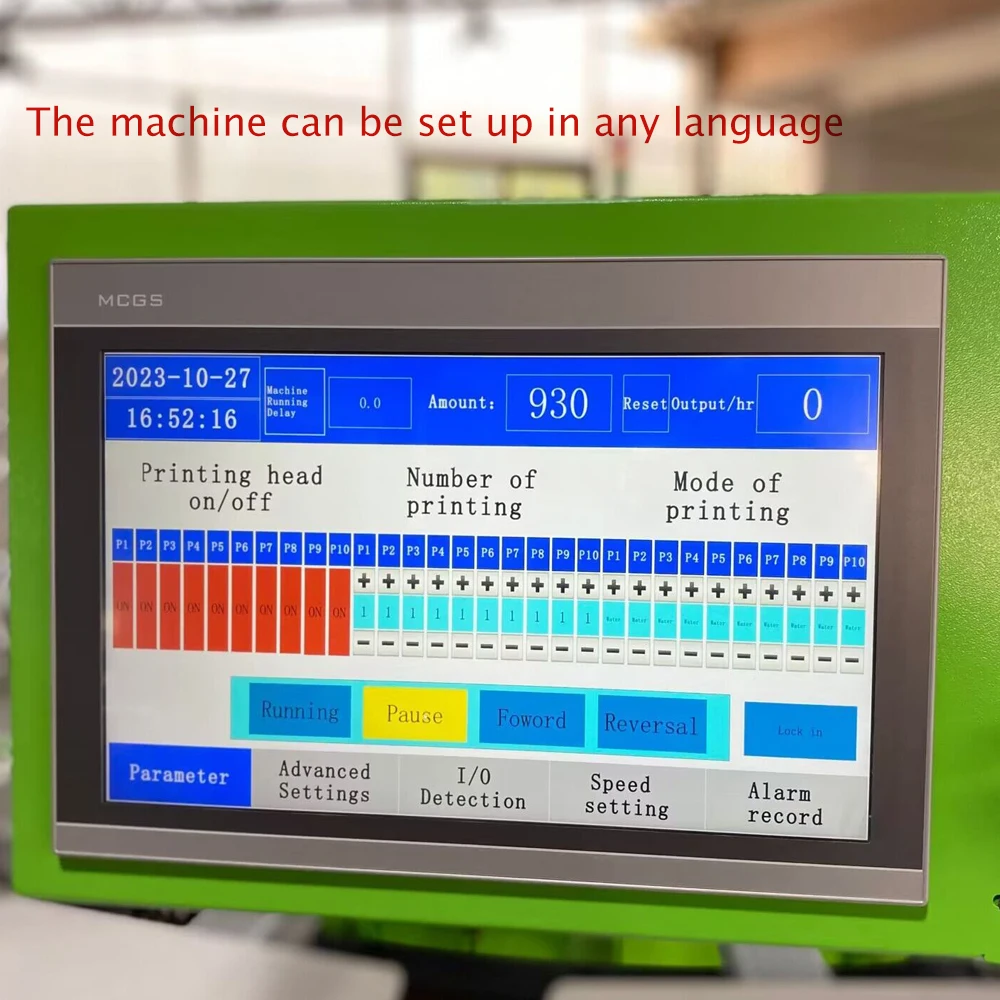

Feature: 1、Aluminum pallets， the size can customized;2、Squeegees and flood bar can be set up to 7 times,which with electric movement with ac variator ;3、Independent control panel on all print heads;4、Print head central elevation ,it can adjustable the printing height;5、Frequency drive rotation system for a quick and smooth index;6、Print heads with high-lift position for quick and easy screen cleaning;7、Central control panel with polycromatic LCD touch screen, it support several languages, operation easy and conveniently ;8、Micro registration screen system with vernier scale，Pin positioning plate with high precision，the accuracy error of the machine sleeve is between ±0.05 9、Individual controls for managing print and flood speed, height and angle of the squeegees and stroke length.10、servo motor system to ensure stable and smooth operation .11、the output of this machine can be 600-900pcs, you only need two workers to work for it,one to put the shirt onto platen, and other to take it off. it is very effecient.12、Alarm system and record，it will alarm ahd show where's wrong when occuar problem ,which will make quickly revise and work normally.13、 automatic sensor flash dryer and laser locator.
