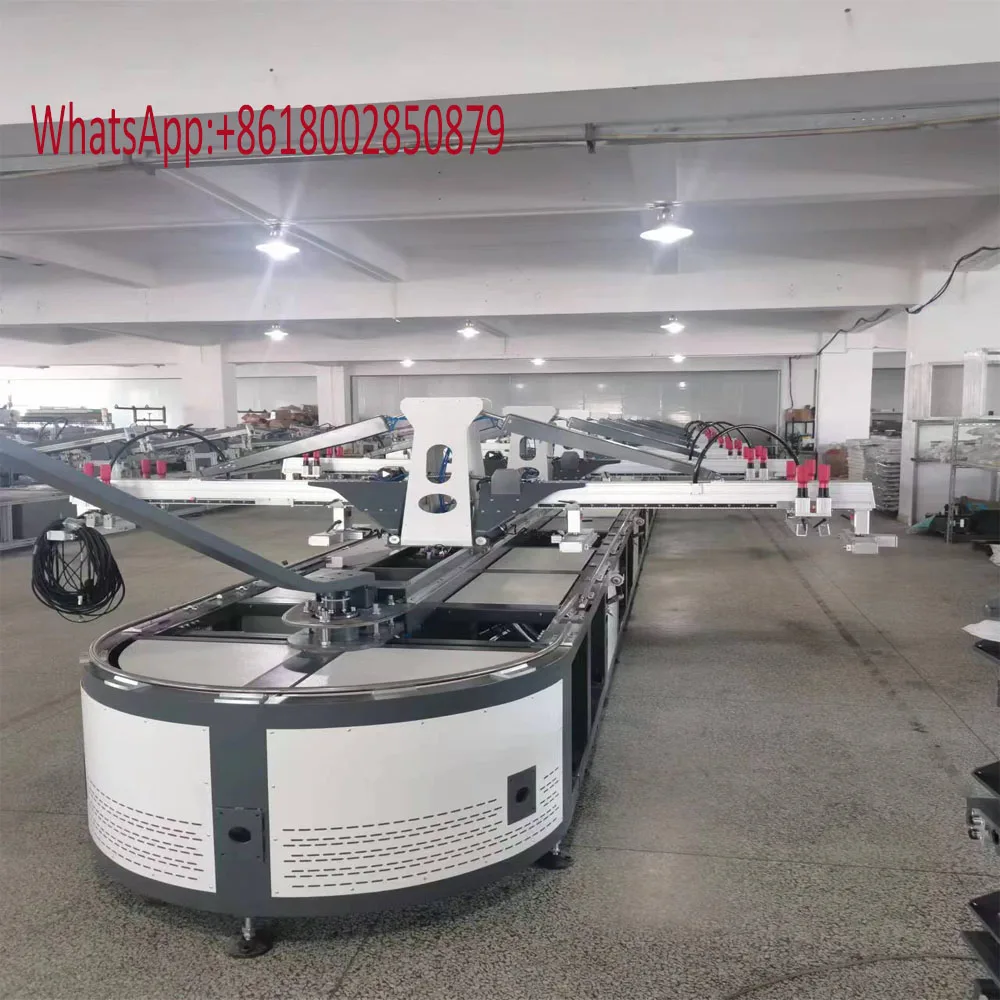

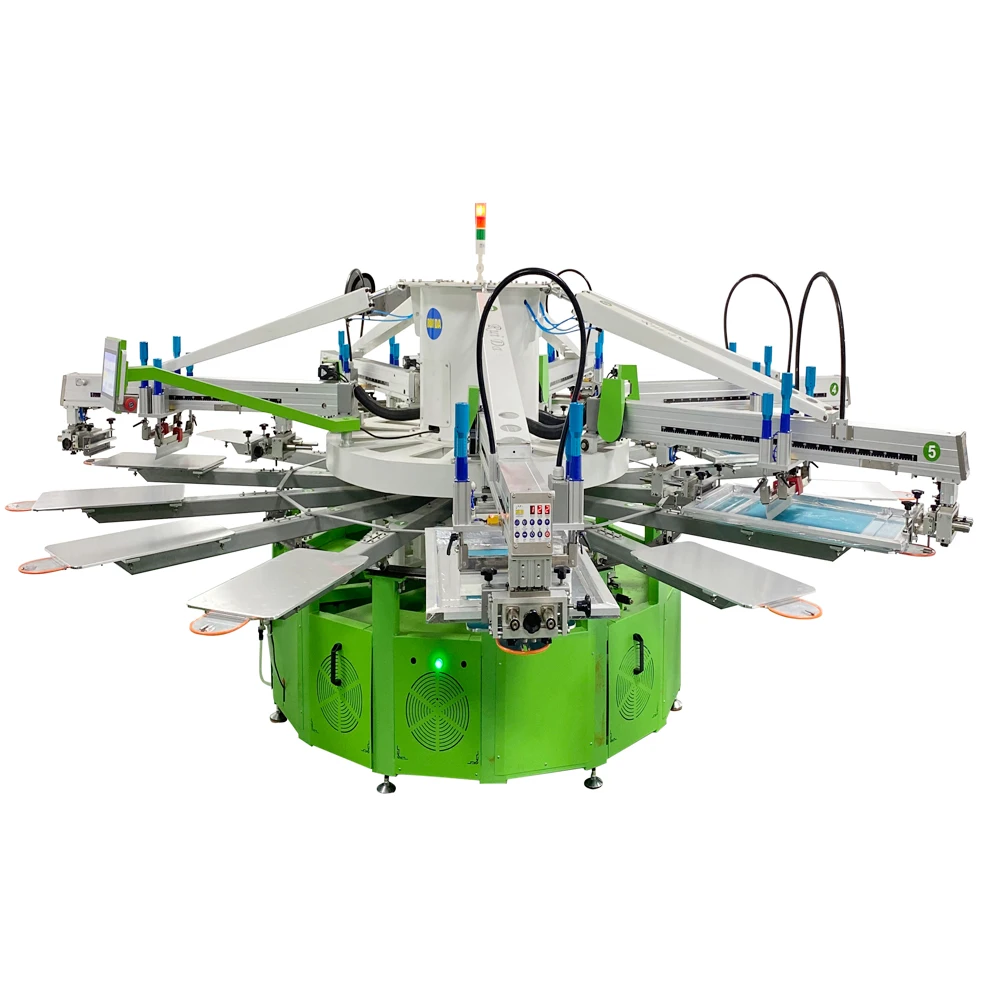

6 Colors Automatic Oval Screen Printing Machine

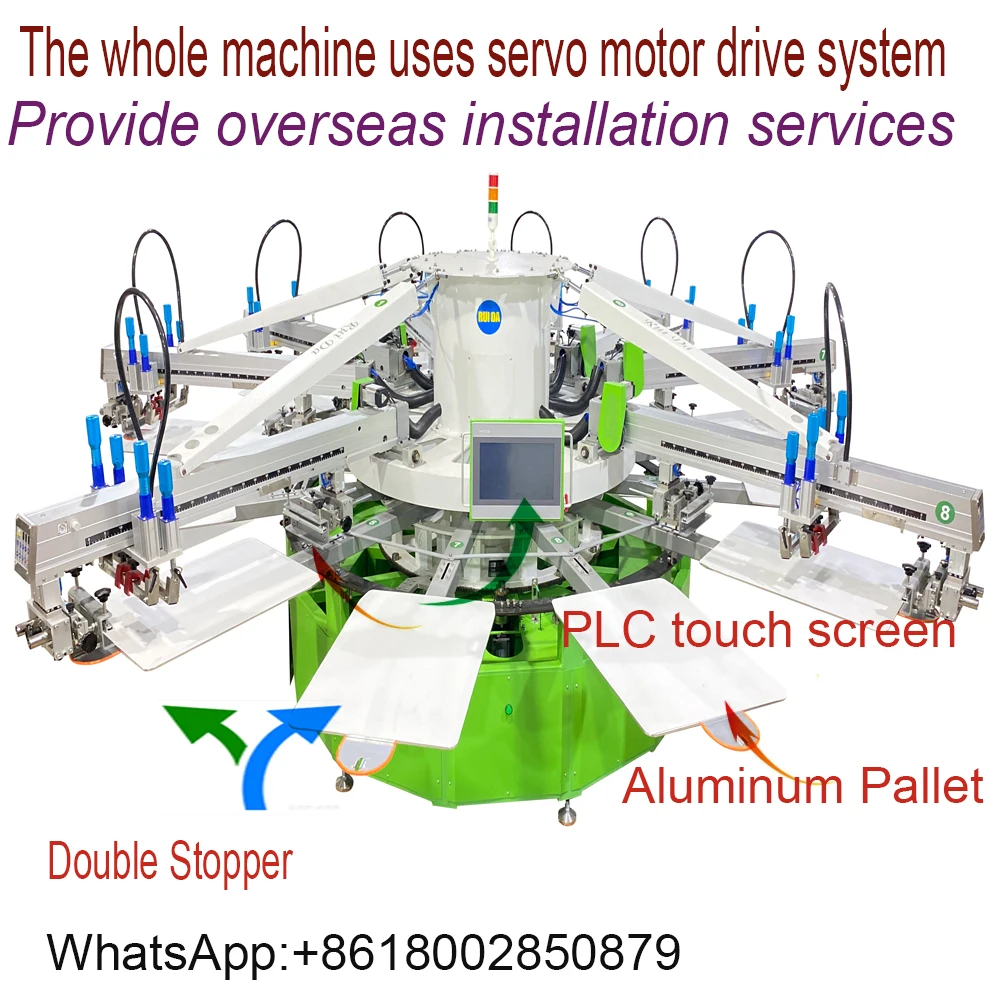

This advanced automatic oval screen printing machine offers exceptional versatility with its 6-color capability, making it ideal for high-volume production of garments and textiles.  The oval-shaped design maximizes production efficiency by allowing continuous loading and unloading while maintaining consistent print quality.  The machine's automated features include an index system, flash cure units, and pneumatic screen lift, reducing operator fatigue and increasing throughput.

  • Overview
  • Related Products
Product Description
product 6 colors automatic oval screen printing machine-1
product 6 colors automatic oval screen printing machine-2

Title goes here.

• 6 color 24 stations automatic T shirt silk screen printing machine with 6 flash dryersWill give 1 pcs air compressor • Pallet size : 630*850mm • Max printing area: 500x700mm• Voltage:AC380V 3Phase• Phase:3PH/2PH• Automatic Grade: Automatic• Printer Power: 12KWFlash Dryer Power:12KW/PCTotal Power:108KW consumption:(m3/minute)0.05Air pressure specification0.6Mpa/0.8Mpa• Packaging Details: 6 strong plywood box total 16cbms
product 6 colors automatic oval screen printing machine-3
product 6 colors automatic oval screen printing machine-4
product 6 colors automatic oval screen printing machine-5
product 6 colors automatic oval screen printing machine-6
product 6 colors automatic oval screen printing machine-7
product 6 colors automatic oval screen printing machine-8
product 6 colors automatic oval screen printing machine-9
Description:A screen printing machine must be robust, fast, reliable and precise. The RUIDA PRINT is all of that and more. It is a performer.

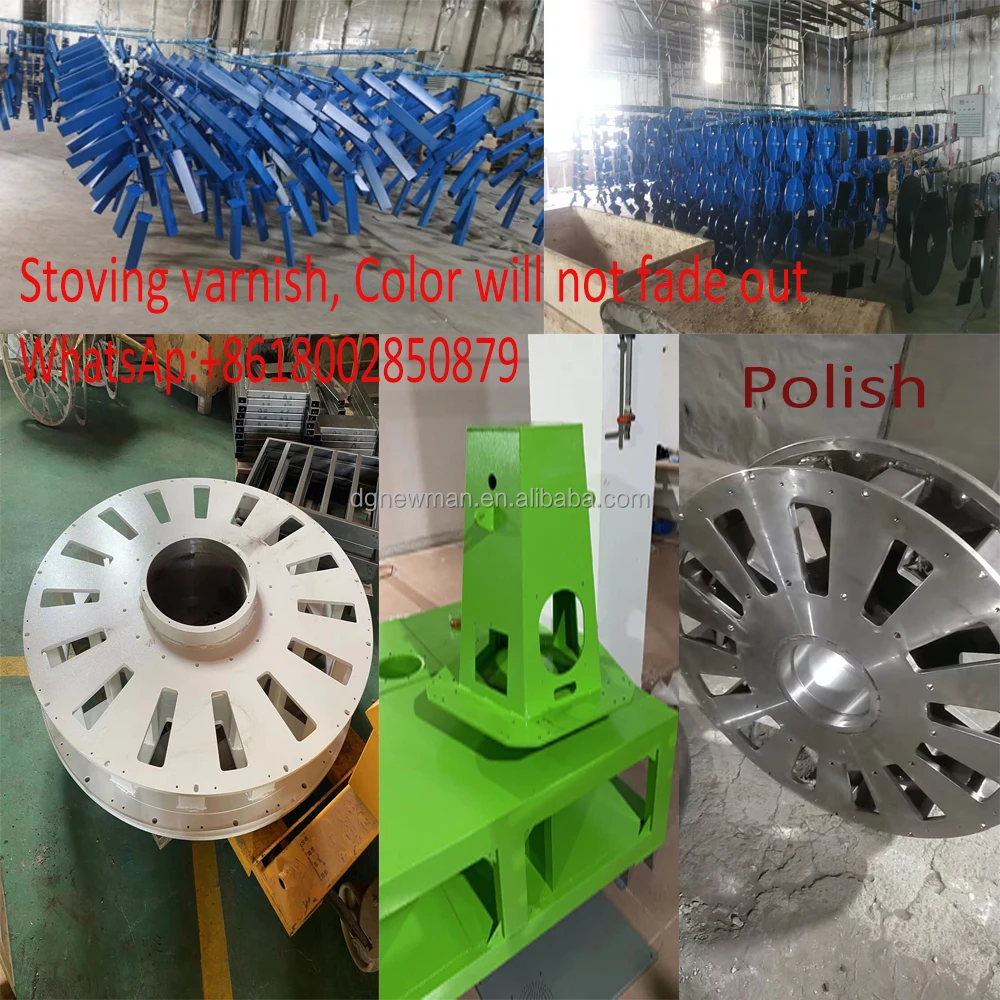

Elegant, the RUIDA PRINT draws its strengths from the clever engineering applied on to it by RUIDA. This screen printing machine uses top quality materials and best practices during its production. Innovating many times the processes and technics RUIDA has improved the quality of its screen printing machines for over 3 decades now. Today the aim is the same that it was in the beginning as S. Roque. to create, produce and deliver top quality machines that last for decades.
With a maximum production of 1000 pieces per hour, this screen printing machine shows its versatility in the immense configurations in that it can be offered. From a minimum of 8 pallets up to 20 pallets and from 1 color up to a maximum of 18 colors. From 400mm x 500mm up to 700mm x 1000mm the RUIDA PRINT answers the market needs. And has it is the RUIDA slogan, if by any chance a request for a configuration outside the box shows up, “RUIDA creating solutions”.
The RUIDA PRINT was not only built to last for ages and to be precise. It is also a screen printing machine extremely user friendly. It uses proprietary software created with the collaboration of several of our customers. It’s a system built by printers for printers. Every print head has its own control panel but the whole machine can be controlled from the central console. Every preferic (RUIDA flash, RUIDA foil, RUIDA flock) is connected to the machine structure and all the flux of information can be controlled from this central console allowing for very fast setup times. As an addition, using the PRU (Positive Registration Unit) the setup times will be even smaller making the whole operation more efficient.
So as a sum up, if you print and need more, most probably the screen printing machine RUIDA print You is the answer for you. Fast, reliable, precise and durable. The RUIDA PRINT adapts to your screen printing needs and increases the value of your finished product.
product 6 colors automatic oval screen printing machine-10
product 6 colors automatic oval screen printing machine-11

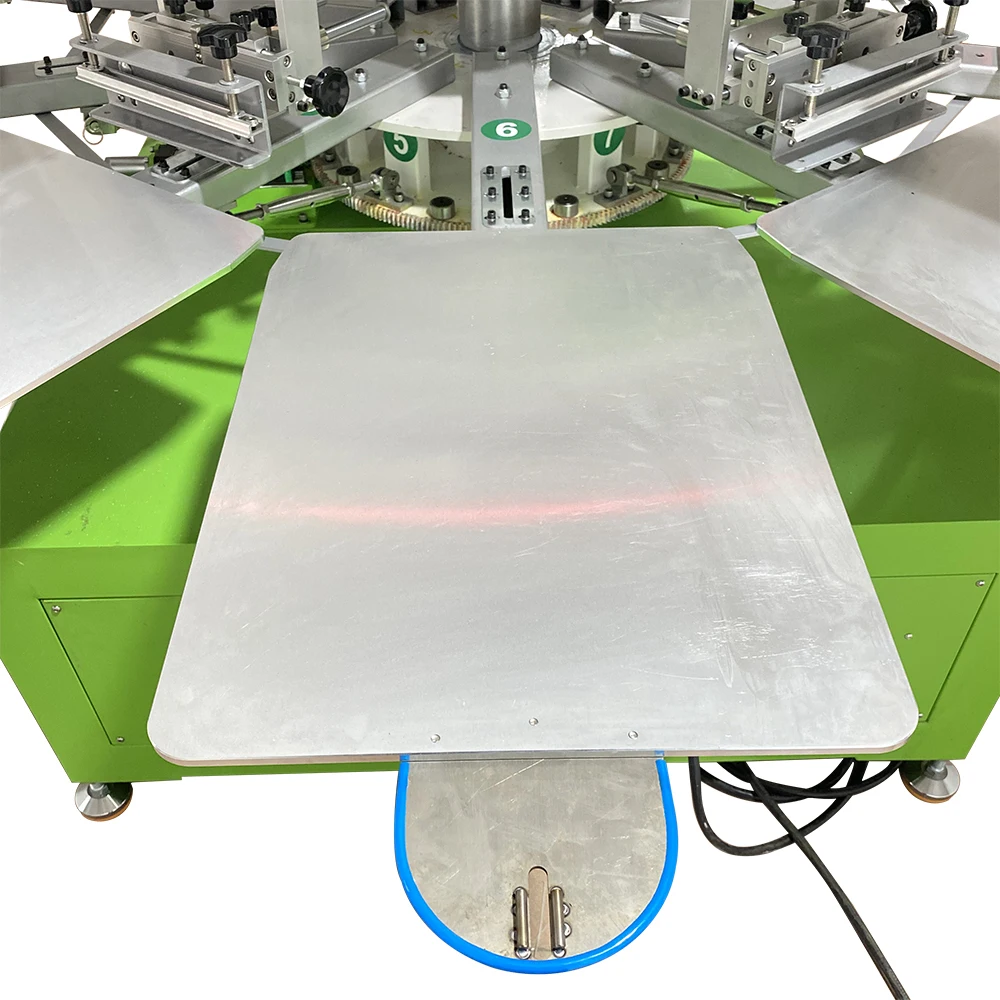

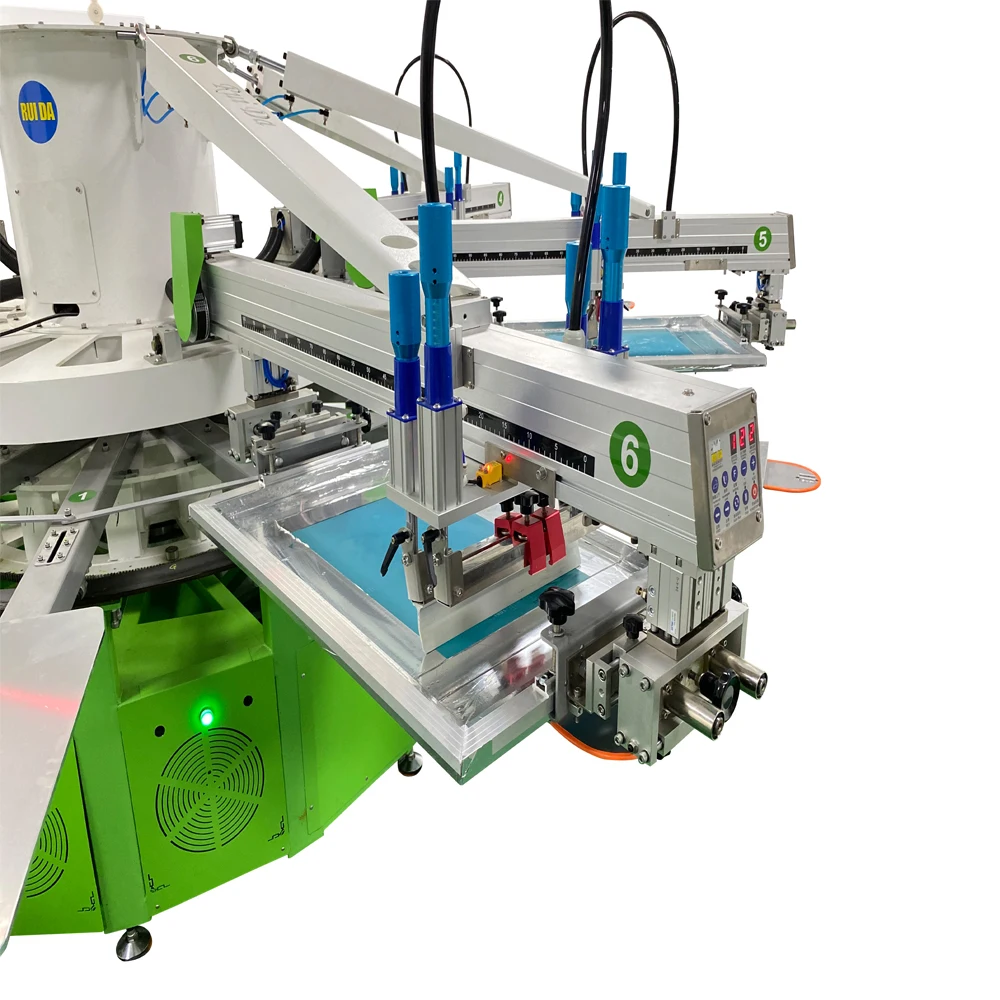

Features:Aluminum honeycomb pallets;Squeegees with electric movement with ac variator;Independent control panel on all print heads;Choice of pneumatic screen holder: ”U” clamp or pin system;Print head central elevation;Frequency drive rotation system for a quick and smooth index;Print heads with high-lift position for quick and easy screen cleaning;Central control panel with polycromatic LCD touch screen;Micro registration screen system with vernier scale;Individual controls for managing print and flood speed, height and angle of the squeegees and stroke length.
Options:YOU Vacuum Version, with Suction Pallets;Laser Markers;Power and Control Connections for Flash are built into the machine base;Flash Cure units;Compatible with RUIDA FLOCK;Compatible with RUIDA FOIL;Skip Function.
product 6 colors automatic oval screen printing machine-12
product 6 colors automatic oval screen printing machine-13
product 6 colors automatic oval screen printing machine-14
product 6 colors automatic oval screen printing machine-15
product 6 colors automatic oval screen printing machine-16
product 6 colors automatic oval screen printing machine-17
Packing & Delivery
product 6 colors automatic oval screen printing machine-18
Company Profile
product 6 colors automatic oval screen printing machine-19
FAQ
product 6 colors automatic oval screen printing machine-20
product 6 colors automatic oval screen printing machine-21
product 6 colors automatic oval screen printing machine-22
product 6 colors automatic oval screen printing machine-23
product 6 colors automatic oval screen printing machine-24
product 6 colors automatic oval screen printing machine-25
