DGRUIDA 10 Color 10 Station Manual Full Set Screen Printing Machine Equipment ND2565 Tunnel Dryer Machine
The integrated tunnel dryer ensures proper curing and drying of inks, preventing smudging and delivering professional-quality prints. Built with industrial-grade materials, this equipment is ideal for medium to large-scale printing operations, custom apparel shops, and manufacturing facilities. Perfect for printing on t-shirts, textiles, and other materials requiring multi-color applications.
- Overview
- Related Products
Product Description
NS1010-ESU FULL SET SCREEN PRINTER

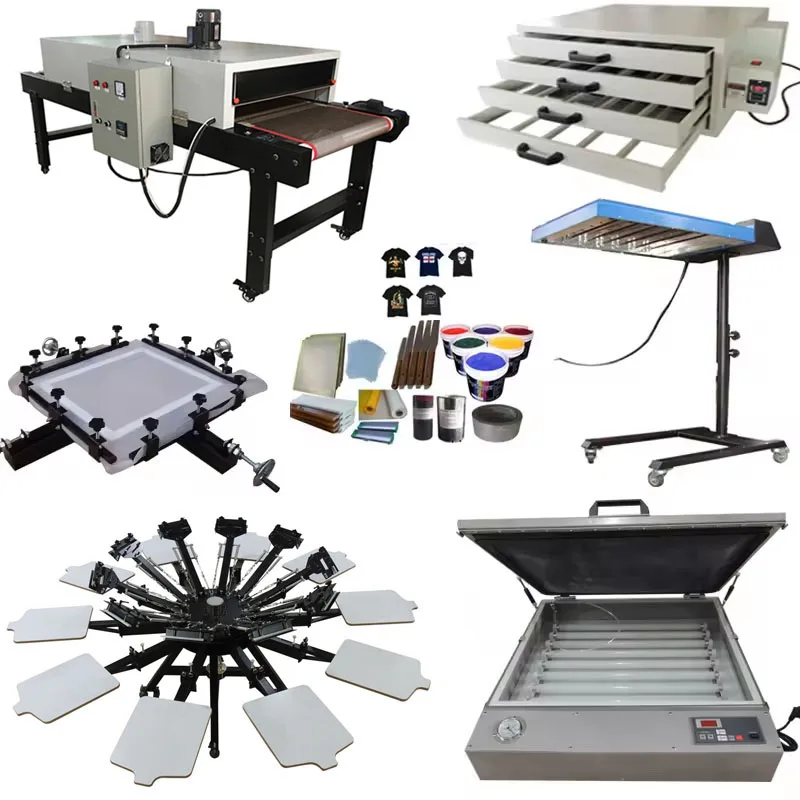

Include 1pc NS1010-ESU screen printer, 1pc ND2565 tunnel dryer machine, 1pc ND606 flash dryer, 1pc MD5060 exposure unit, 1pc drying cabinet, 1pc NA104 Manual hand screen stretcher.
NS1010-ESU pallet size |
450*610mm |
||||||
ND2565 Tunnel Dryer Machine |
Heating area: 150*65cm |
||||||
ND606 IR Automatic Flash Dryer |
Heating area: 500*600mm |
||||||
MD5060-UV Exposure Unit |
Max.frame size: 500*600mm |
||||||
Drying Cabinet |
Max.frame size : 64*53*4.5cm |
||||||
NA104 Manual hand screen stretcher |
Max area: 60 x 60cm |
||||||

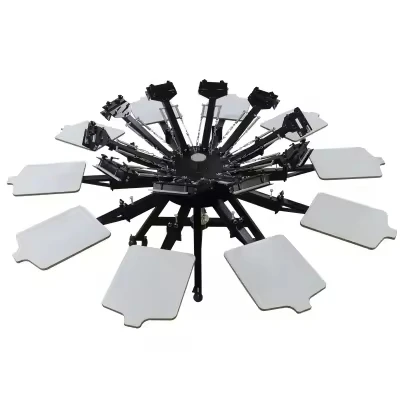

NS1010-ESU 10 color 10 station screen printer with strong base
• Pallet size : 450 x 610mm
• Pallet material: wood
• Adjusted your silk frame on exact place with the easy Adjusting System; Detachable shirt boards.
• Shirtboard and screen can rotate independently
• Gross Weight : 420KG
• Packing : 168*168*113cm, 3.19CBM (one plywooden box)
• Pallet material: wood
• Adjusted your silk frame on exact place with the easy Adjusting System; Detachable shirt boards.
• Shirtboard and screen can rotate independently
• Gross Weight : 420KG
• Packing : 168*168*113cm, 3.19CBM (one plywooden box)

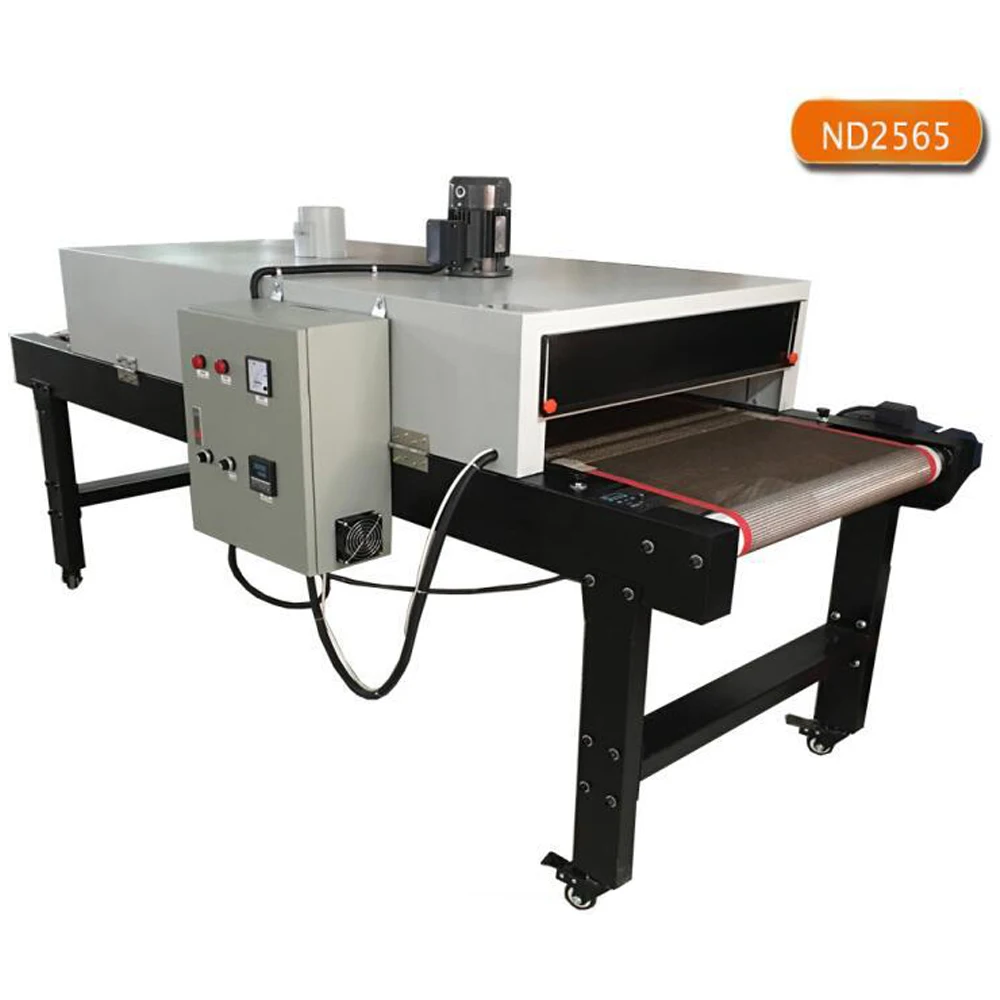

ND2565 Tunnel Dryer Machine
• Machine Legth : 250CM
• Heating area: 150*65cm
• IR heating lamp
• Power: 220V 7.2KW
• Temperature range: 0-220 Degree
• Heating area: 150*65cm
• IR heating lamp
• Power: 220V 7.2KW
• Temperature range: 0-220 Degree
• Package size: 259*111*86cm, 2.47cbm
• Gross weight: 287kg
• Gross weight: 287kg

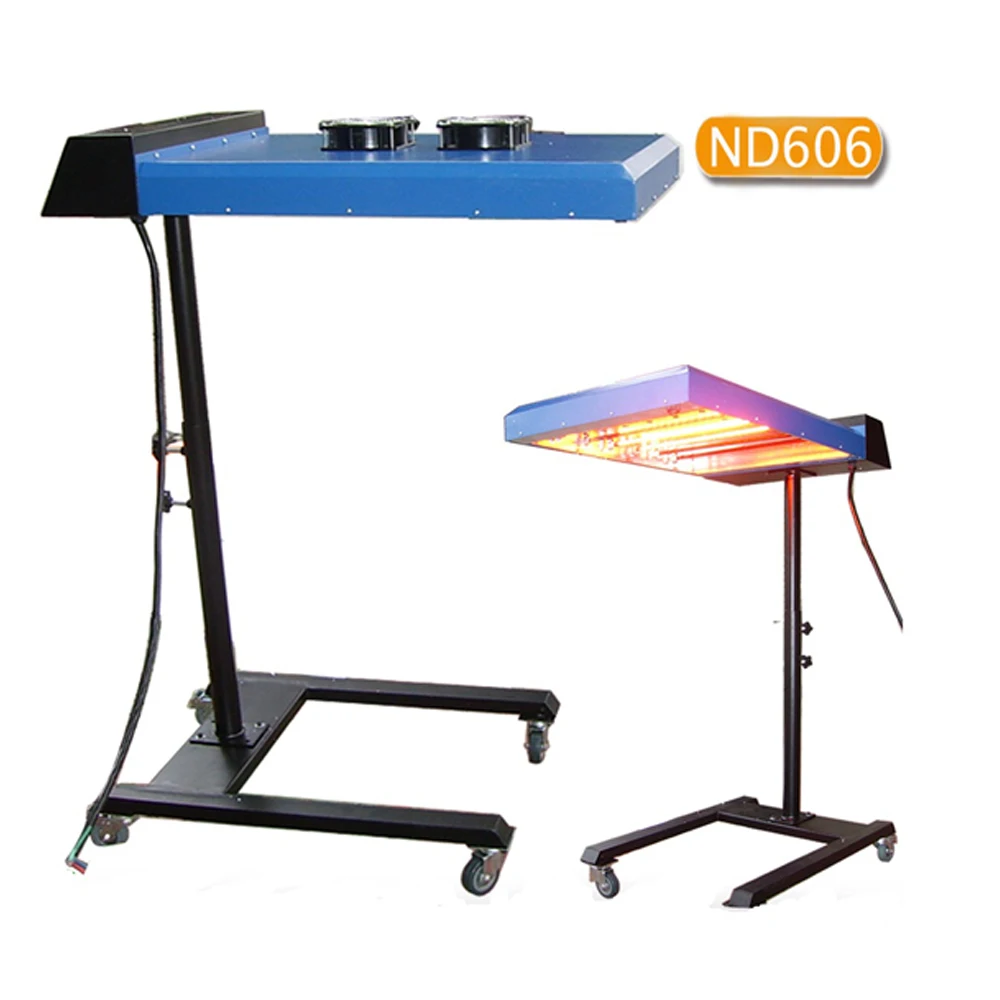

ND606 IR Automatic Flash Dryer With Sensor
• Power : 220 V 50 Hz, 6000W
• Full 20" x 24" (500 x 600mm) heating area
• Adjustable height floor stand ( from 750mm to 1200mm)
• IR lamp, heating temperature gone up quick
• Full 20" x 24" (500 x 600mm) heating area
• Adjustable height floor stand ( from 750mm to 1200mm)
• IR lamp, heating temperature gone up quick
• Packing : 1 strong carton box, 93*58*27cm, 0.15cbm
• Gross Weight : 30KGS
• It has 3 buttons to control 6 lights, each button controls 2 lights;
• with distance sensor, it would turn on automatically when the printed t shirt comes according to your setting time.
• Gross Weight : 30KGS
• It has 3 buttons to control 6 lights, each button controls 2 lights;
• with distance sensor, it would turn on automatically when the printed t shirt comes according to your setting time.

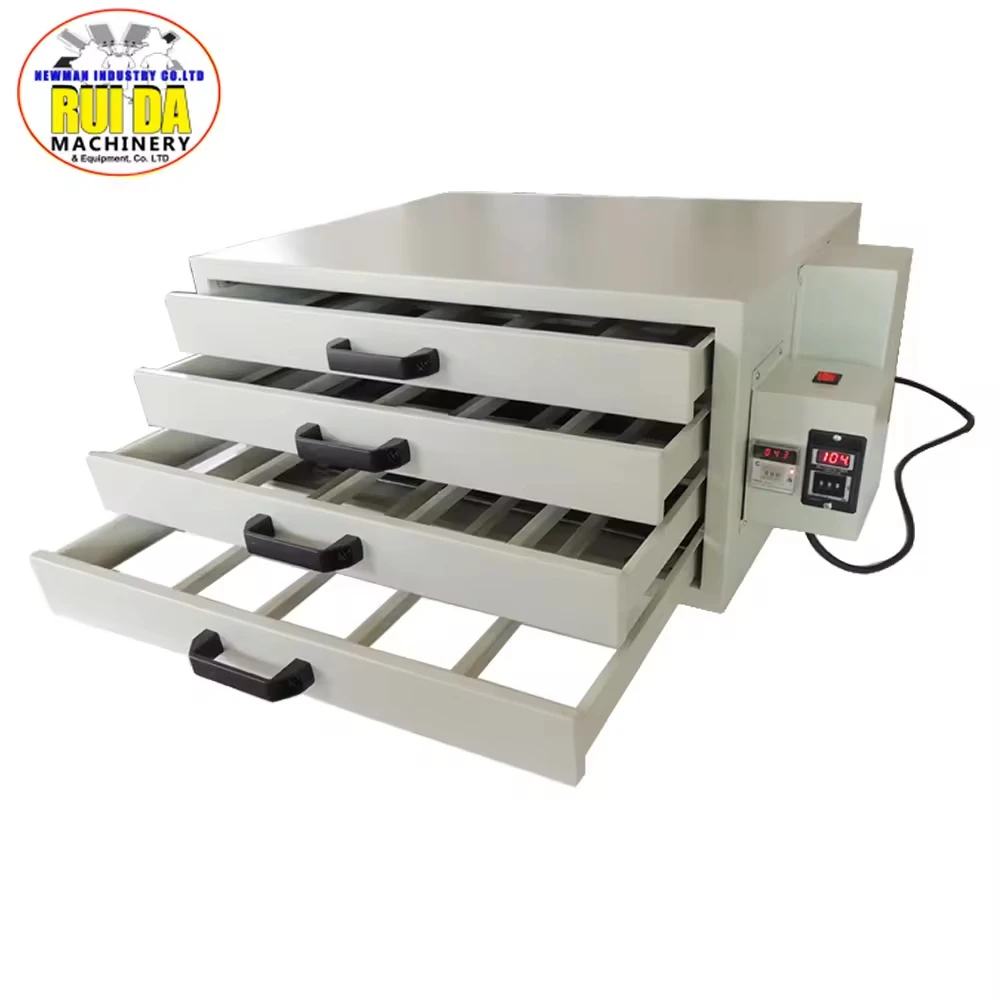

Drying Cabinet
• Power : 110V/220V, 2000W
• Max.screen plate drying quantity : 4pcs
• Max.frame size : 64*53*4.5cm
• Max.screen plate drying quantity : 4pcs
• Max.frame size : 64*53*4.5cm
• Package size: 98*68*43cm, 0.29cbm
• Gross weight: 56kg
• Gross weight: 56kg

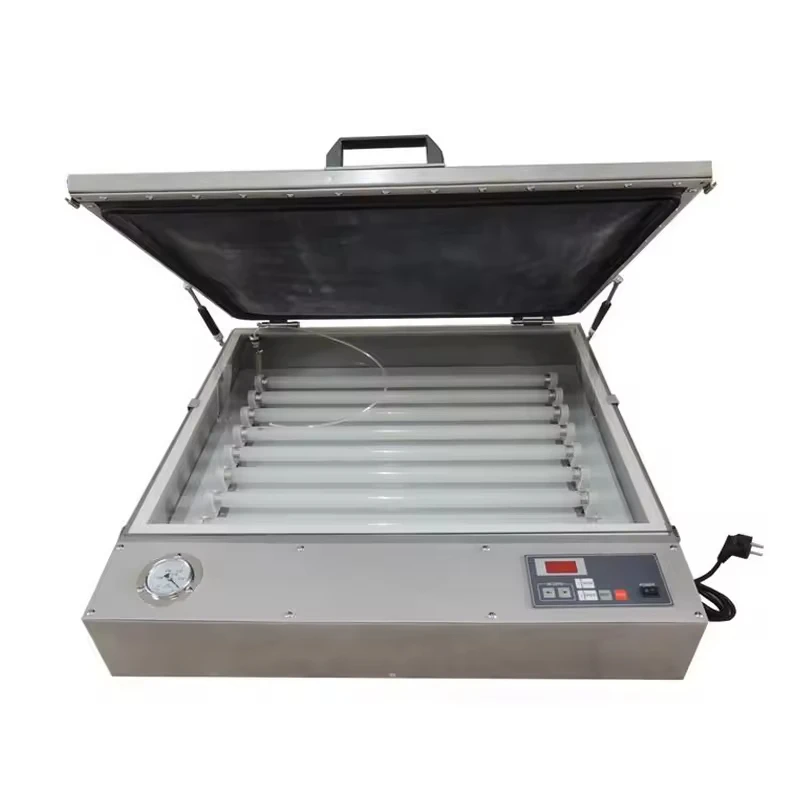

MD5060 New Vacuum Exposure Unit
• Power: 110V,220V/50Hz, 400W
• Light source:UV light
• Lamp power*amount: 20W*8pcs
• Digital display of exposure time setting
• Max.frame size : 500*600mm
• Light source:UV light
• Lamp power*amount: 20W*8pcs
• Digital display of exposure time setting
• Max.frame size : 500*600mm
• Package size: 88*81*24cm, 0.17cbm
• Gross weight: 43kg
• Gross weight: 43kg
NA104 Manual hand screen stretcher
• max area:60*60cm
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
1.HOW CAN I GET THE PRICE?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). lf youare very urgent to get the price, please email us or contact us in other ways so that we can offeryou a quote.
2. CAN I BUY SAMPLES PLACING ORDERS?-Yes.Please feel free to contact us.
3.WHAT IS YOUR LEAD TIME?-lt depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small qwantity,and about 30 days for large quantity.
4.WHAT IS YOUR PAYMENT TERM?-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.WHAT IS THE SHIPPING METHOD?-lt could be shipped by sea,by air or by expreSS(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.HOW DO YOU MAKE OUR BUSINESS LONG-TERM AND GOOD RELATIONSHIP?
-1.We keep good quality and competitive price to ensure our customers benefit ;.2. We respect every customer as our friend and we sincerely do business and make friends withthem,no matter where they come from.
