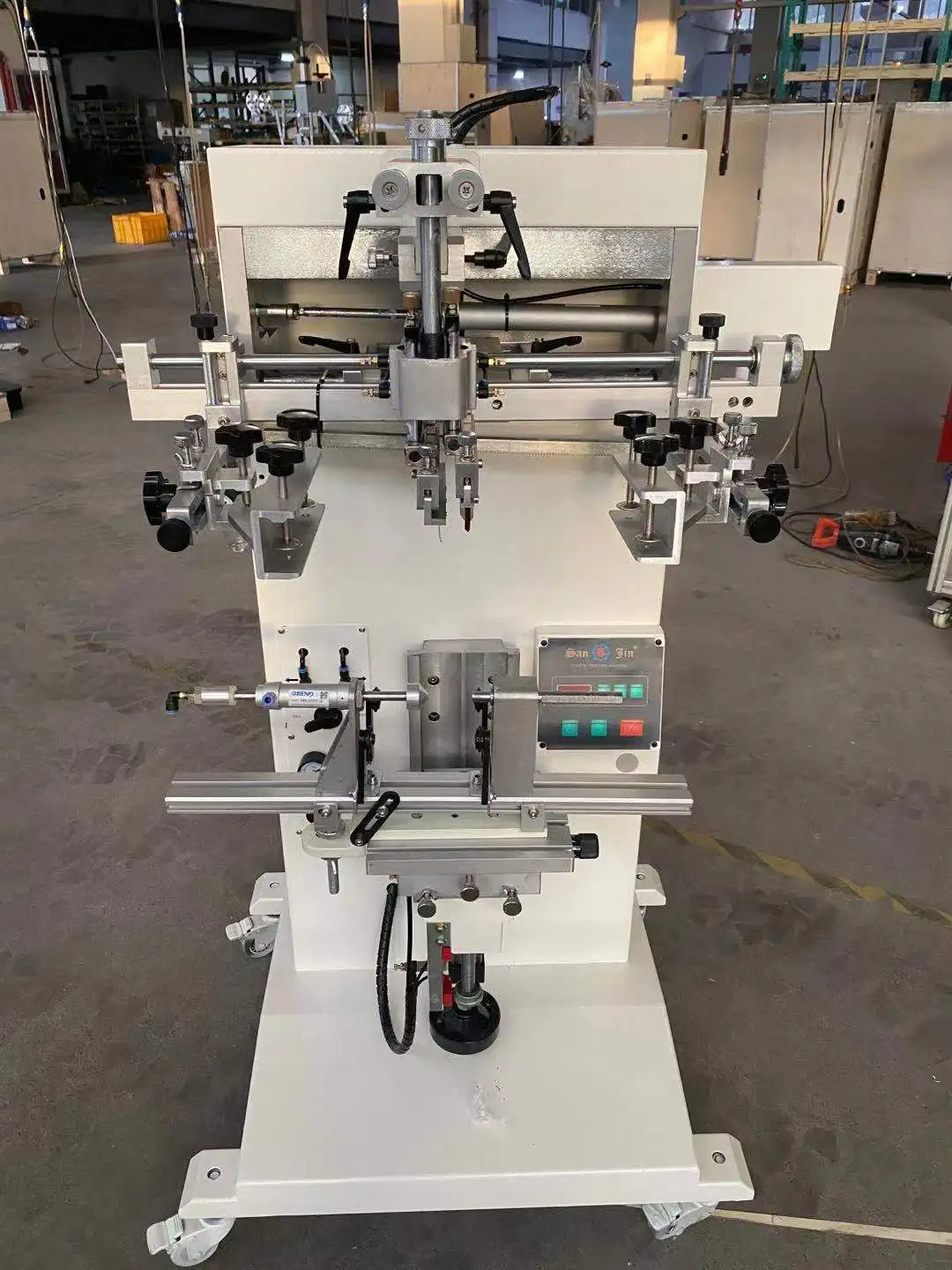

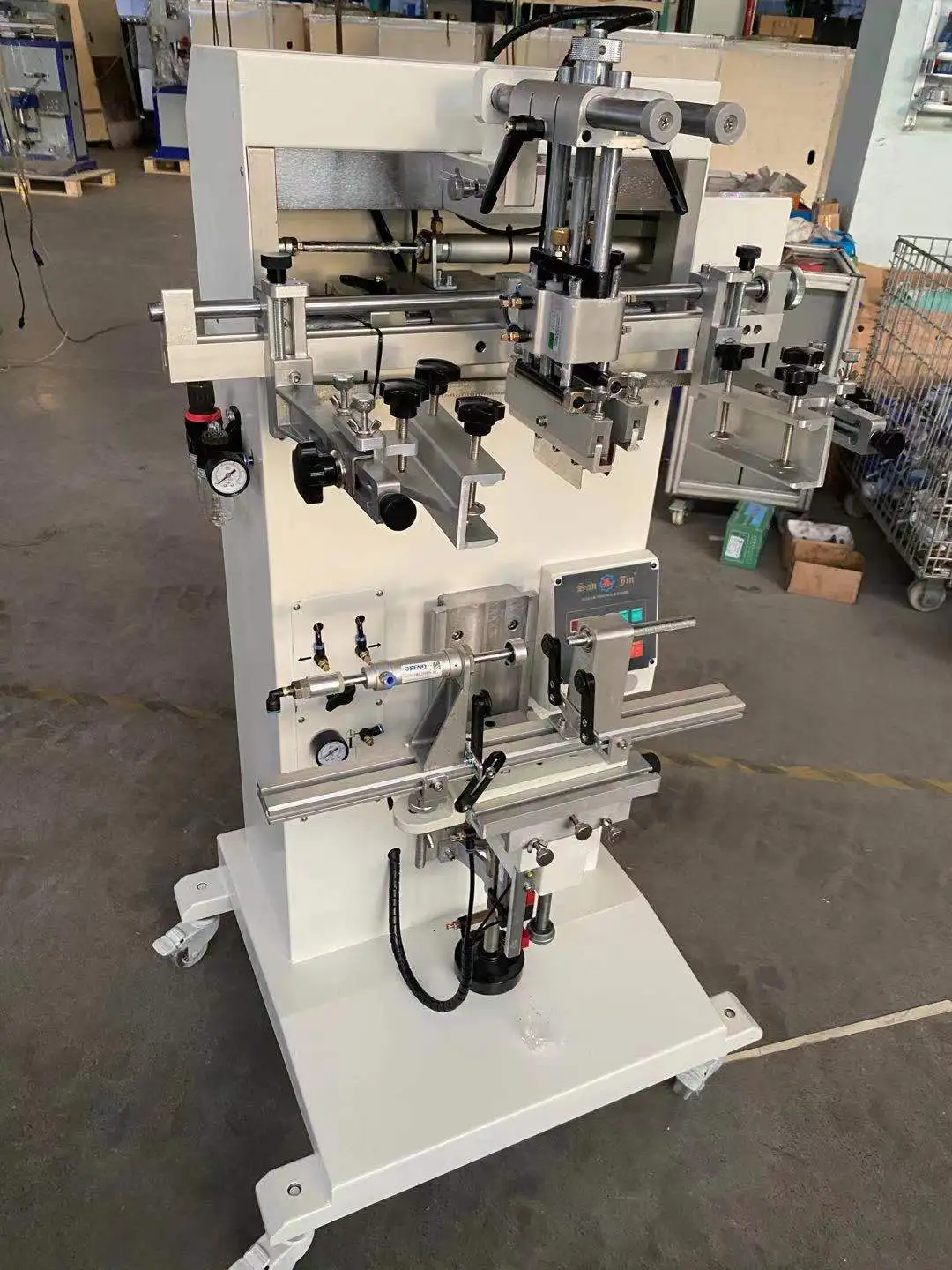

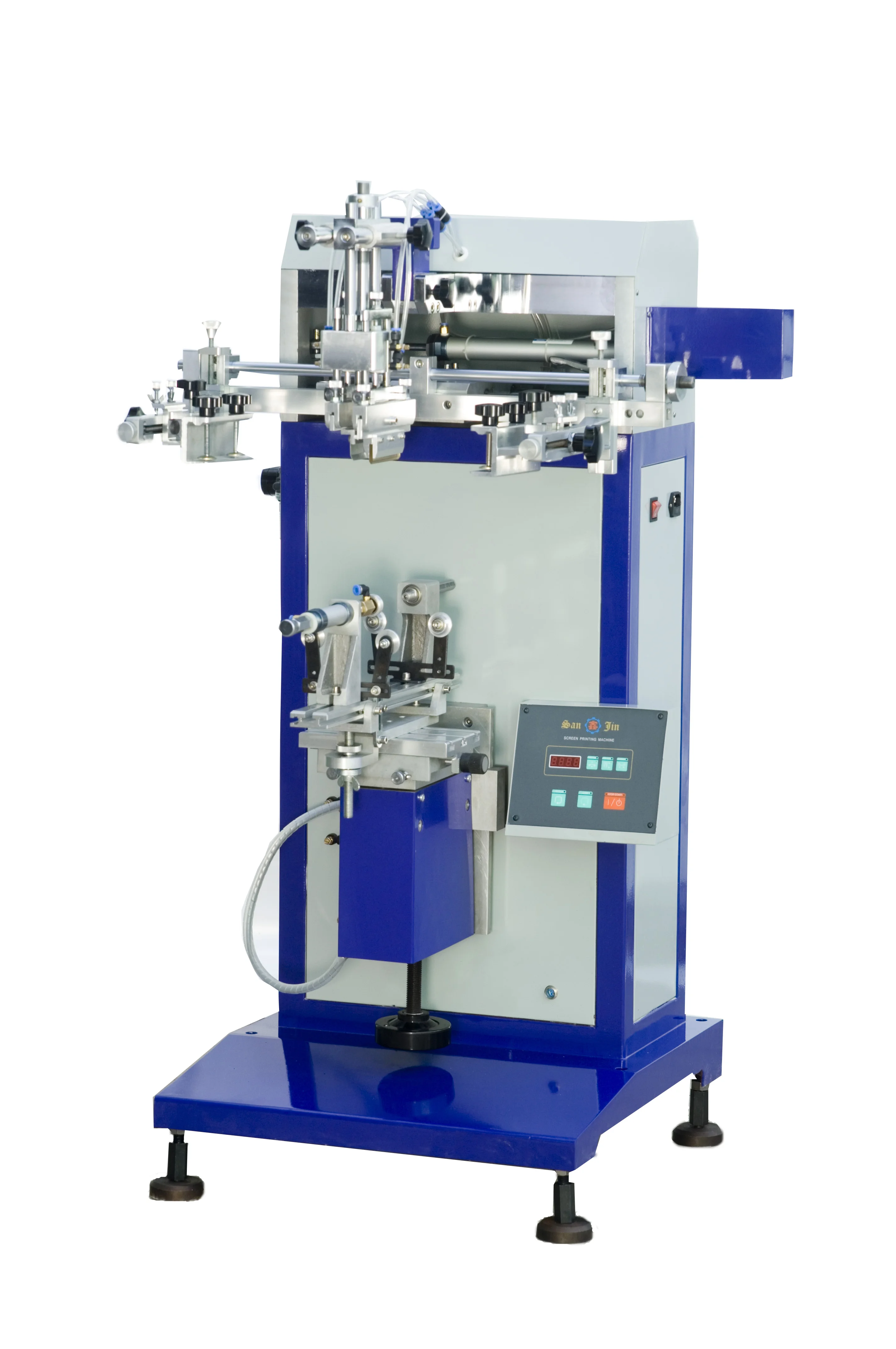

Ruida Semi Automatic One Color Cylindrical Silk Screen Printing Machine for Mug, Bottle, Plastic & Paper Cup
This versatile semi-automatic screen printing machine is expertly designed for applying single-color designs onto cylindrical items such as mugs, bottles, and various cup types. The machine features precise registration control and adjustable pressure settings to accommodate different product sizes and materials. Perfect for promotional product companies, custom gift shops, and manufacturing facilities, this screen printer combines efficiency with professional results.
- Overview
- Related Products
Product Description
Features ：
1. Controlled by Microcomputer.
2. Equipped with four-digit auto counter.
3. Round face and conical printing function.
4. Automatic scraping.
5. Adjustable printing stroke and printing speed.
6. Auto balance blade with the equalized printing pressure.

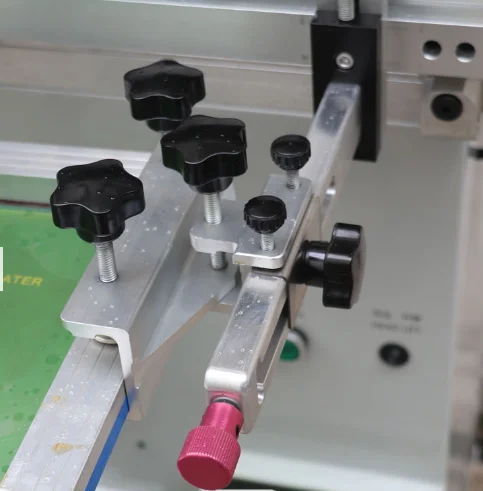

7. Workbench and frame holder can be adjust back and forth, left and right, up and down.
8. The blade can be independently lifted for replacement and cleaning.
1. Controlled by Microcomputer.
2. Equipped with four-digit auto counter.
3. Round face and conical printing function.
4. Automatic scraping.
5. Adjustable printing stroke and printing speed.
6. Auto balance blade with the equalized printing pressure.
7. Workbench and frame holder can be adjust back and forth, left and right, up and down.
8. The blade can be independently lifted for replacement and cleaning.
Specification
item |
value |
Maximum Frame Size |
L 430 * W 280mm |
Minimum Frame Size |
L 230 * W 140mm |
Workpiece Height |
200 mm |
Workpiece Length |
280 mm |
Workpiece Diameter |
Ф72 mm |
Workpiece Arc |
230 mm |
Workpiece Taper |
± 7 – 15 degree |
Printing Area |
L 230 * W 260 mm |
Printing Speed |
1000pcs/hr |
Air Consumption |
56L/min |
Air Pressure |
4-6 bar |
Vertical Stroke |
100 mm |
Horizontal Stroke |
250 mm |
Up/Down Worktable |
0-200 mm |
Power Supply |
220v/110V 50/60HZ |
Machine Dimension |
L 874 * W 830 * H 1320 mm |
Package Dimension |
L 800 * W 940 * H 1340 mm |
Net Weight |
92 kgs |
Gross Weight |
124 kgs |
