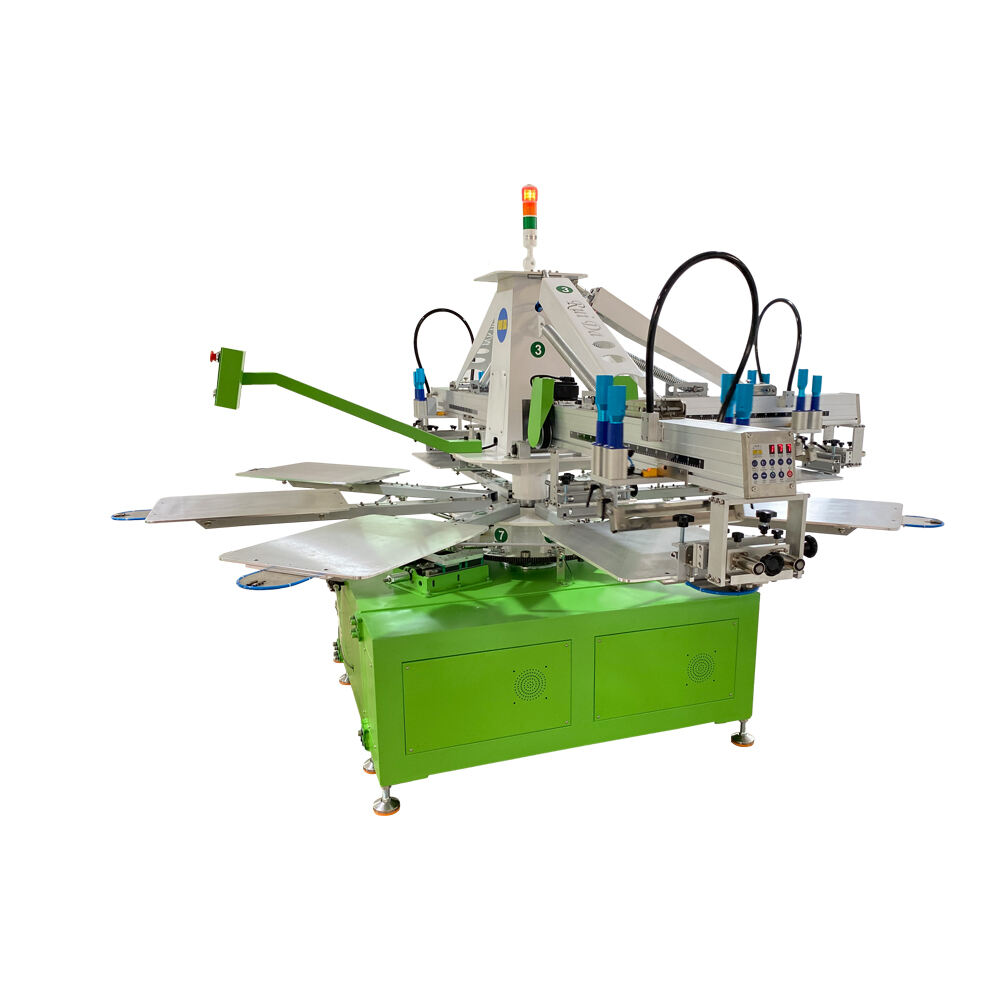

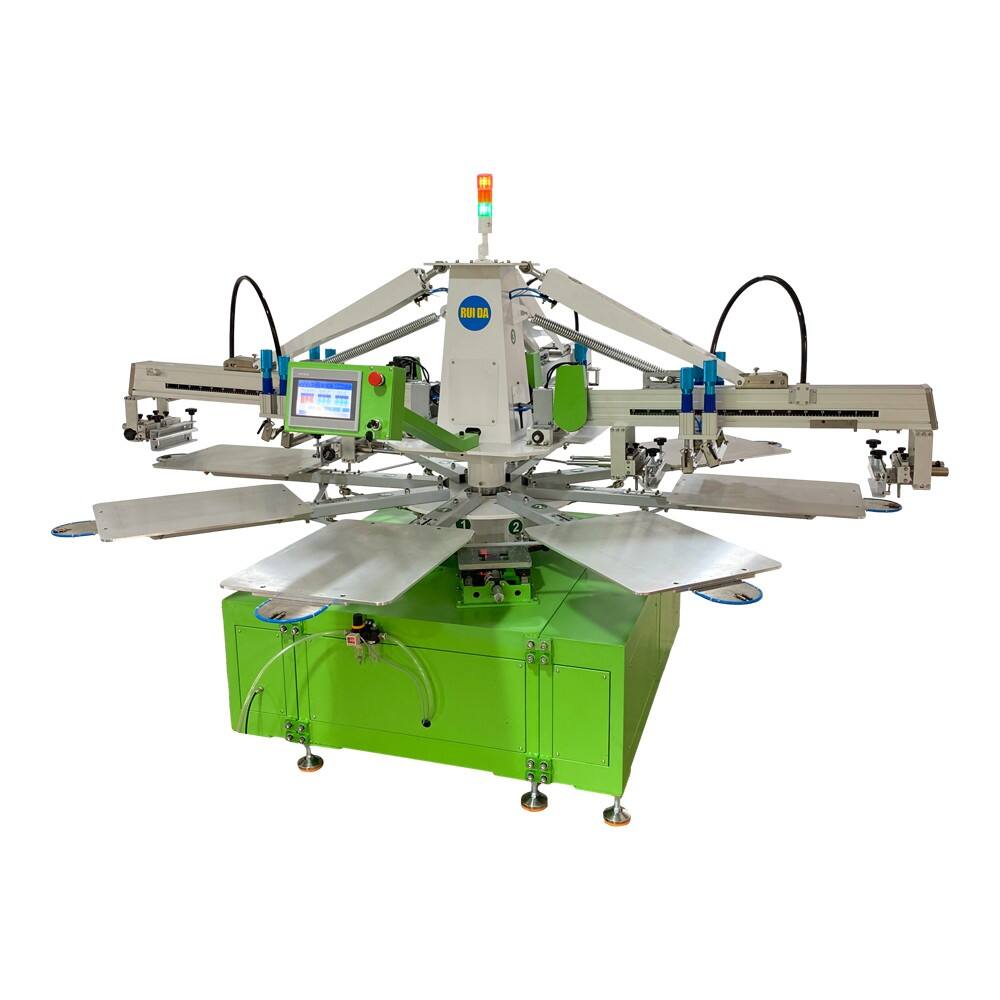

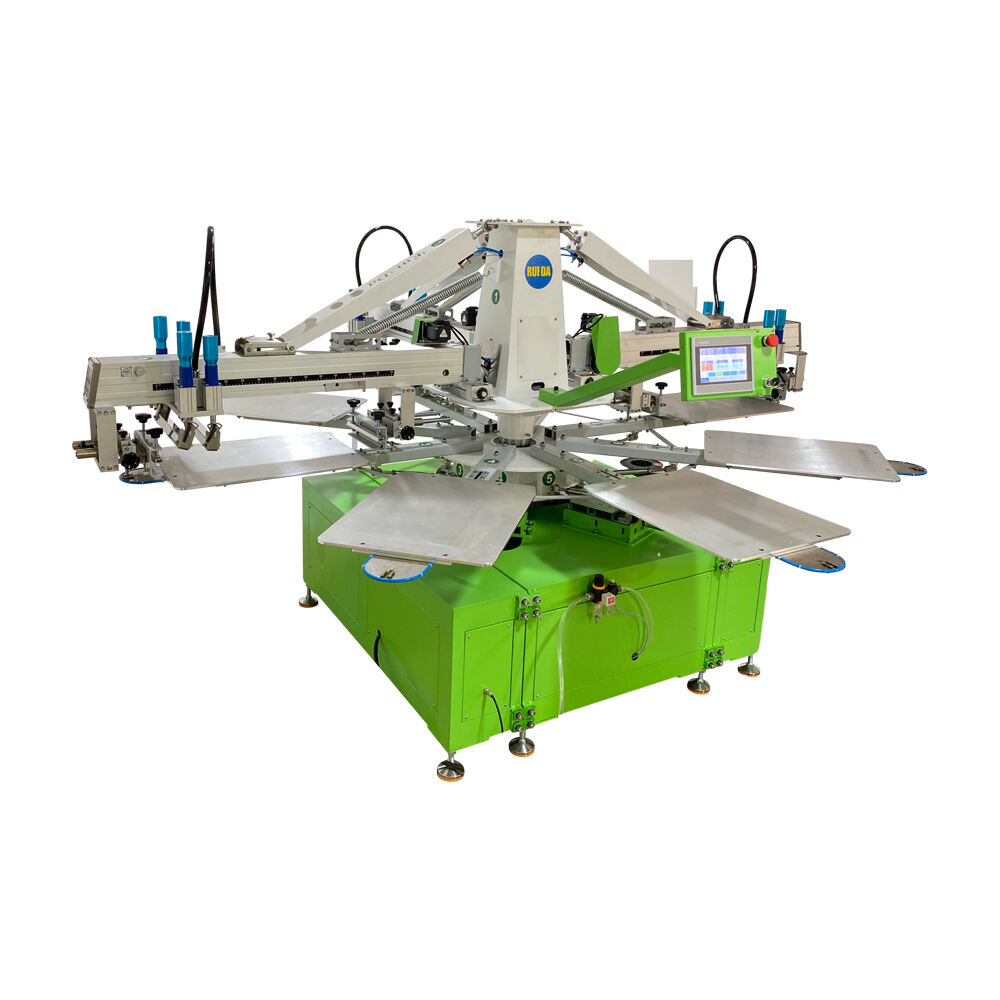

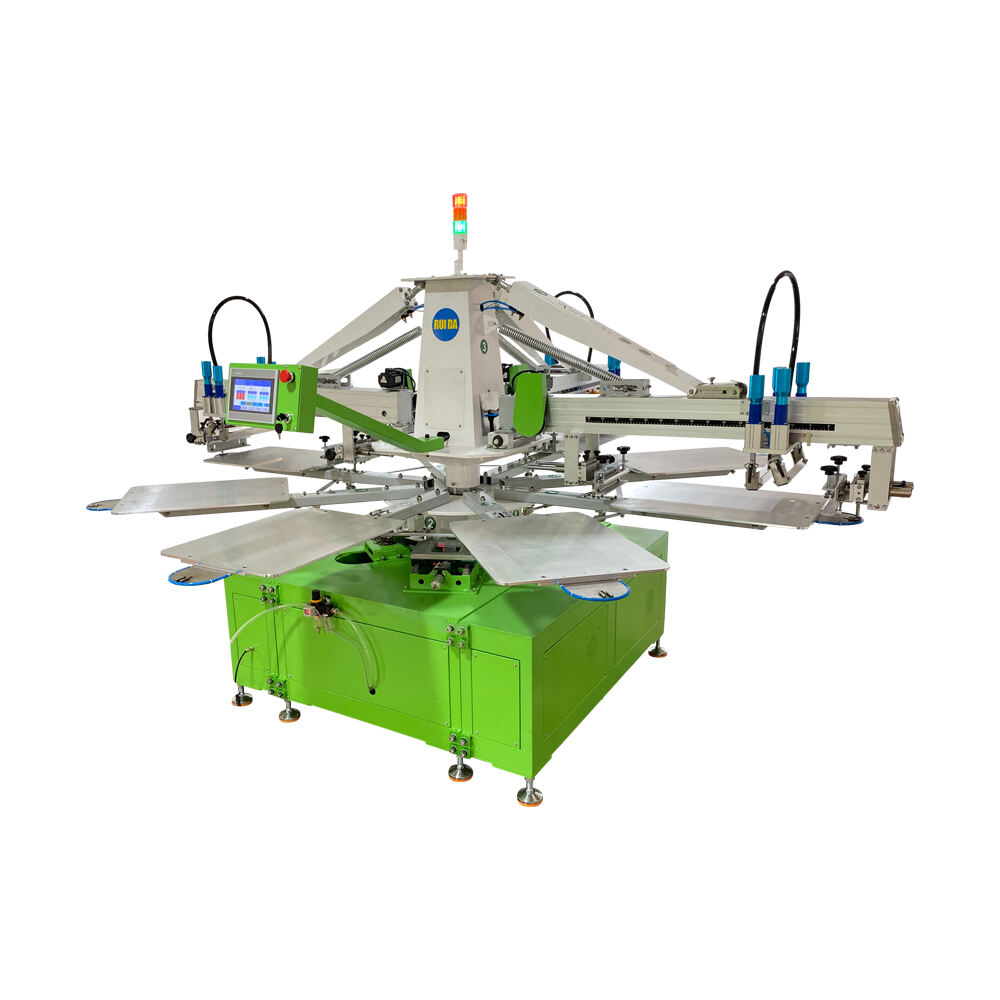

DGRUIDA NM3080 Full Set 3-Color 8-Station Automatic Silk Screen Printing Machine – High-Precision T-Shirt Printer
The DGRUIDA NM3080 Full Set 3-Color 8-Station Automatic Silk Screen Printing Machine is a high-efficiency, fully automatic screen printing solution designed for textile applications. Engineered with advanced PLC control and a powerful motor, this machine ensures high-speed, precise, and consistent printing on garments like T-shirts, hoodies, and fabric materials. Ideal for small to large-scale production, it offers seamless operation, minimal manual intervention, and maximum output efficiency.
- Overview
- Related Products
Key Features & Benefits
● Fully Automatic Operation – Reduces labor costs and increases productivity with automated precision printing.
● 3-Color, 8-Station Design – Enables multi-color printing with seamless workflow, improving production efficiency.
● High-Speed Performance – Prints up to 1380 pieces per hour, ensuring fast turnaround times.
● Precision Printing – Achieves an accuracy of ±0.05mm, ensuring sharp and clear prints every time.
● Adjustable Printing Area – 400×600mm printing area accommodates a variety of garment sizes.
● Durable & Robust Construction – Designed with a strong metal frame for long-lasting industrial use.
● Energy-Efficient & Low Maintenance – Optimized power consumption while maintaining high performance.
Technical Specifications
| Brand Name | RUIDA |
| Model | NM3080 |
| Printing Application | Textile Screen Printing (T-Shirts, Fabrics, Hoodies, etc.) |
| Printing Stations | 8 |
| Printing Colors | 3 |
| Max Printing Area | 400×600mm |
| Max Frame Size | 500×700mm |
| Table Size | 450×600mm |
| Printing Speed | 1380 pcs/hr |
| Printing Accuracy | ±0.05mm |
| Power Supply | 220V/380V, 50Hz |
| Power Consumption (Without Dryer) | 2.2KW |
| Flash Dryer Power | 6KW |
| Air Pressure Specification | 0.6Mpa |
| Print Head Power Driver | 400W (per servo motor) |
| Machine Dimensions | 2720×2720×2000mm |
| Machine Diameter | 3060mm |
| Weight | 1650kg |
Additional Equipment Included
● ND2565 Tunnel Dryer Machine – 150×65cm heating area for efficient ink curing.
● MD800-LED Vacuum Exposure Unit – Max frame size 600×900mm for precise stencil creation.
● NA105 Manual Screen Stretcher – Supports 90×120cm frame size for easy screen preparation.
● Screen Printing Drying Cabinet – Fits max frame size 700×1000mm for rapid drying.
● Consumables – Compatible with Plastisol ink and other textile screen printing supplies.
Why Choose the DGRUIDA NM3080 Automatic Silk Screen Printing Machine?
✔ Boost Productivity: Fully automated system reduces human intervention and speeds up production.
✔ Superior Print Quality: High-precision mechanics ensure vibrant, sharp, and detailed prints.
✔ Versatile & Scalable: Suitable for small, medium, and large-scale garment printing businesses.
✔ User-Friendly Operation: PLC touch control system for easy setup, monitoring, and adjustments.
✔ Durable & Reliable: Built for long-term industrial use with minimal maintenance requirements.
Perfect For:
● T-Shirt Printing Businesses – Scale up your production with efficiency and accuracy.
● Custom Apparel Brands – Print high-quality, multi-color designs on various textiles.
● Garment Factories – Automate bulk printing with minimal downtime.
● Screen Printing Workshops – Ideal for professionals looking for precision and consistency.
● Upgrade Your Screen Printing Business Today! Order the DGRUIDA NM3080 Automatic Silk Screen Printing Machine Now!
