Screen Drying Cabinet

Home >  Products >  Screen Drying Cabinet

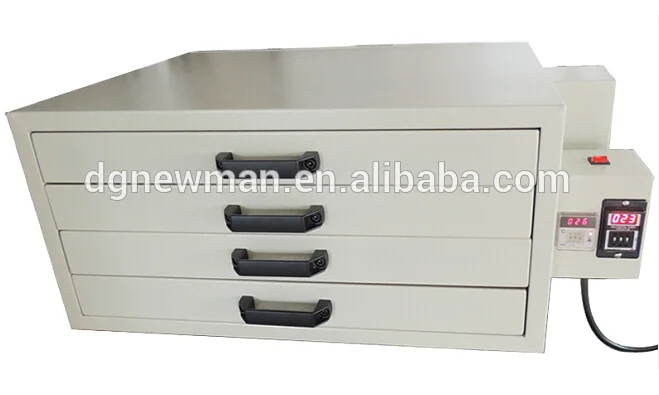

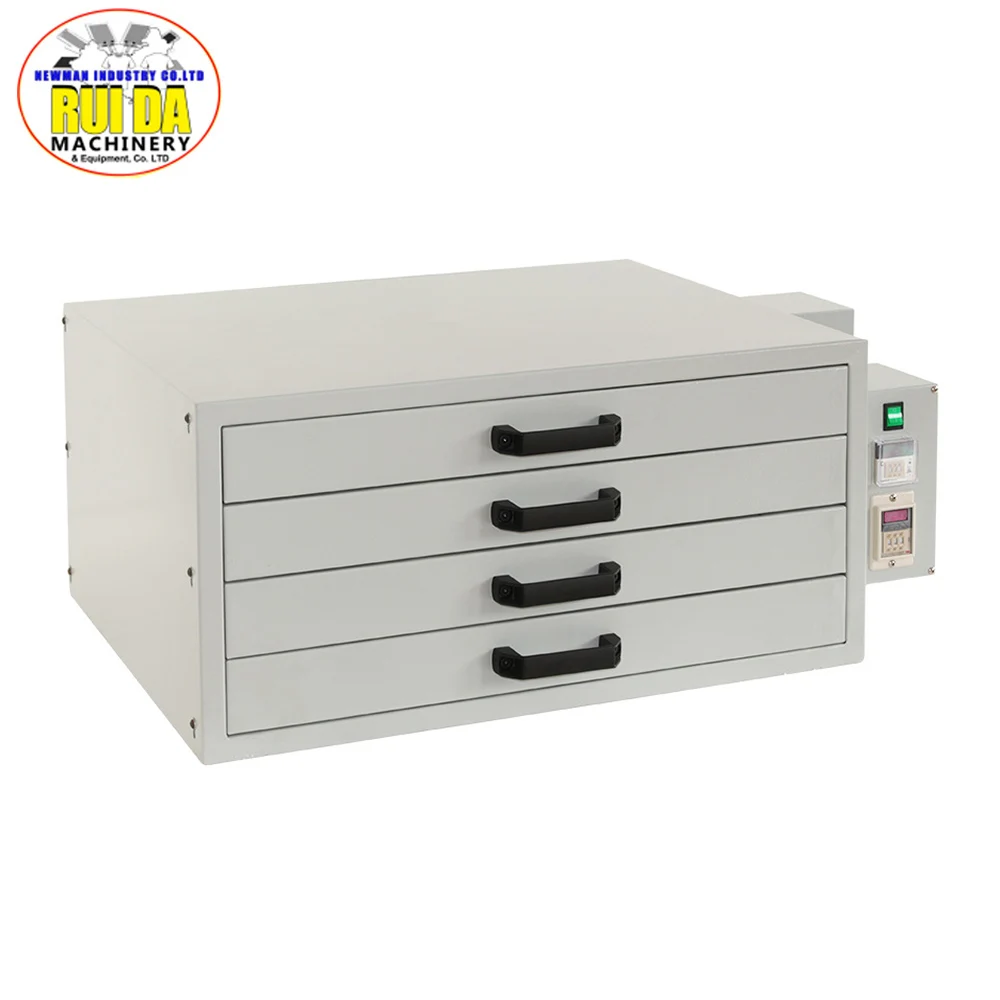

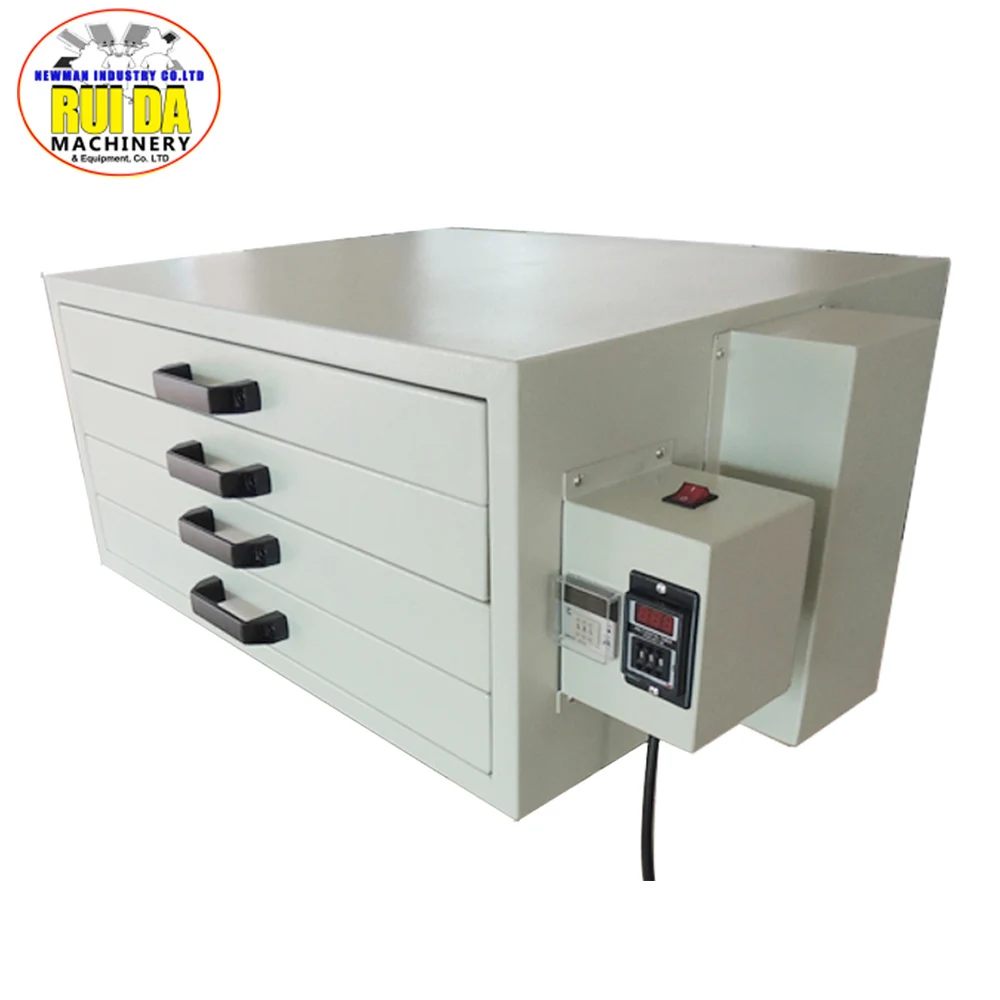

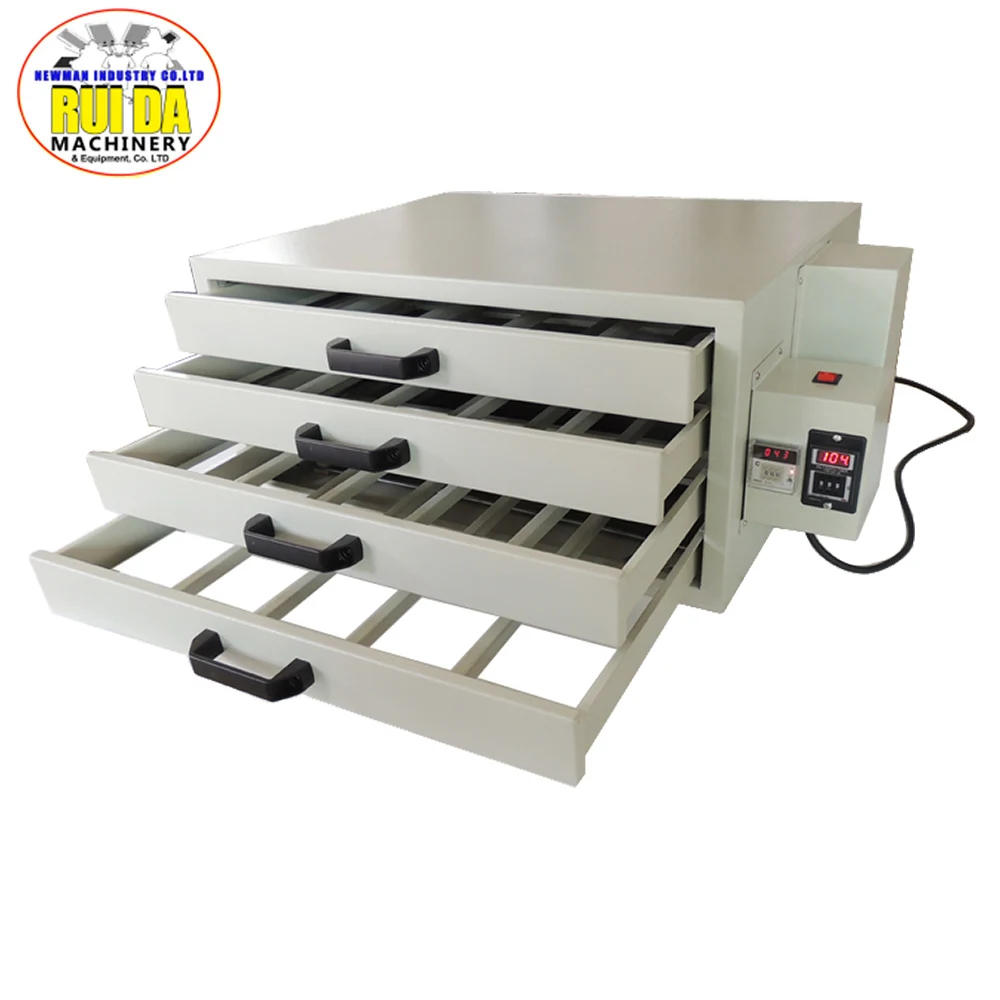

Dgruida Drying Cabinet Screen Printing Drying Oven 4 Layer Screen Frame With Mesh Drying Cabinet Machine

The Dgruida 4-Layer Screen Frame Drying Cabinet is a professional-grade solution for screen printing workshops and production facilities.  Built with durable materials and precise temperature control, this machine significantly reduces drying time compared to air-drying methods, helping to streamline your production workflow.  Perfect for both small print shops and larger commercial operations, this drying cabinet combines reliability, convenience, and professional-quality results in one essential piece of equipment.

  • Overview
  • Related Products

Screen printing plate frame drying oven cabinet

Application The machine is important equipment in plate-macking,
it is used to dry the screen plate after emulsion coated or after washing screen plate.
Feature
1 Intelligent temperature controller,the temperture can be adjusted freely, the max.temperature is 75℃.
2 It's smart cabinet is of good sealing.
3 Adopting newest heat plate with double- heat function,more efficiency
4 High qulity plate to make temperature of each tray even and correct.
Parameter
1 Tray: 4 pcs
2 Max working area: 64*53*4.5cm
3 Max temperature:75℃
4 Voltage: 220V
5 Power: 2000W
6 Gross Weight: 56 kg
7 Package size: 98*68*43cm

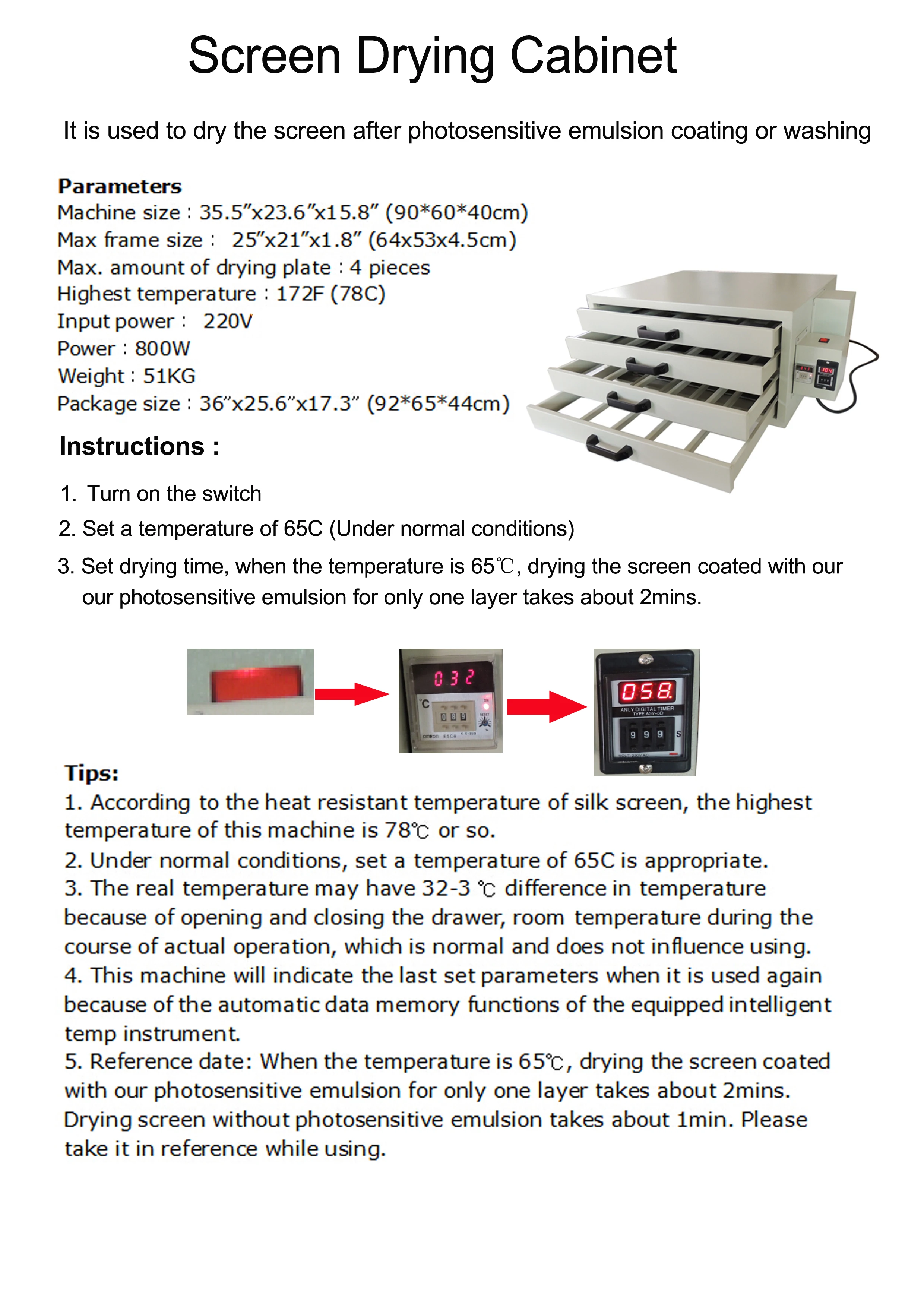

Screen drying cabinet is an important tool in screen printing. Several procedures need a screen drying cabinet like degreasing screen ,coating emulsion, coating hardener, washout and so on.This machine gives up traditional heating pipe technique to adopt advanced and safe flate carbon fiber heating plate. Professional design, energy saving, safe and easy manipulation, used for drying screen ,shading light, proofing dust and so on, suitable for drying screens below 25”x21”(64x53cm).

DC03

drying cabinet 4drying cabinet1

Features

1.Intelligent temp controlling system. Its temp can be adjusted according to the heat resistance of screen mesh. When the room temp is 77℉ (25℃), its highest temp can reach 172℉ (78℃).

2.The inside installed axial flow fan makes the hot air in circulation, which guarantees an equal temp in cabinet and can improve drying efficiency meanwhile. The axial flow fan (specially used for large computer equipment) can normally be used for about 20,000 hours. It usually takes 2-4 minutes to well dry the screens coated with the photosensitive emulsion.

3.It adopts hierarchical (100 levels) temp-adjusting system; users can adjust temp according to ambient temperature and different materials. It can operate according to your set temp next time because of its automatic memorizing function.

4.It is wholly coated without corrosion and dandification. The drawer type is flexible but perfect tight. All kinds of screens can be placed and moved flatly with printed side up to guarantee the adhesive layer smooth.

5.The heating plates are adopted the newest blade and unit type, with double-heat, low power and high heat efficiency. At the same time, it guarantees the temperature of machine even to make the temperature of each floor even and accurate.

6.Total power is 800W.compared with traditional 3000-8000W cabinet, this machine can save power 70-90%.

7.Constructed by four layers of cabinets,4 frames below 25”x21”(64x53) can be held at the same time, saving time, improving efficiency.

8.Inner and out sides all adopts electrostatic spraying, professional outlook, easy to clean and no rust.

Instructions

1. Turn on the switch; then the machine will indicate “F000” and the air fan works automatically.

2. Press “+” until to “F070’

3. Place thermometer probe on the third drawer; Check the temp after five minutes.

4. If the temp is not right in your need, you can press “+” or “-” to increase or reduce 10 grades; Awaiting five minutes then check the temp.

5. After adjusting the available temp, the machine will automatically save and memory your set data.

6. It is normal that the “F” or “O” displays alternately when the machine is working.

Reference data: When the room temperature is 77F (25C) or so, close and seal all drawers, ten minutes later after you have set, the temp indicates

1. Set “F050”, the temp is about 93F (34C)

2. Set “F060”, the temp is about 104F (40C)

3. Set “F070”, the temp is about 115F (46C)

4. Set “F080”, the temp is about 126F (52C)

5. Set “F090”, the temp is about 140F (60C)

6. Set “F100”, the temp is about 167F (75C)

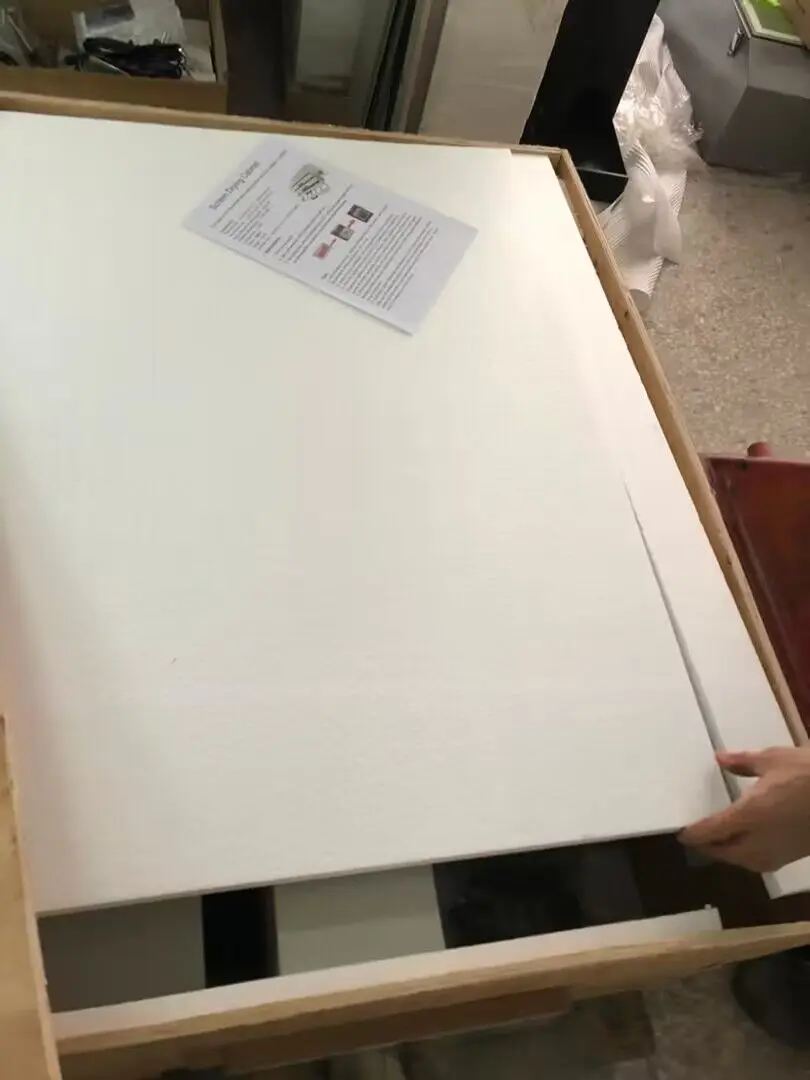

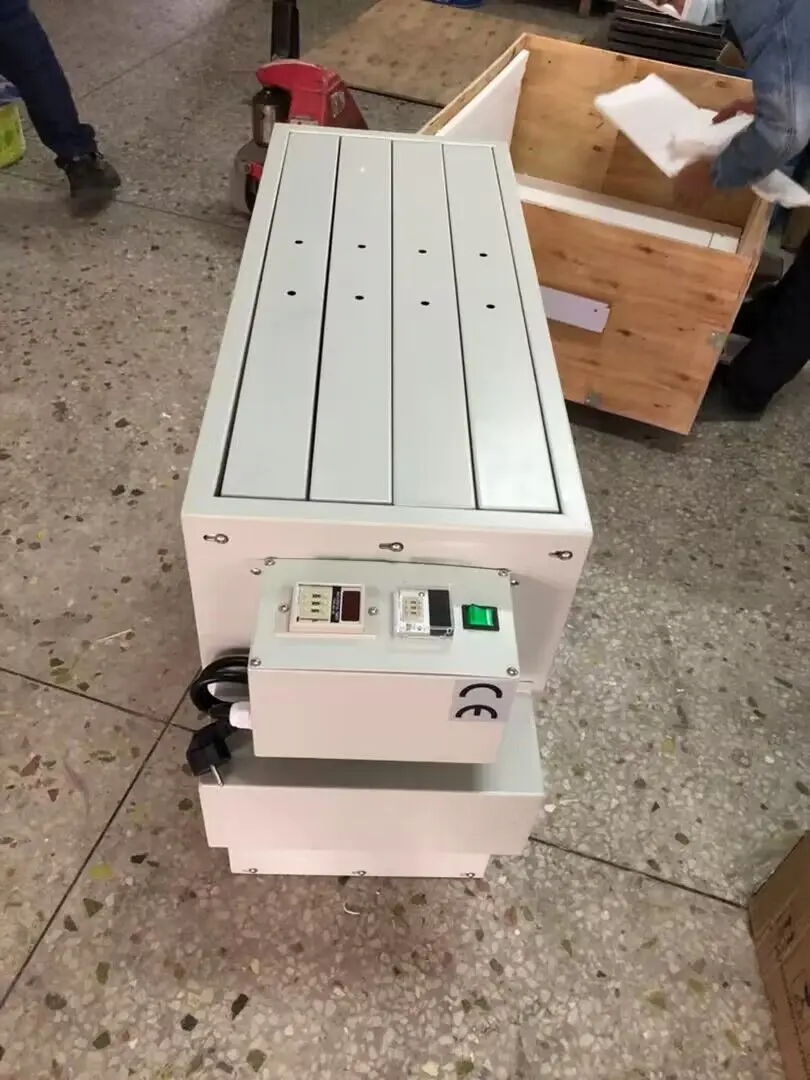

Packaging & Shipping

Strong foam and plywood box

QQ20230715144447

QQ20230715144431

Good Reviews

Detail-06 (1).jpgDetail-07 (1).jpg

Our Services

1. 24 hours online & Quick response.
2. Pick up to our factory come and back.
3. Tens of thousands of designs for you to choose from.
4. Short production lead time and delivery.
5. Quality inspecting.
6. We have Product Development Team to develop the new products to meet your need.
7. We have Design Development Team to develop the new designs, customized designs
are welcomed.
8. For the packing and loading, we also accept customized requirement.
9. When clients receive the goods, if any quality problems, pls contact us freely. We will have
a discuss about it to make you satisfied. And we never let it happen next time.
Company Profile

Detail-08 (1).jpg

Production Process

Detail-09 (1).jpgDetail-09.jpgDetail-10 (1).jpg

Certifications

Detail-11 (1).jpg

Exhibition


Package & Delivery


FAQ

1.HOW CAN I GET THE PRICE?

-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). lf youare very urgent to get the price, please email us or contact us in other ways so that we can offeryou a quote.
2. CAN I BUY SAMPLES PLACING ORDERS?
-Yes.Please feel free to contact us.
3.WHAT IS YOUR LEAD TIME?
-lt depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small qwantity,and about 30 days for large quantity.
4.WHAT IS YOUR PAYMENT TERM?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.WHAT IS THE SHIPPING METHOD?
-lt could be shipped by sea,by air or by expreSS(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.HOW DO YOU MAKE OUR BUSINESS LONG-TERM AND GOOD RELATIONSHIP?
-1.We keep good quality and competitive price to ensure our customers benefit ;.2. We respect every customer as our friend and we sincerely do business and make friends withthem,no matter where they come from.
